Fairing brace
Air cleaner
;;
Air inlet port
Air suction hose No. 3
... Air suction hose No. 1
Air suction reed valve
Steering head pipe
\
Air switching
valve
U~~f--+--Air suction
reed valve
Cylinder
--<0-----.
Exhaust port ~---t-=~~r------'
Vacuum ___
hose
To
No.3 cylinder &
No.4 cylinder
To No.1 cylinder &
No. 2 cylinder
5-5 EMISSION CONTROL INFORMATION

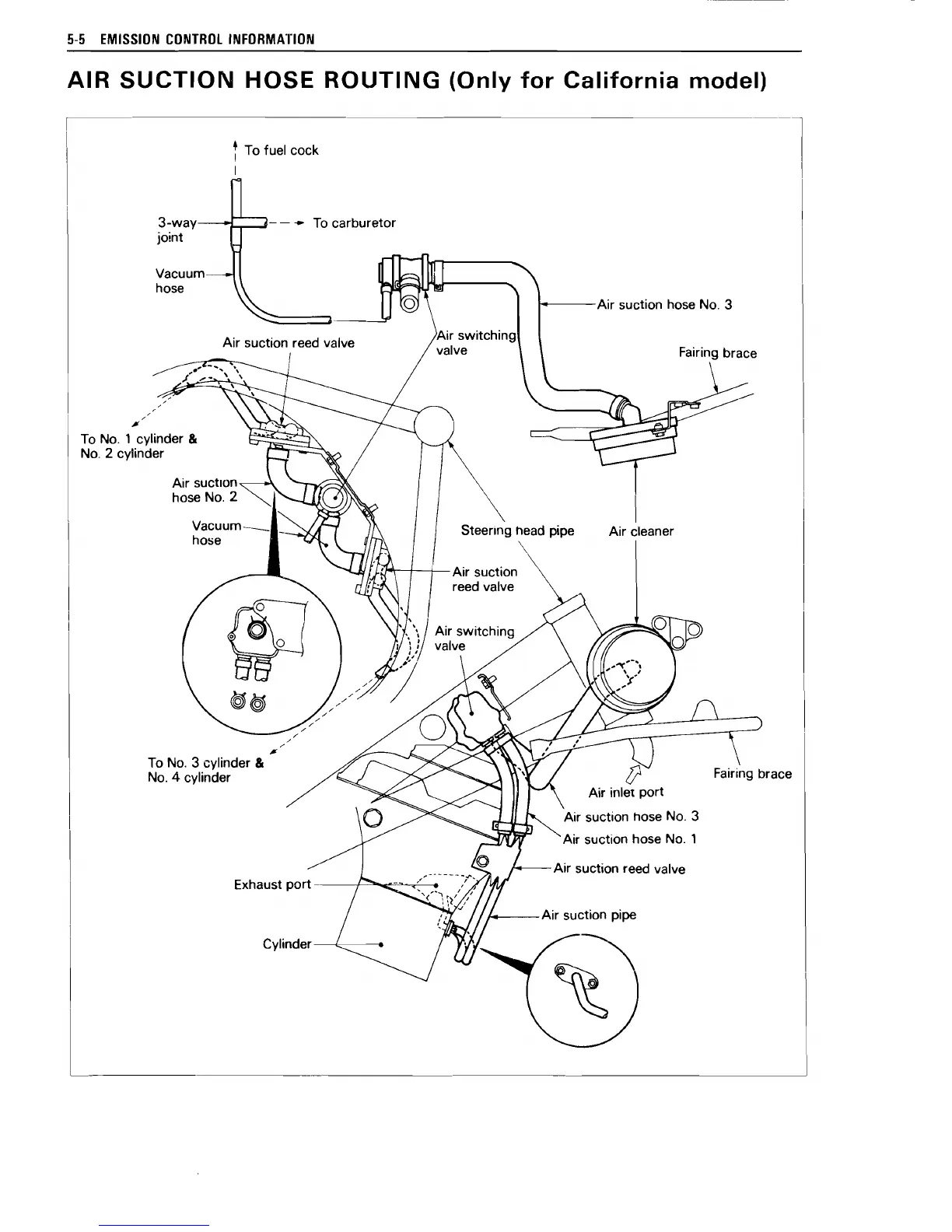

AIR SUCTION HOSE ROUTING (Only for California model)
i To fuel cock
I
3-way--[=~- -.. To carburetor
joint
Vacuum
hose
t---Air suction hose NO.3

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
