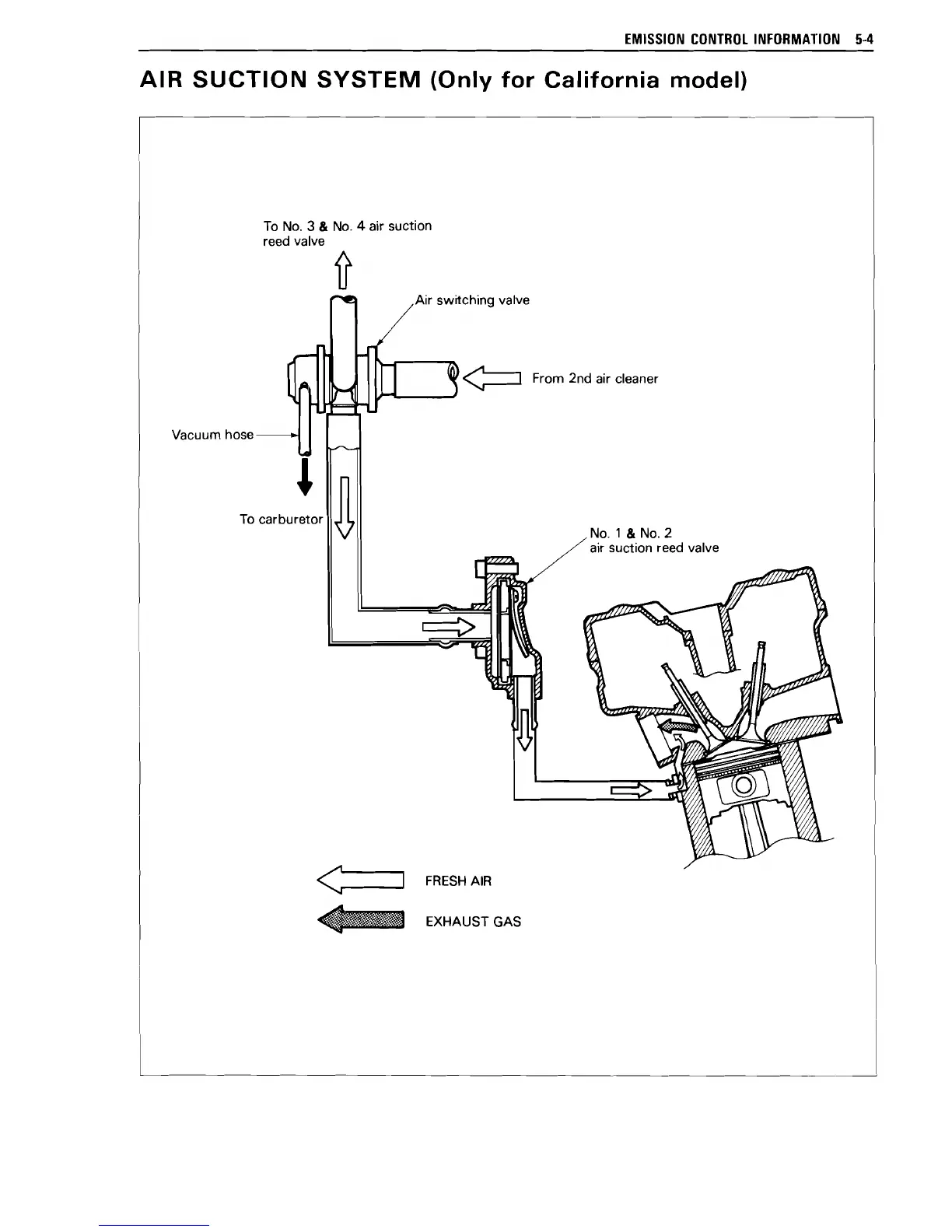

EMISSION
CONTROL
INFORMATION
5-4
AIR
SUCTION
SYSTEM
(Only
for
California
model)
Vacuum
hose------.j
II'"""IL....-_~
To
No.3
&
No.4
air suction
reed valve
Air switching valve
¢:::J
From 2nd air cleaner
No.1 &
No.2
air suction reed valve
FRESH
AIR
< I
~
EXHAUST GAS

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki Katana 1100 and is the answer not in the manual?

Suzuki Katana 1100 Specifications

General IconGeneral
Displacement1074 cc
Bore x Stroke72.0 mm x 66.0 mm
Compression Ratio9.5:1
IgnitionElectronic ignition (Transistorized)
Front SuspensionTelescopic, coil spring, oil damped
Rear BrakesSingle hydraulic disc
Wheelbase1520 mm
StartingElectric
Final DriveChain
Height1170 mm
Transmission5-speed
Rear Suspensioncoil spring, oil damped
Front BrakesDual hydraulic disc
Fuel Capacity19 liters
Max Power111 hp @ 8, 500 rpm
Width750 mm
