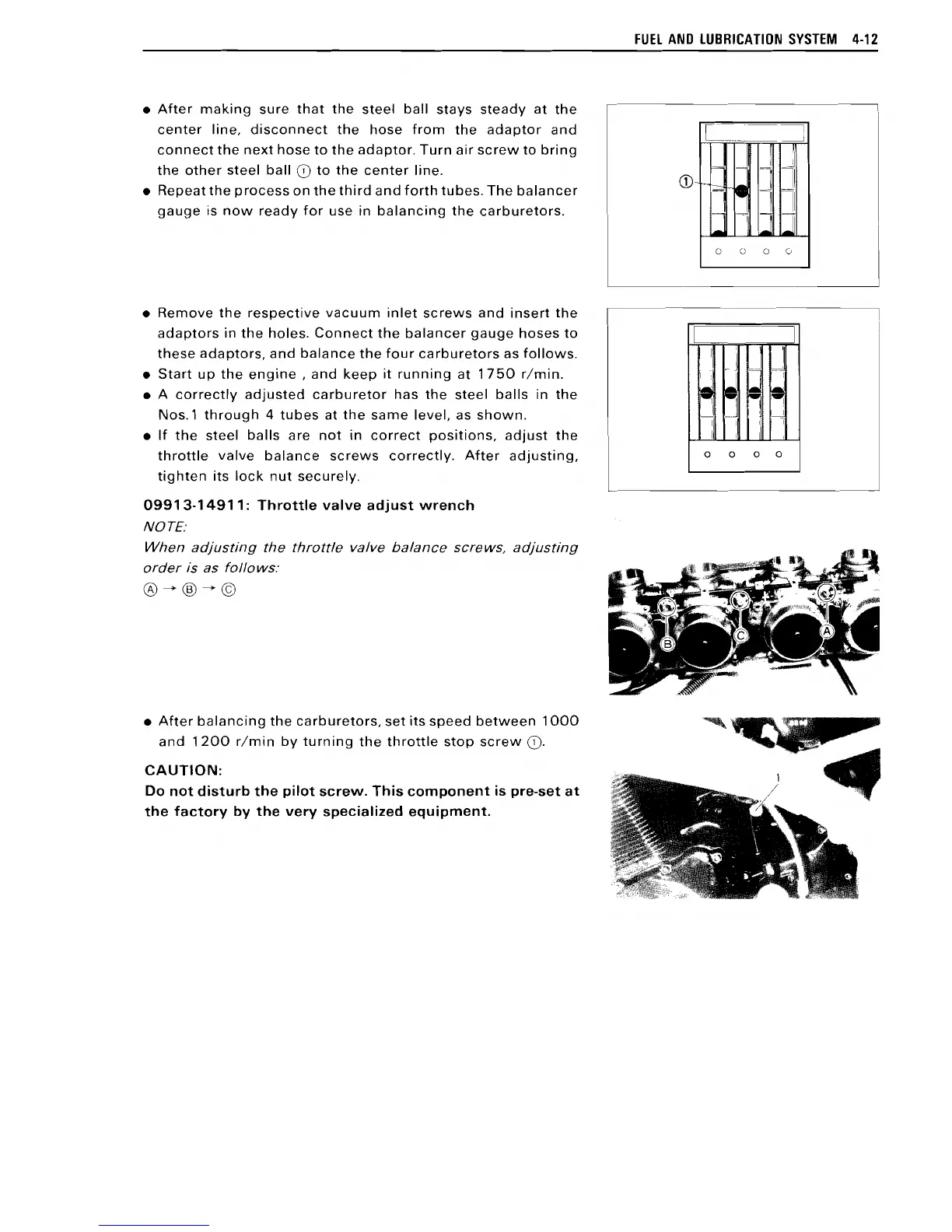

FUEl AND LUBRICATION SYSTEM 4-12
• After making sure that the steel ball stays steady at the
center line, disconnect the hose from the adaptor and
connect the next hose to the adaptor. Turn air screw to bring
the other steel ball CD to the center line.
• Repeat the process on the third and forth tubes. The balancer
gauge is now ready for use in balancing the carburetors.
• Remove the respective vacuum inlet screws and insert the
adaptors in the holes. Connect the balancer gauge hoses to
these adaptors, and balance the four carburetors as follows.
• Start up the engine, and keep it running at 1750 r/min.
• A correctly adjusted carburetor has the steel balls in the
Nos.1 through 4 tubes at the same level, as shown.
• If the steel balls are not in correct positions, adjust the
throttle valve balance screws correctly. After adjusting,
l
tighten its lock nut securely.
09913-14911: Throttle valve adjust wrench
NOTE:
When adjusting the throttle valve balance screws, adjusting
order is as follows:
@---+@---+©
• After balancing the carburetors, set its speed between 1000
and 1200 r/min by turning the throttle stop screw CD.
CAUTION:
Do not disturb the pilot screw. This component is pre-set at
the factory by the very specialized equipment.
---,
c
~
---
---.J
r
-
I
J
=
~
]
-ll
J
II
,~
\
L. .-l .-l
0
0
0 0
CD
L_
=
I
I
•
I I
:1
1
I
~
-~
I
I
1
~~-
=j
1
1
P,
~,
I
Iii
0 0 0
0

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
