Suzuki Katana 1100 User Manual

ELECTRICAL SYSTEM 6-6

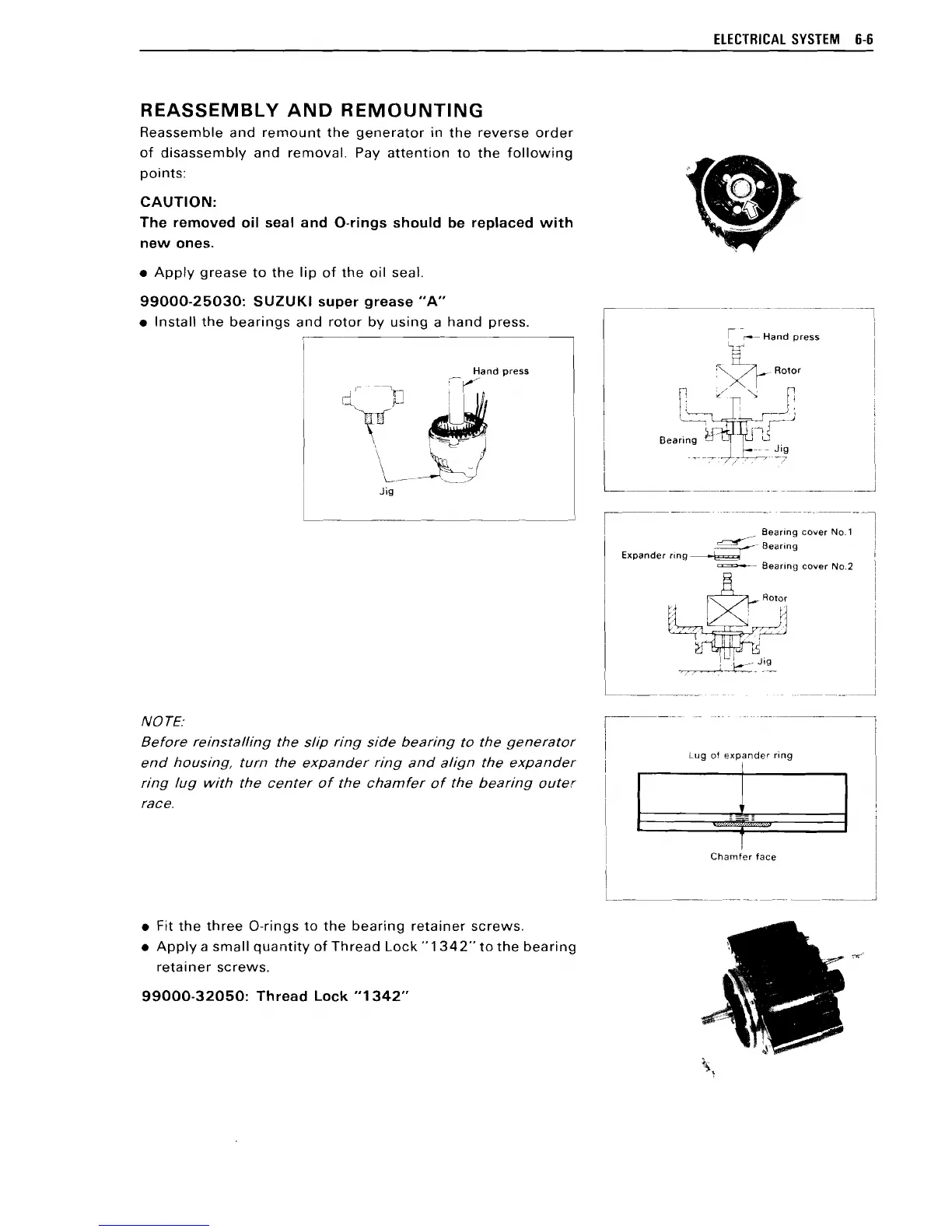

REASSEMBLY AND REMOUNTING
Reassemble and remount the generator in the reverse order
of disassembly and removal. Pay attention to the following
points:
CAUTION:
The removed oil seal and a-rings should be replaced with
new ones.
• Apply grease to the lip of the oil seal.
99000-25030: SUZUKI super grease "A"
• Install the bearings and rotor by using a hand press.
NOTE:
Before reinstalling the slip ring side bearing to the generator
end housing, turn the expander ring and align the expander
ring lug with the center of the chamfer of the bearing outer
race.
• Fit the three O-rings to the bearing retainer screws.
• Apply a sma II qua ntity of Th read Lock "1 342" to the bea ri ng
retainer screws.
99000-32050: Thread Lock "1342"
I
I" -0-- Hand press
" §:/1-
'X I .. Rotor
,
n ~ "-; n
! L~~i; ,.--5 ~
'~---, 1-.)
- n~
Bearing . ,.~ _
I 1--- - Jig
---7"'7:;7"'T-;7"77
l
I
_
----------- ~-- --------~._--~
~-~------
I
____ Bearing cover No.1
•
~-Bearing
Expander ring -_. e=~~
r ,'. -. ,:::;;"' 0'"0' ,,'
t
~ I~_LJ
I ~~_~Jlg_
L . __
-.- ----------1
i
I
Lug of expander ring
i
I
II
I
:+:----'
I
Chamfer face
I
L ~ ~

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
