Suzuki Katana 1100 User Manual

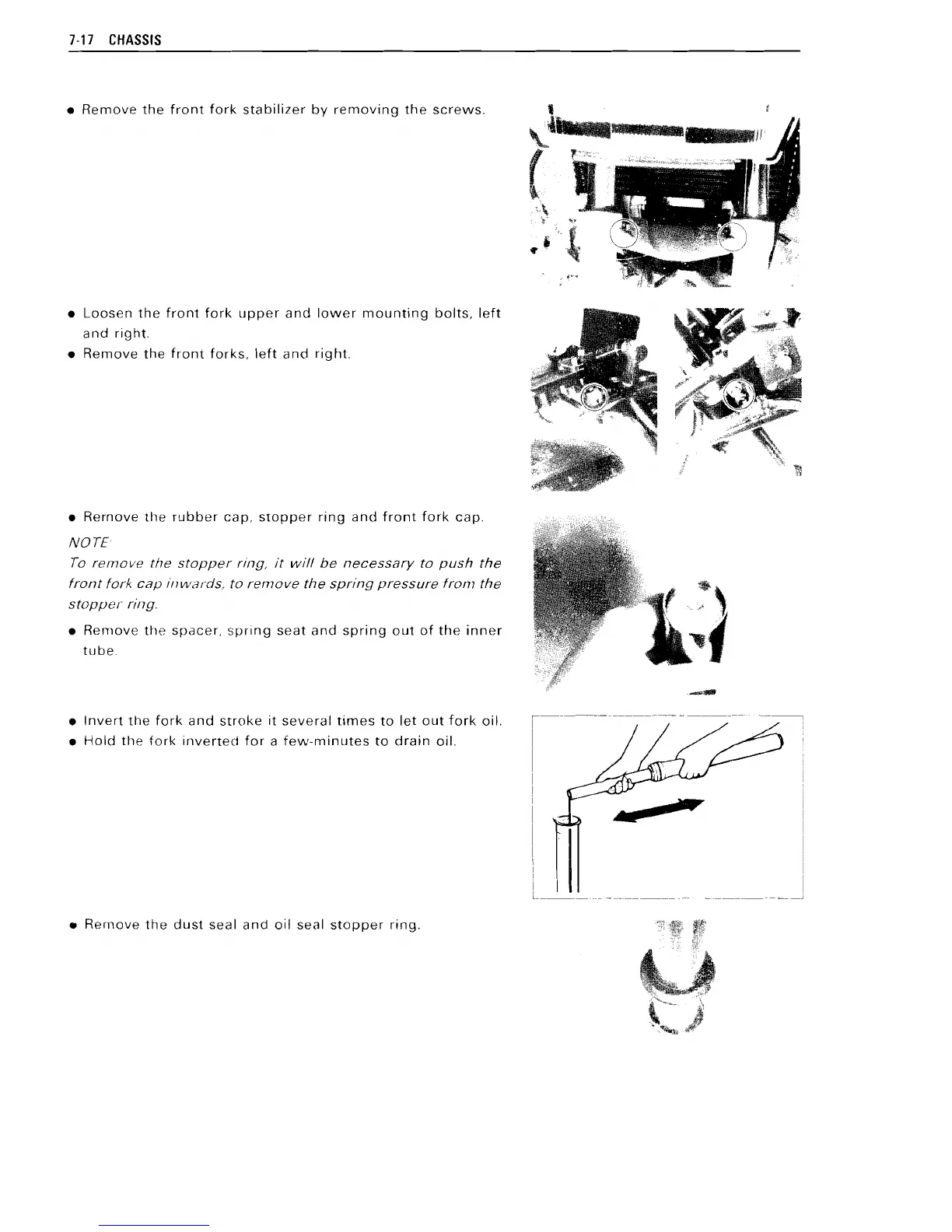

7-17 CHASSIS
• Remove the front fork stabilizer by removing the screws.
• Loosen the front fork upper and lower mounting bolts, left
and right.
• Remove the front forks, left and right.
• Remove the rubber cap, stopper ring and front fork cap.
NOTE
To remove the stopper ring, it will be necessary to push the
front fork cap inwards .. to remove the spring pressure from the
stopper ring.
• Remove the spacer, spring seat and spring out of the inner
tube
• Invert the fork and stroke it several times to let out fork oil.
• Hold the fork inverted for a few-minutes to drain oil.
• Remove the dust seal and oil seal stopper ring.
'.
IIiii'
1----- - -----.----. - ------
I
I
i
I
•
I
I
I
I
i
L ~. .__ _ .. ._

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
