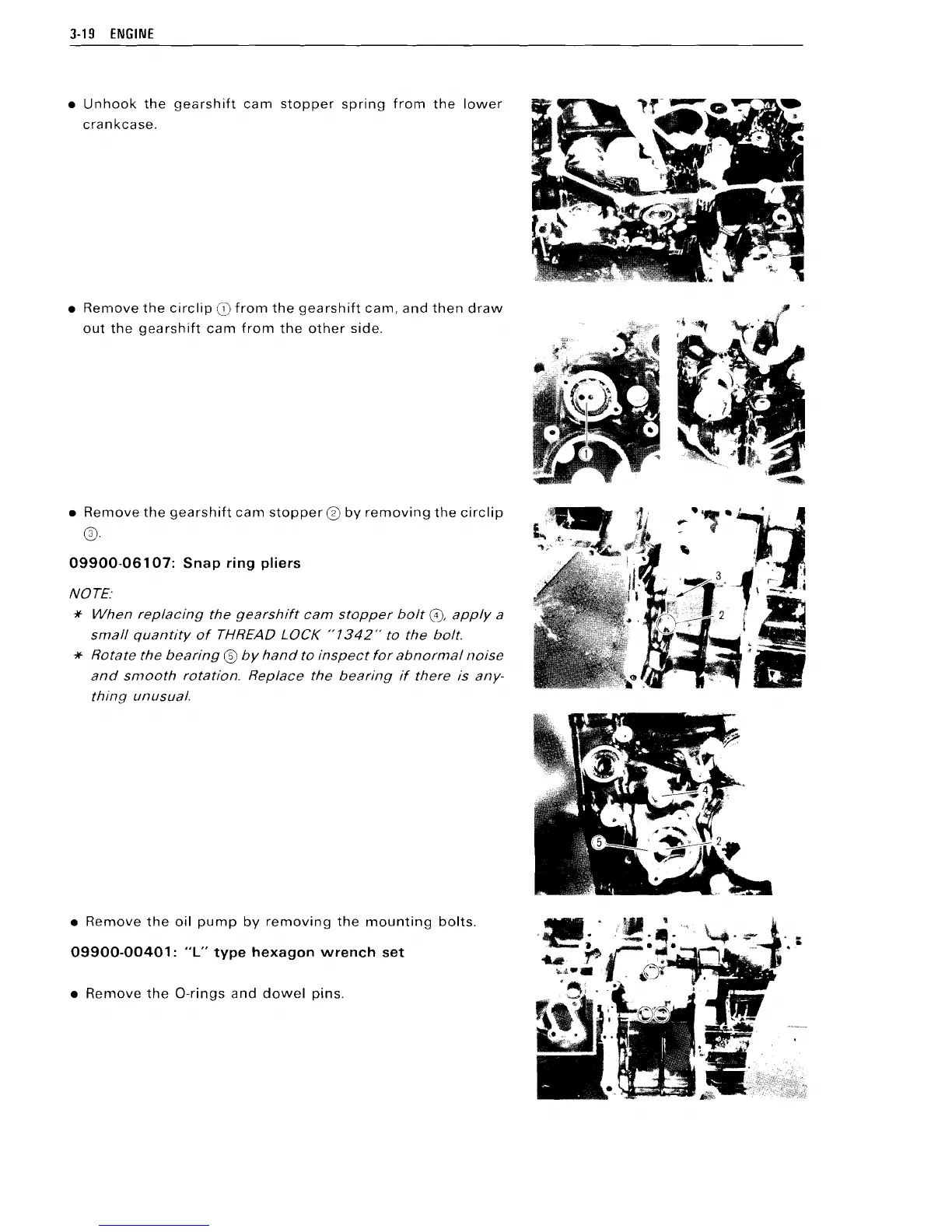

3-19 ENGINE
• Unhook the gearshift cam stopper spring from the lower
crankcase.
• Remove the circlip CD from the gearshift cam, and then draw
out the gearshift cam from the other side.
• Remove the gearshift cam stopper ® by removing the circlip
0).
09900-06107: Snap ring pliers
NOTE:
* When replacing the gearshift cam stopper bolt (4), apply a
small quantity of THREAD LOCK "1342" to the bolt.
* Rotate the bearing ® by hand to inspect for abnormal noise
and smooth rotation. Replace the bearing if there is any-
thing unusual.
• Remove the oil pump by removing the mounting bolts.
09900-00401: "L" type hexagon wrench set
• Remove the O-rings and dowel pins.

Suzuki Katana 1100 Specifications

General

Displacement	1074 cc
Bore x Stroke	72.0 mm x 66.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Front Suspension	Telescopic, coil spring, oil damped
Rear Brakes	Single hydraulic disc
Wheelbase	1520 mm
Starting	Electric
Final Drive	Chain
Height	1170 mm
Transmission	5-speed
Rear Suspension	coil spring, oil damped
Front Brakes	Dual hydraulic disc
Fuel Capacity	19 liters
Max Power	111 hp @ 8, 500 rpm
Width	750 mm
