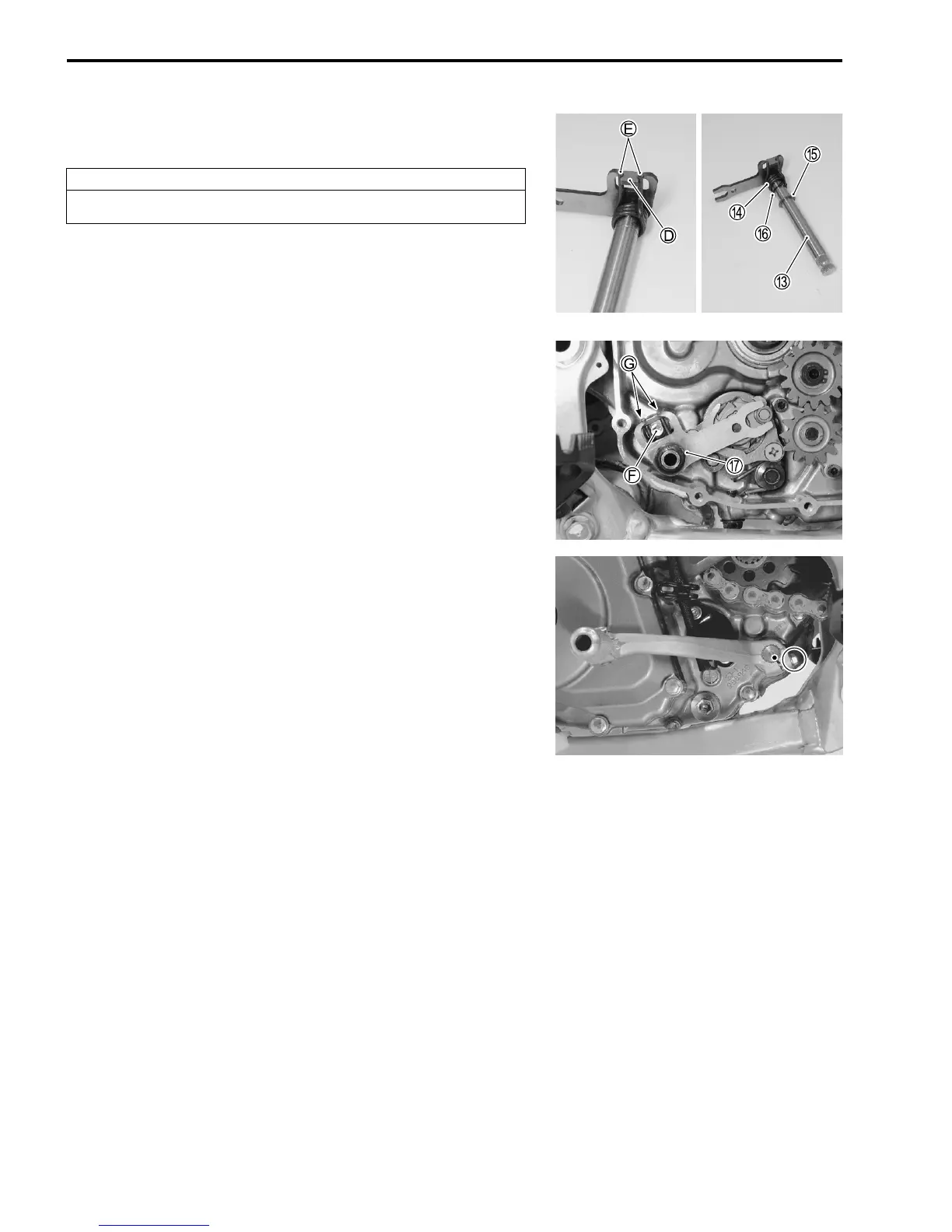

9-7 GEARSHIFTING
• Install the gearshift return spring

D, snap ring

E and washer

F onto the gearshift shaft

C properly.
NOTE:
When installing the return spring, position the stopper

D of
gearshift arm between the return spring ends

E.
"
09900-06107: Snap ring pliers
• Install the gearshift shaft assembly

G.
NOTE:
Pinch the gearshift arm stopper

F with return spring ends

G.
• Install the clutch components parts and right crankcase cover.
(!7-9, 8-6)
• Align the matching mark on the gearshift shaft head with slit of
the gearshift lever.
• Tighten the gearshift lever bolt.
INSPECTION AFTER INSTALLATION
• Engine oil level and oil leakage (!2-10)
• Engine coolant level and coolant leakage (!2-14, -15)
• Smooth operation of gearshift system
CAUTION
Replace the snap ring

E with a new one.
