19-15 REAR SUSPENSION

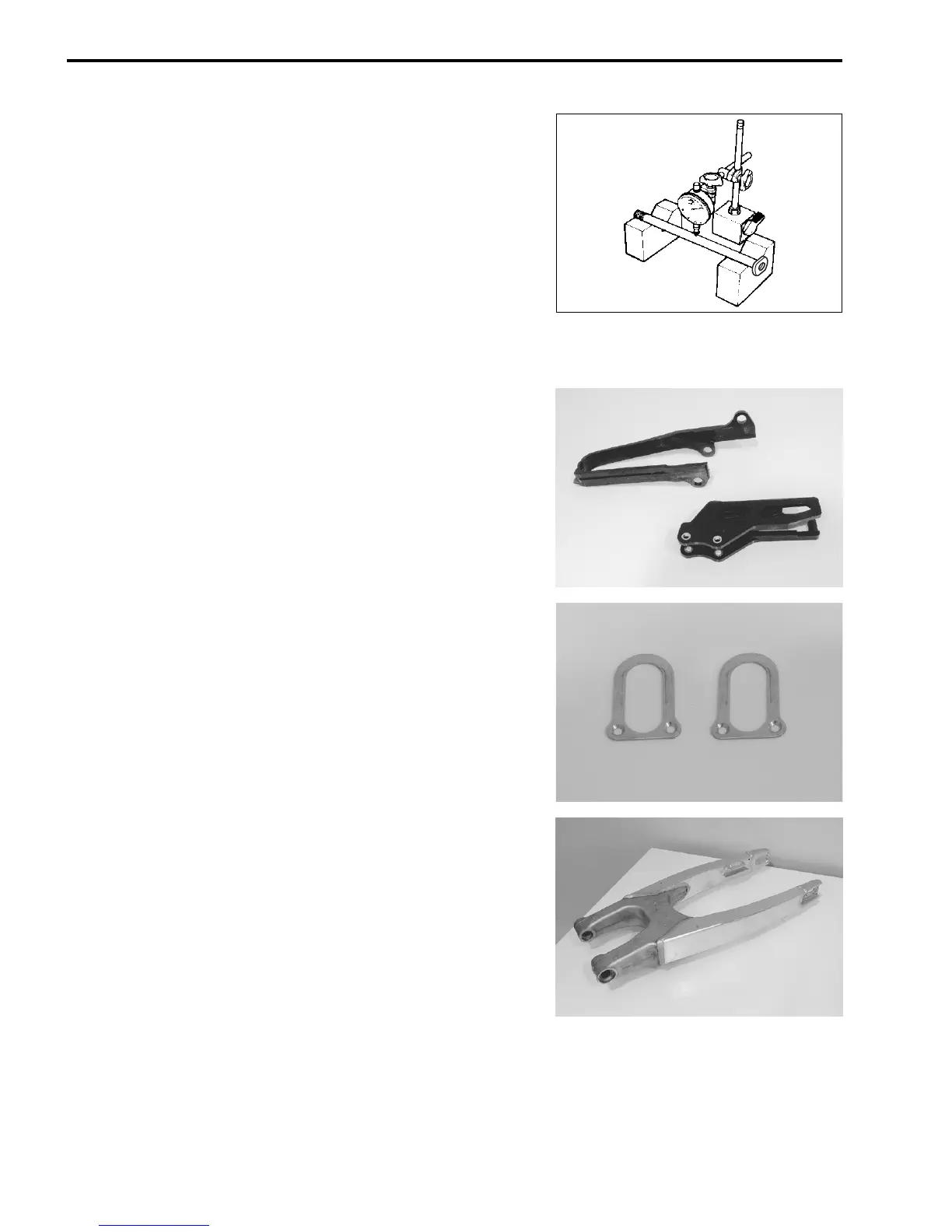

INSPECTION
PIVOT SHAFT
• Measure the pivot shaft runout with the dial gauge and
V-blocks.
• If any the runout exceeds the limit, replace the pivot shaft with
a new one.
# Swingarm pivot shaft runout
Service Limit: 0.3 mm (0.01 in)
" 09900-20607: Dial gauge (1/100, 10 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
CHAIN BUFFER AND CHAIN GUIDE
• Inspect the chain buffer and chain guide for damage and
excessive wear.
• If any defects are found, replace the chain buffer or guide with
a new one.
PLATE
• Inspect the plate for damage and excessive bend.
• If any defects are found, replace the plate with a new one.
SWINGARM
• Inspect the swingarm for cracks and damage.
• If any defects are found, replace the swingarm with a new
one.
