10-11 TRANSMISSION AND CRANKSHAFT
INSTALLATION
• Press the new bearings with the special tool.
Bearing
1: % 55 Attachment
Bearing
2,
8: % 40 Attachment
Bearing
3: % 75 Attachment
Bearing
4: % 32 Attachment
Bearing
5: % 52 Attachment
Bearing
6: % 72 Attachment
Bearing
7: % 37 Attachment
Bearing
9: % 15 Attachment
" 09913-70210: Bearing installer set

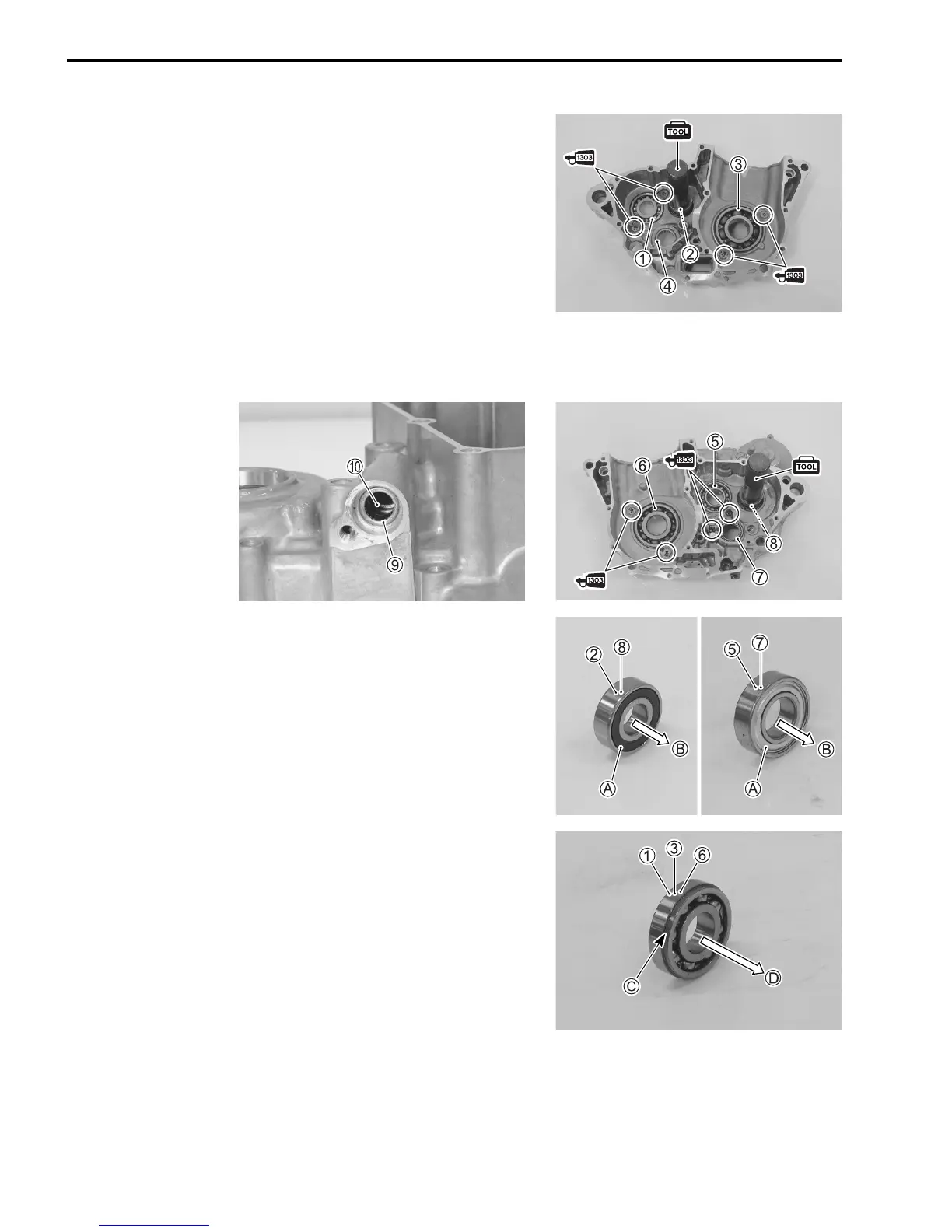

• Press the bearing
0 with the appropriate steel rod.
NOTE:
Press the bearing (
2,
5,
7,
8)into the crankcase, so that the
sealed side
A faces outside of the crankcase.
B Outside of the crankcase
NOTE:
Press the bearings (
1,
3,
6) into the crankcase, so that the
stepped side
C faces inside of the crankcase.
D Inside of the crankcase
• Apply THREAD LOCK SUPER to the bearing retainer screws.
& 99000-32030: THREAD LOCK SUPER “1303”
or equivalent
• Tighten the bearing retainer screws to the specified torque.
' Bearing retainer screw: 8.5 N·m (0.85 kgf-m, 6.0 lb-ft)
To Next Page
