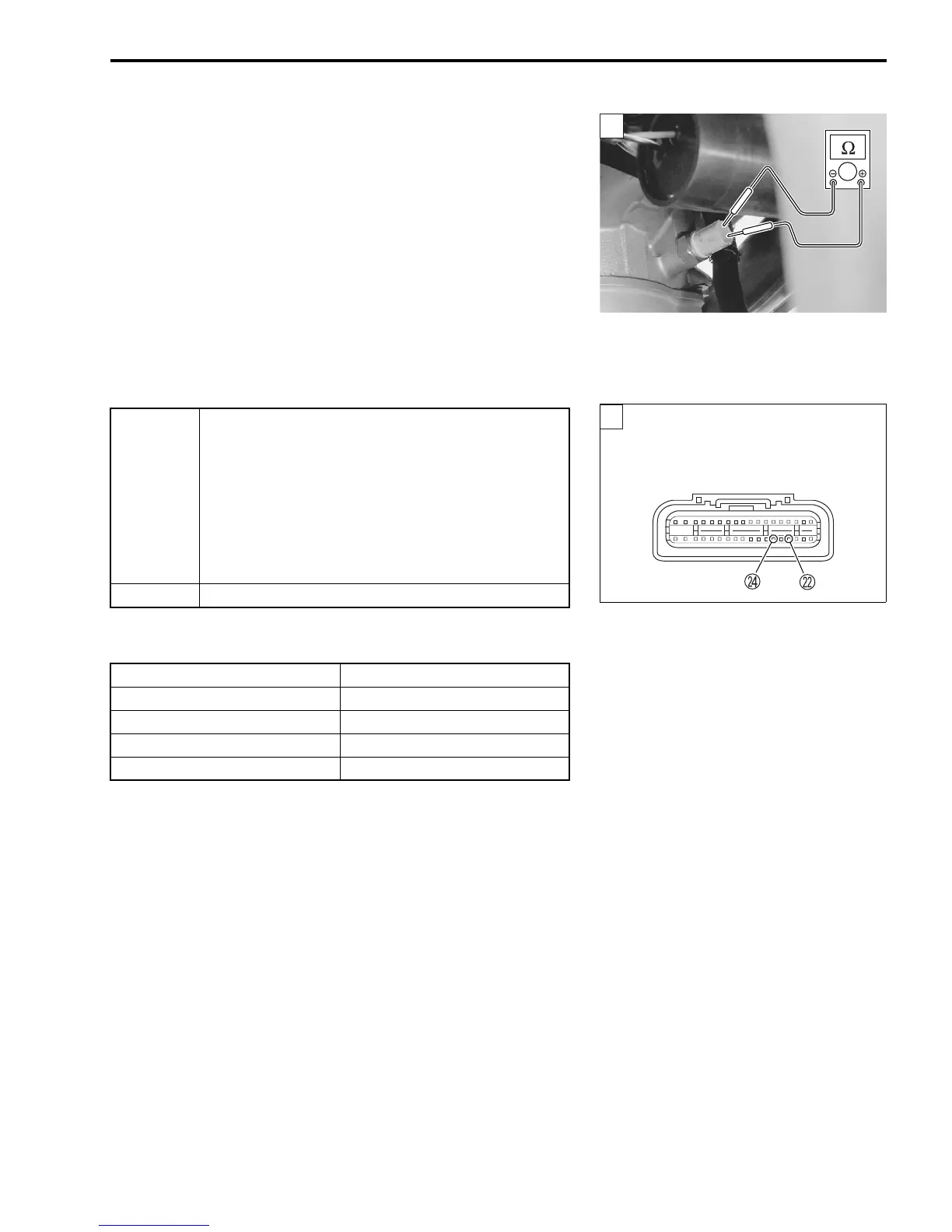

FI SYSTEM DIAGNOSIS 12-30
Step 2
1) Stop the engine.
2) Disconnect the ECT sensor coupler.
3) Measure the ECT sensor resistance.
# ECT sensor resistance:
Approx. 2.58 kΩ at 20 °C (68 °F)
(Terminal – Terminal)
! 09900-25008: Multi-circuit tester set
$ Tester knob indication: Resistance (Ω)
Refer to page 12-47 for details.
Is the resistance OK?
# ECT sensor specification
YES
• B/Bl or B/Br wire open or shorted to ground, or
poor

L or

N connection.
• If wire and connection are OK, intermittent trou-
ble or faulty ECM.
• Recheck each terminal and wire harness for
open circuit and poor connection.
• Replace the ECM with a known good one, and
inspect it again.
NO Replace the ECT sensor with a new one.
Engine Coolant Temp. Resistance
20 °C (68 °F) Approx. 2.58 kΩ
50 °C (122 °F) Approx. 0.77 kΩ
80 °C (176 °F) Approx. 0.28 kΩ
110 °C (230 °F) Approx. 0.12 kΩ
ECM coupler (Harness side)
2
To Next Page
