COOLING SYSTEM 14-10

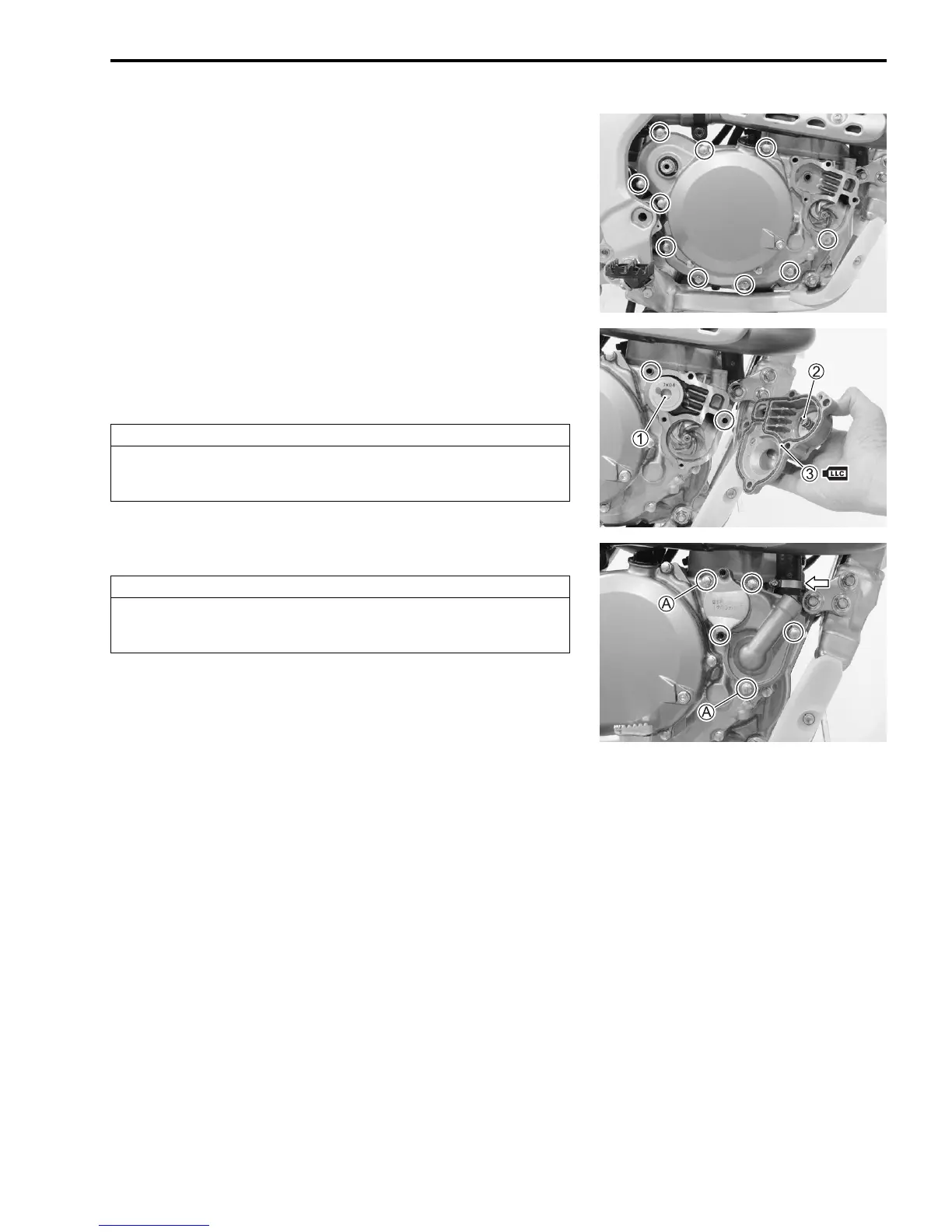

• Fit the right crankcase cover.
• Tighten the crankcase cover bolts to the specified torque.
! Right crankcase cover bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
• Install the brake pedal. ("17-18)
• Install the kick starter lever. ("8-7)
WATER PUMP CASE
• Install the dowel pins and oil filter

1.
• Install the spring

2 and a new gasket

3.
• Apply engine coolant to the gasket

3.
• Fit the water pump case.
• Tighten the water pump case bolts to the specified torque.
! Water pump case bolt: 11 N·m (1.1 kgf-m, 8.0 lb-ft)
• Connect the radiator hose and pour engine coolant.
("14-3, 20-23)
INSPECTION AFTER INSTALLATION
• Engine oil level and leakage ("2-10)
• Engine coolant level and leakage ("2-14, -15)
CAUTION
Use the new gasket to prevent engine oil/coolant leak-
age.
CAUTION
Use the new gasket washers

A to prevent engine oil/
coolant leakage.
To Next Page
