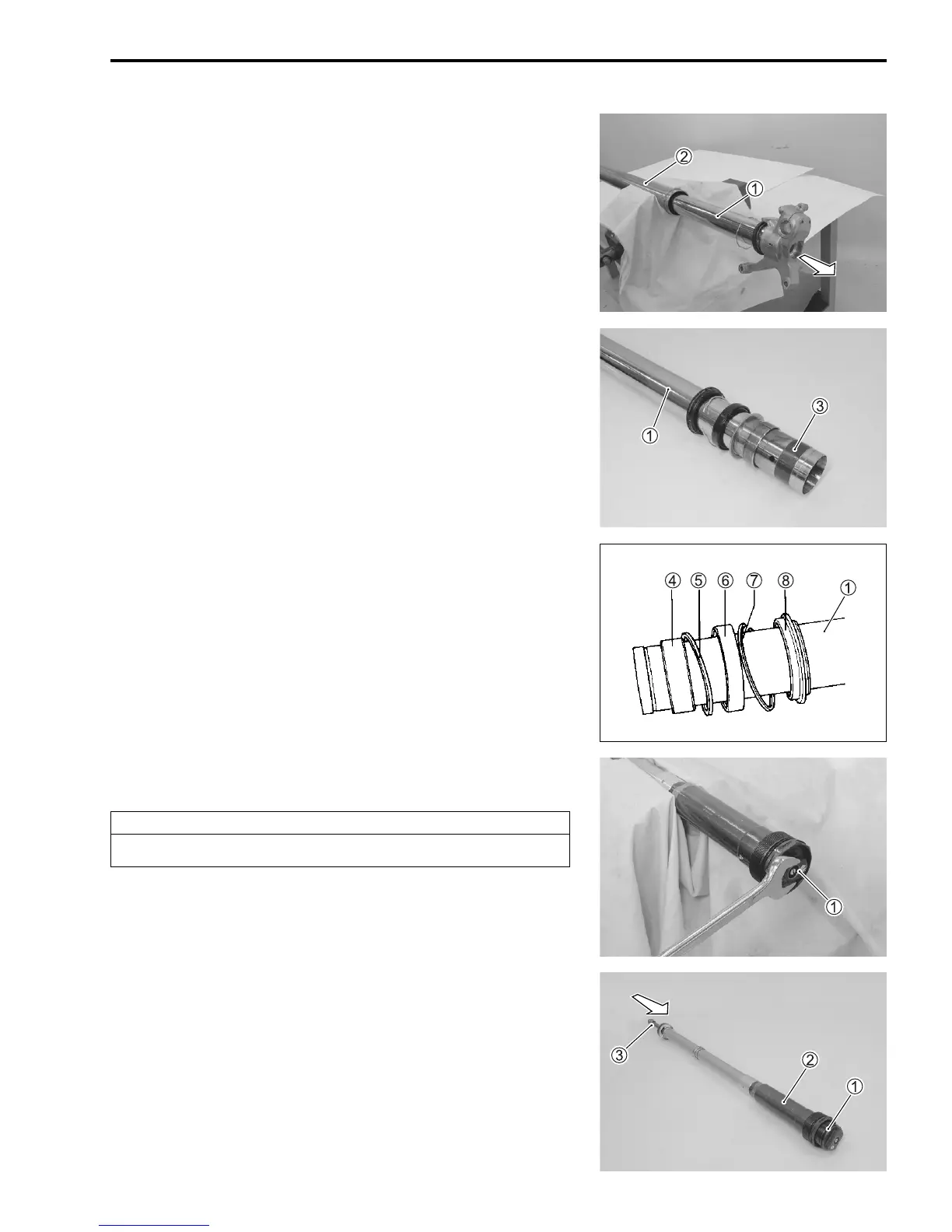

FRONT FORK AND STEERING 18-8
INNER TUBE
• Separate the inner tube

1 out of the outer tube

2.
• Remove the slide bushing

3 from the inner tube

1.
• Remove the following parts from the inner tube

1.
Guide bushing

4
Seal retainer

5
Oil seal

6
Stopper ring

7
Dust seal

8
DANPER ROD AND COMPRESSION DAMPER UNIT
• Clamp the bottom (flat part) of the sub-tank with a vise.
• Loosen the compression damper unit

1.
• Remove the compression damper unit

1 from the sub-tank

2.
NOTE:
Slowly compress the inner rod

3 until it stops so that the com-
pression damper unit can be removed easily.
CAUTION
Do not clamp the sub-tank too tight.
To Next Page
