12. BODY COVER
12-3

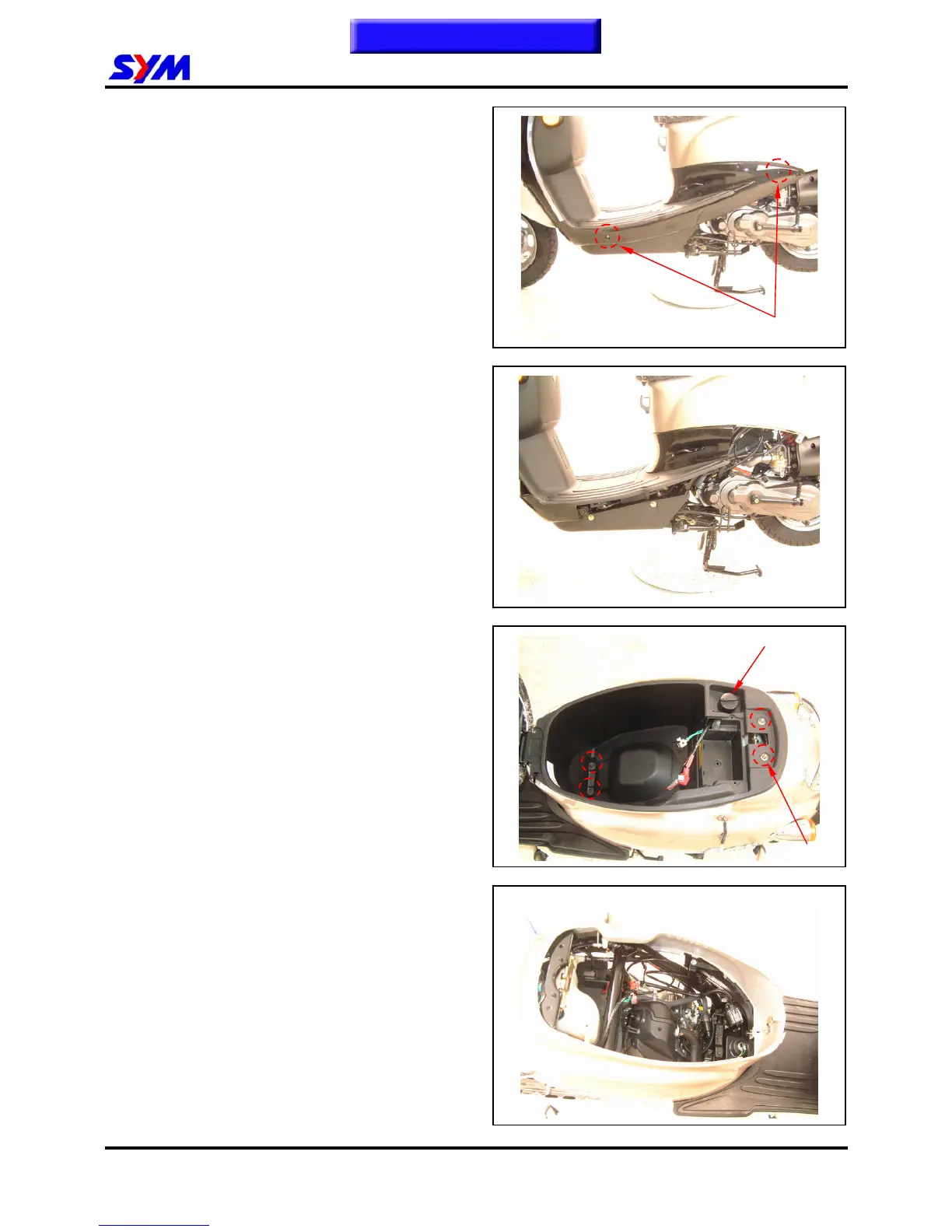

Side Covers
1. Removal:
y Remove 2 screws (front/middle) from two
side covers.
y Slide the side cover backward so that and
remove the side cover
2. Installation:
y Install in reverse order of removal
procedures.
Luggage Box
1. Removal:
y Lift up seat cushion.
y Remove luggage box bolts (4 bolts)
y Remove oil tank cap and oil guide rubber.
y Hold the luggage box in both front and
rear sides by two hands, and then lift up
the box to remove it.
2. Installation:
y Install in reverse order of removal
procedures.
Screws
This chapter Contents
Bolts
Oil tank cap
To Next Page
