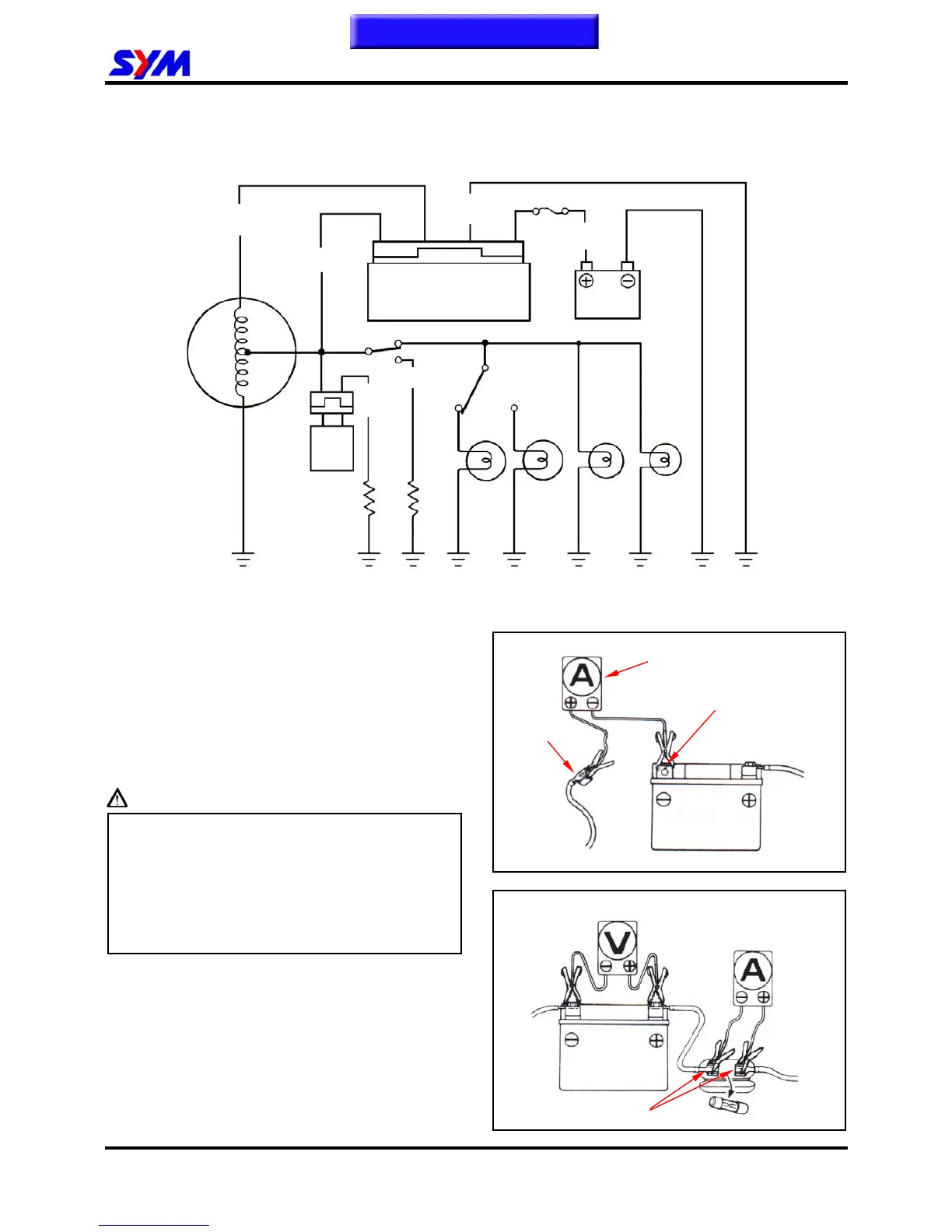

15. ELECTRICAL EQUIPMENT
15-5
Charging System
Current Leakage Inspection
Turn the main switch to OFF position, and
remove the negative cable terminal (-) from the
battery.
Connect an ammeter between the negative cable
terminal and the battery negative terminal.
Caution
y In the current leakage test, set the current
range at larger scale, then gradually
decrease to the lower scale as the test
process goes to avoid possible damage to
the ammeter and the fuse.
y Do not turn the main switch to ON position
during test.
If the leaked current exceeds the specified value,
it may indicate a short circuit.
Allowable current leakage: Less than 1mA
Disconnect each cable one by one and take
measurement of the current of each cable to
locate the short circuit.
White
Yellow
Green
Red
Resistor 10.2Ω 5W
Resistor 5.9Ω 30W
Green/
Black
Pink
Auto by- starter
AC. Generator
Fuse coupler
Ammeter
Digital voltmeter
Battery (-) terminal
Ground circuit
Ammeter
This chapter Contents
REG. REC.
Battery
