13. STEERING/FRONT WHEEL/SUSPENSION
13-11

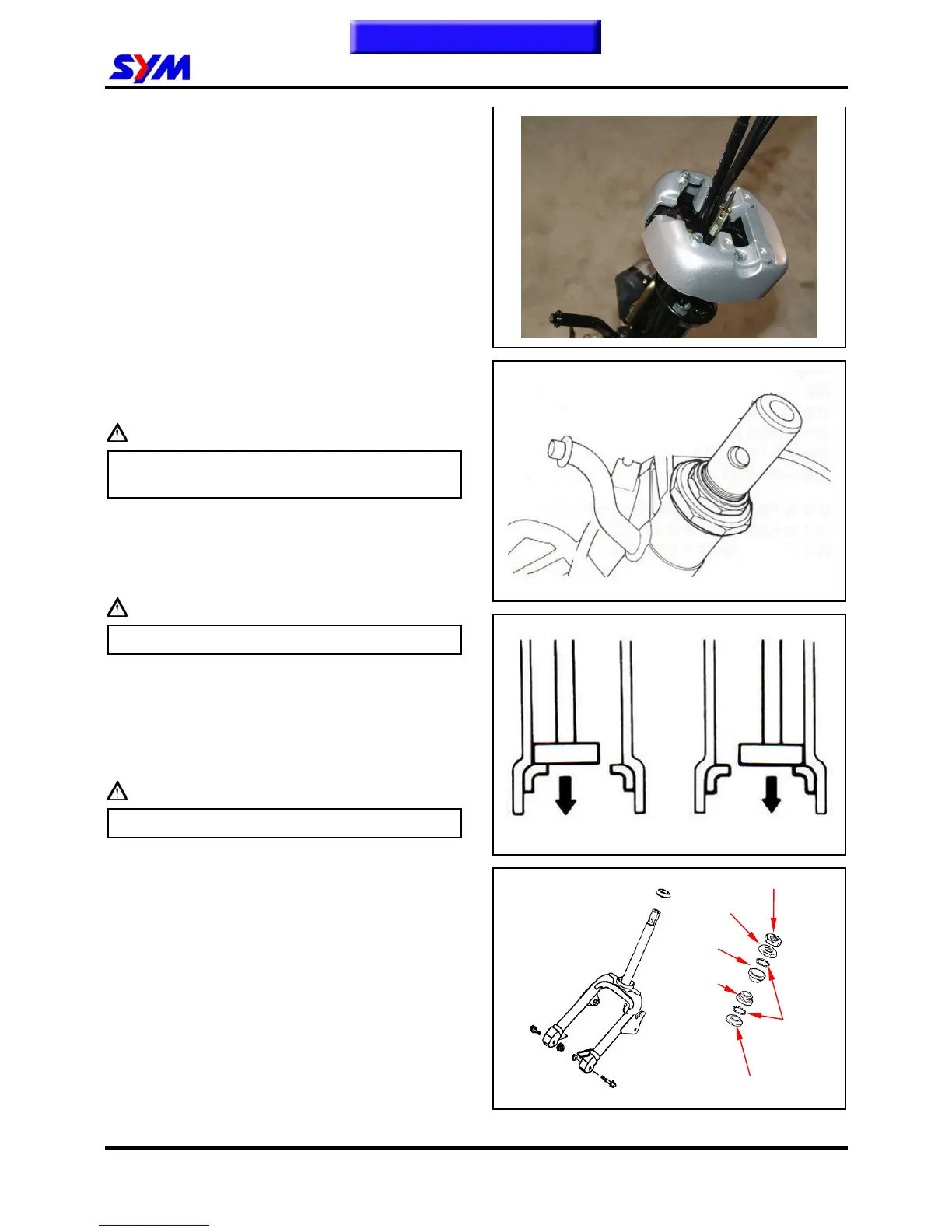

Front Fork
Removal
y Remove the handle pipe.
y Remove the handle post cover.
y Remove front wheel.
y Remove front cushion and pilot arm.
Remove the steering stem lock nut.
Remove top cone race and front fork.
Caution
Place the steel ball onto a parts container to
prevent from missing.
Slightly tap the top and bottom ball bearing seats
with a plastic hammer to remove the seats.
Remove bottom cone race body with a punch.
Caution
Do not damage the steering stem.
Installation
Install a new bottom cone race onto the steering
stem.
Push the cone race until to mounted position.
Caution
Do not tilt the ball bearing seats as installation.
Apply with grease onto the ball bearing seats,
and install steel balls onto the seats.
(Top: 26 balls, bottom: 18 balls)
Steering stem lock nut
Bottom cone race
Steel balls
Top cone race
Steering ball
up race
Steering ball
bottom race
