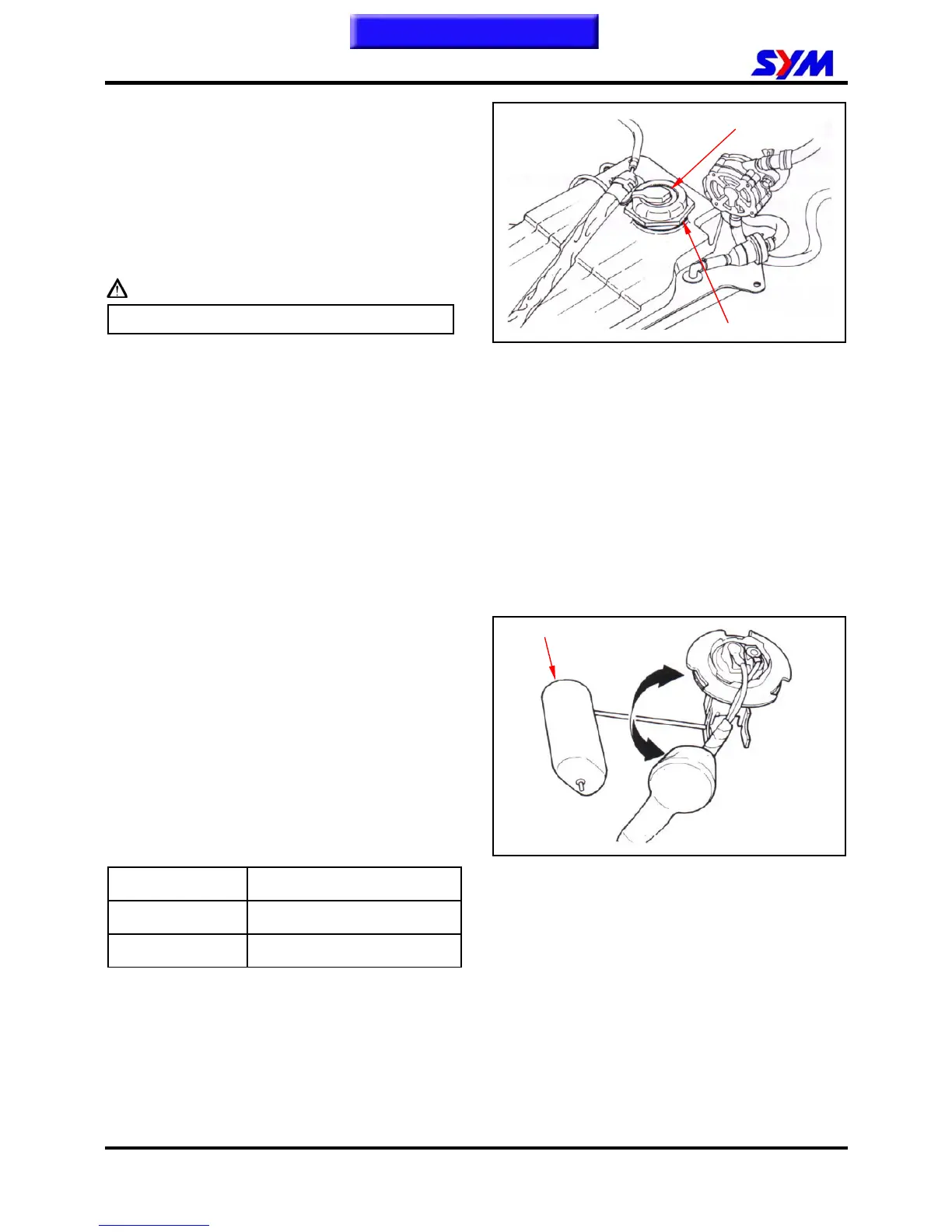

15. ELECTRICAL EQUIPMENT
15-16
Fuel Unit
Removal / Installation
Remove 4 bolts and floor panel.
Disconnect fuel unit coupler.
Remove the fuel unit plastic cap.
Turn the snap ring in CCW direction and then
remove the fuel unit.
Caution
Do not bend the float arm.
Install in reverse order of removal procedures.
Remark: Aligning the slot of fuel unit with the ring
of oil tank as installation, and then turn the snap
ring in CW direction until matching to the arrow.
Inspection
1. Connect the fuel unit coupler.
Turn the main switch ON.
Move the float in up and down, and make
sure that the fuel indicator can be reached to
F (Full) and E (Empty) positions.
Conduct the step 2 if the needle on the fuel
indicator is not moved.
2. Measure the coupler resistance while the
float in up and down positions.
Float position Resistance value
Up (full)
3~10Ω
Down (empty)
90~100Ω
Check the fuel indicator if the resistance is in
normal.
Replace the fuel gauge if the resistance is
abnormal.
Fuel unit
Fuel unit plastic
Float
