15. ELECTRICAL EQUIPMENT
15-12
Starting System

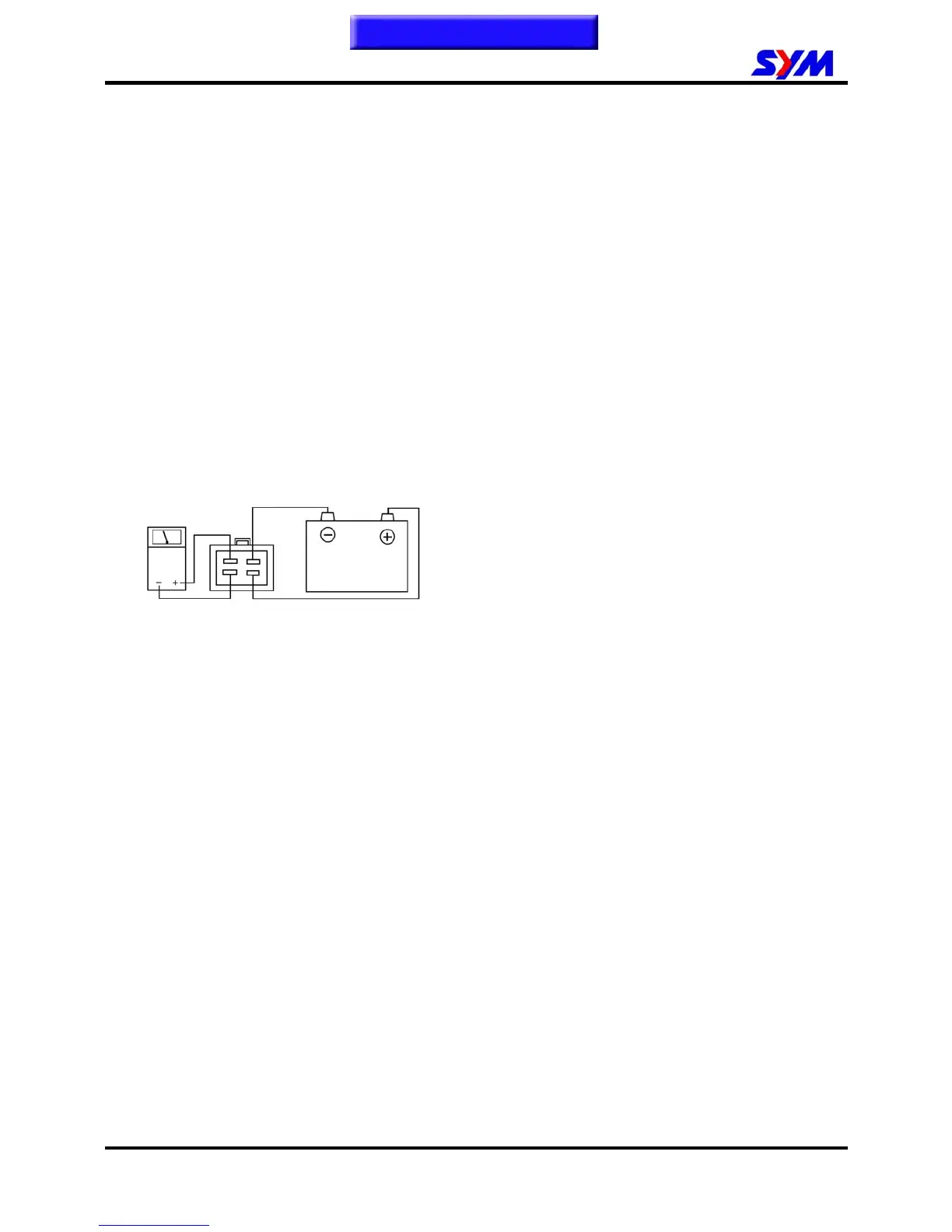

Starter Relay Inspection
Remove luggage box.
Connect both the green/yellow (-) and the
yellow/red (+) pins to battery posts directly.
If the red and red/white pins are also in continuity,
it means it is in normal.
Starter Motor Pinion Removal /
Installation
Remove left crankcase cover.
Remove starter motor pinion.
Install the starter motor pinion in reverse order of
removal.
Starter Motor Pinion Inspection
y Pinion, reduction gear for wear out or damage
→ replace it with new one.
y Gear journal for wear out or damage →
replace it with new one.
Check the pinion for sliding in axial direction
smoothly.
y The pinion sliding in axial direction not in
smooth → replace it with new one.
