15. ELECTRICAL EQUIPMENT
15-9

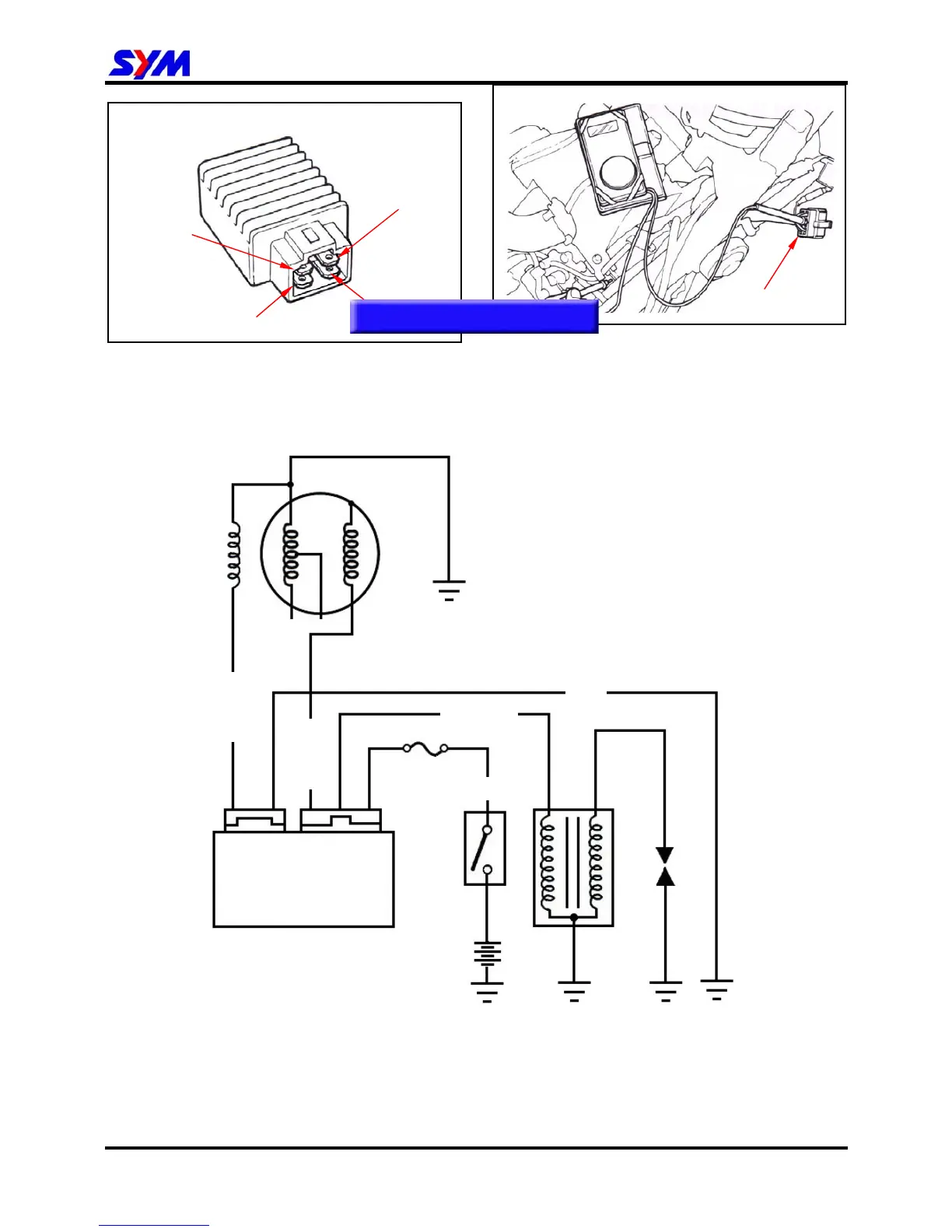

Ignition System
Red (B)
White (A)
Yellow (L)
Green (E)
AC. Generator
harness coupler
Black/Red
Blue/Yellow
Black/White
Black/Yellow
Green
This chapter Contents
CDI
Fuse 7A
AC. Generator
IGN. Coil
Spark plug
Main switch
Battery
