Synesso MVP Technical Manual

19
HYDRAULIC SYSTEM
Overview
The hydraulic system in the Synesso™ is comprised of all parts through which water ows starng with
where it enters the machine from the water treatment/ltraon system. This chapter will detail the ow of
water and some of the associated electrical components.
Synesso™ ulizes 3/8” braided stainless hoses (supplied with machine) to connect to the water treatment
system. Once the machine is set up and the water quality is checked, the machine is ready to connect to the
water treatment system. The water then passes to the pump and motor.
On single pump and motor machines, water for the brew boiler goes through the pump and the water for
the steam boiler travels through a separate line to the steam tank ll valve. The next 2 pages show the dual
inlet system, and Hydra inlet water paths.

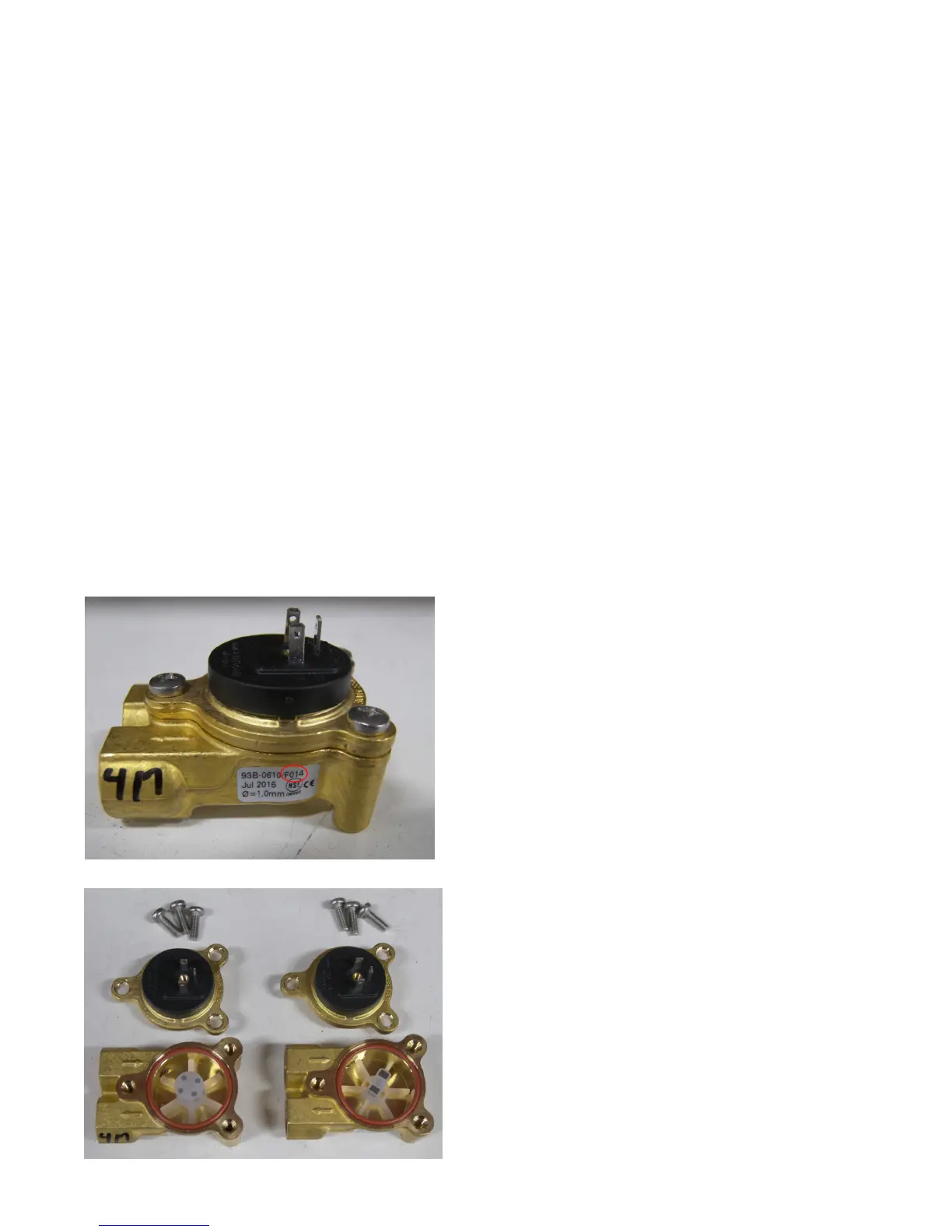

The MVP and MVP Hydra incorporate a high precision 4
Magnet Flow Meter. While the outward appearance is
idencal, the label part number ends in “14”.
Synesso part number is 2.3057 - they are NOT inter-
changeable with the previous 2 Magnet Flow Meter
Synesso part number (#2.3052)
The 4 Magnet Flow Meter is shown on the LEFT
The 2 Magnet Flow Meter is shown on the RIGHT
FLOW METERS
