If the Battery Goes Dead
Connecting the jumper cables
IMPORTANT: Set the starter keys of both
the rescue vehicle and problem vehicle to
the OFF position.
1. Connect the clip of jumper cable (R) to the
problem vehicle’s “+” terminal.
2. Connect the other clip of jumper cable (R)
to the rescue vehicle’s “+” terminal.
3. Connect the clip of jumper cable (B) to the
rescue vehicle’s “–” terminal.
4. Connect the other clip of jumper cable
(B) to the problem vehicle’s engine block.
Connect the clip as far from the battery as
possible.
Starting the engine
1. Check that the clips are securely connected
to the terminals.
2. Start the rescue vehicle’s engine and run
it at high speed.
3. Start the problem vehicle’s engine.
The following symptoms indicate that the
battery is dead:
�
The starter motor does not turn or turns
weakly, and the engine does not start.
�
The horn is weak.
Procedure
Use jumper cables and start the engine using
the rescue vehicle’s battery.
WARNING
� Use jumper cables only in the
recommended manner. Improper use
of jumper cables can result in battery
explosion or unexpected machine
motion.
• Do not let the problem vehicle and
rescue vehicle touch each other.
• Do not let the “+” and “–” clips of the
jumper cables touch each other.
• Connect the jumper cables to the “+”
terminals first, and disconnect them
from the “–” terminals (ground) first.
• Connect the final clip of the jumper
cable to a point as far away from the
battery as possible.
�
Use safety glasses when using jumper
cables to start the machine.
IMPORTANT: Use jumper cables and clips
of a size suited to the battery’s capacity.
Do not used damaged or corroded jumper
cables and clips.
IMPORTANT: The rescue vehicle’s battery
must have the same capacity as the
problem vehicle’s battery.
IMPORTANT: Connect the clips securely.

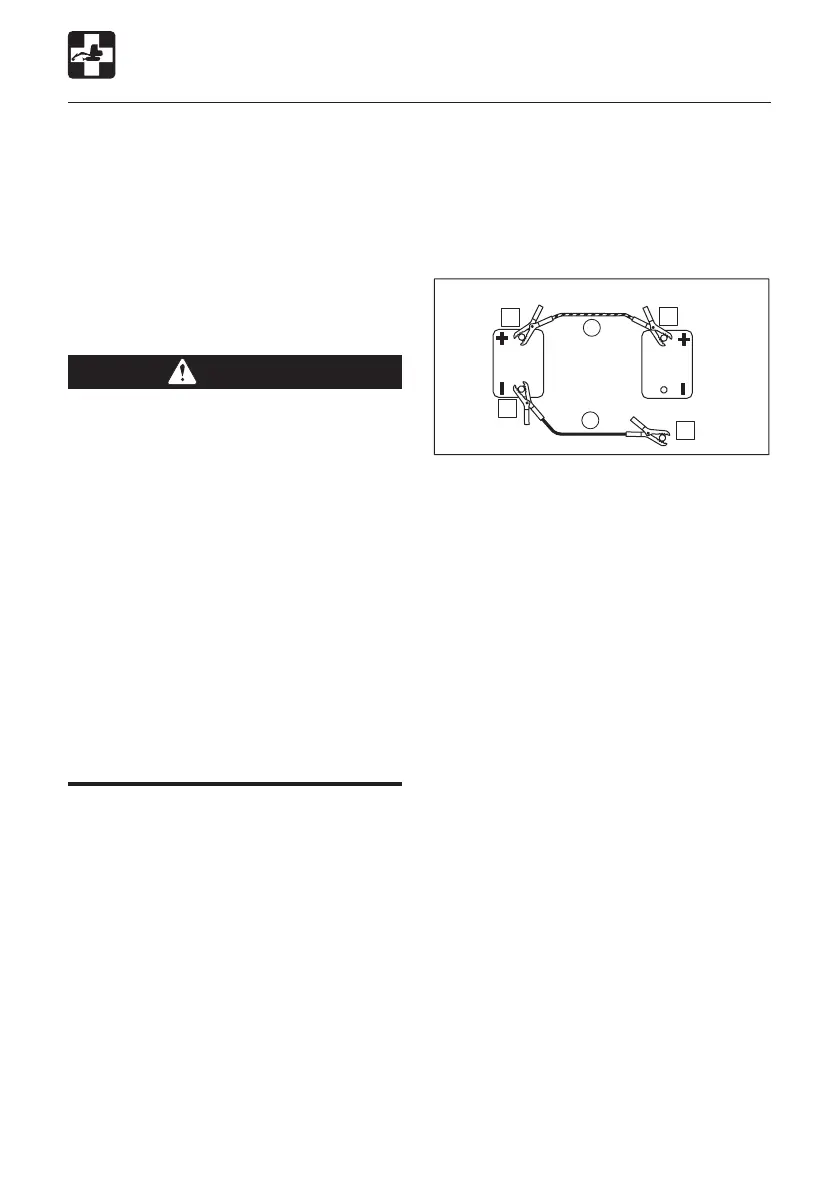

Rescue vehicle battery Problem vehicle battery
To engine block
