Takeuchi TB175W User Manual

46
CONTROLS
� Lower lever (2) to adjust the front angle of
the seat cushion.
1. To raise the front angle of the seat cushion,
apply your weight to the seat back while
holding the lever down.
2. To lower the front angle of the seat cushion,
apply your weight to the front of the seat
cushion while holding the lever down.
�
To adjust the height of the seat, adjust the
front and rear angles of the seat cushion
alternately.
(5 steps, 60 mm (2.36 in.) adjustment
range)
Example : . First raise the front angle of the
seat cushion, then raise the rear
angle of the seat cushion by the
same amount. This raises the
height of the seat.
�
After adjusting to the desired position,
release the lever to lock it.
(C) Back angle adjustment
WARNING
� Do not set the seat back to its maximum
reclining position and slide the seat
backwards at the same time. Doing
so may break the rear window glass,
resulting in injury.
�
Be careful not to allow the force of the
spring to bring the seat back sharply
forward.
1. Raising your torso, sitting down firmly in
the seat.
2. Pulling lever (3) allows you to use the
pressure of the springs in the seat pressing
against your back to adjust the reclining
angle of the seat back. Release the lever
(3) at the desired angle and the seat back
will remain fixed in that position.

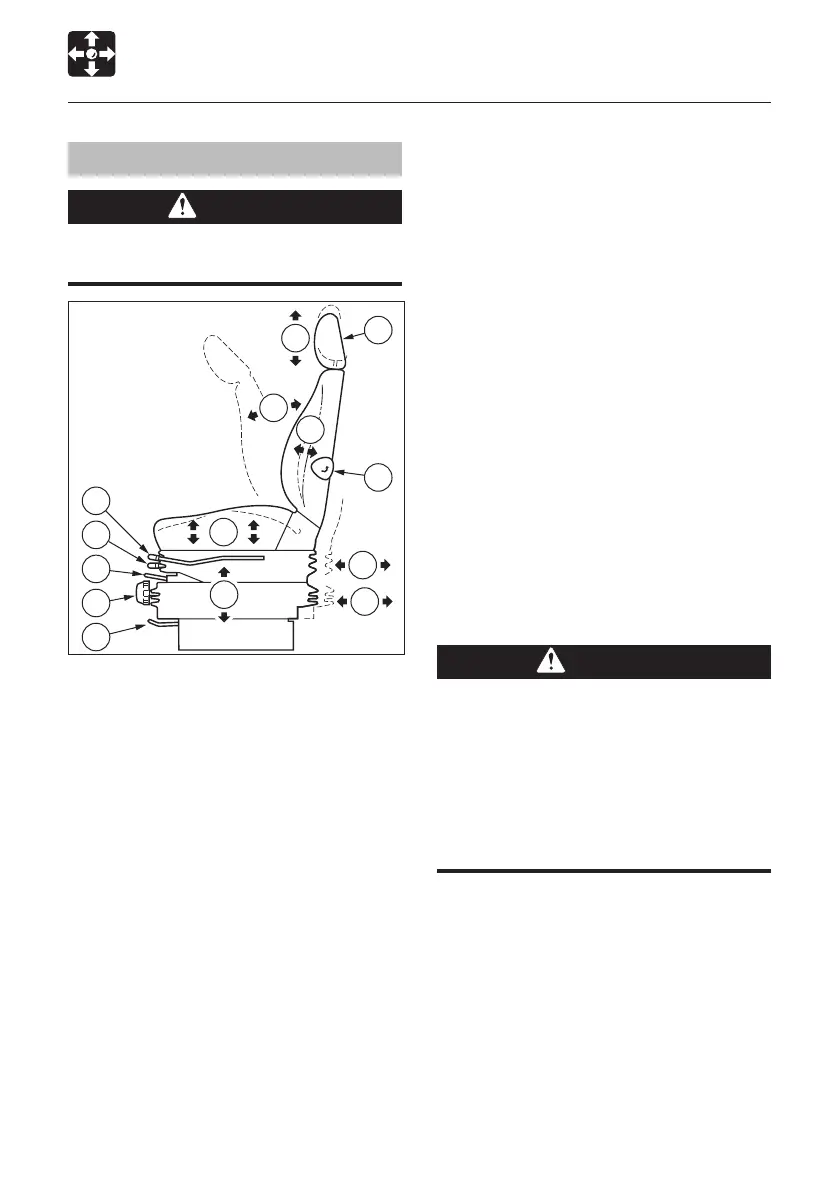

Seat and Seat Belt
Seat
WARNING
Adjust, secure and latch the operator’s
seat.
(A) Lumber adjustment
1. Turning knob (1) in the direction of the arrow
causes the lumber of the seat back to
curve outwards for greater back support.
2. Turning the knob (1) further then removes
the curve and returns the seat back to its
original position.
The knob (1) cannot be turned counter to
the direction of the arrow.
(B) Seat cushion angle and height
adjustment
�
Lift lever (2) to adjust the rear angle of the
seat cushion.
1. To raise the rear angle of the seat cushion,
raise yourself slightly off the seat while
lifting the lever.
2. To lower the rear angle of the seat cushion,
apply your weight to the rear of the seat
cushion while lifting the lever.
6
1
7
4
3
L3B012
2
5
A
D
F
G
C
B
E
