CONTROLS

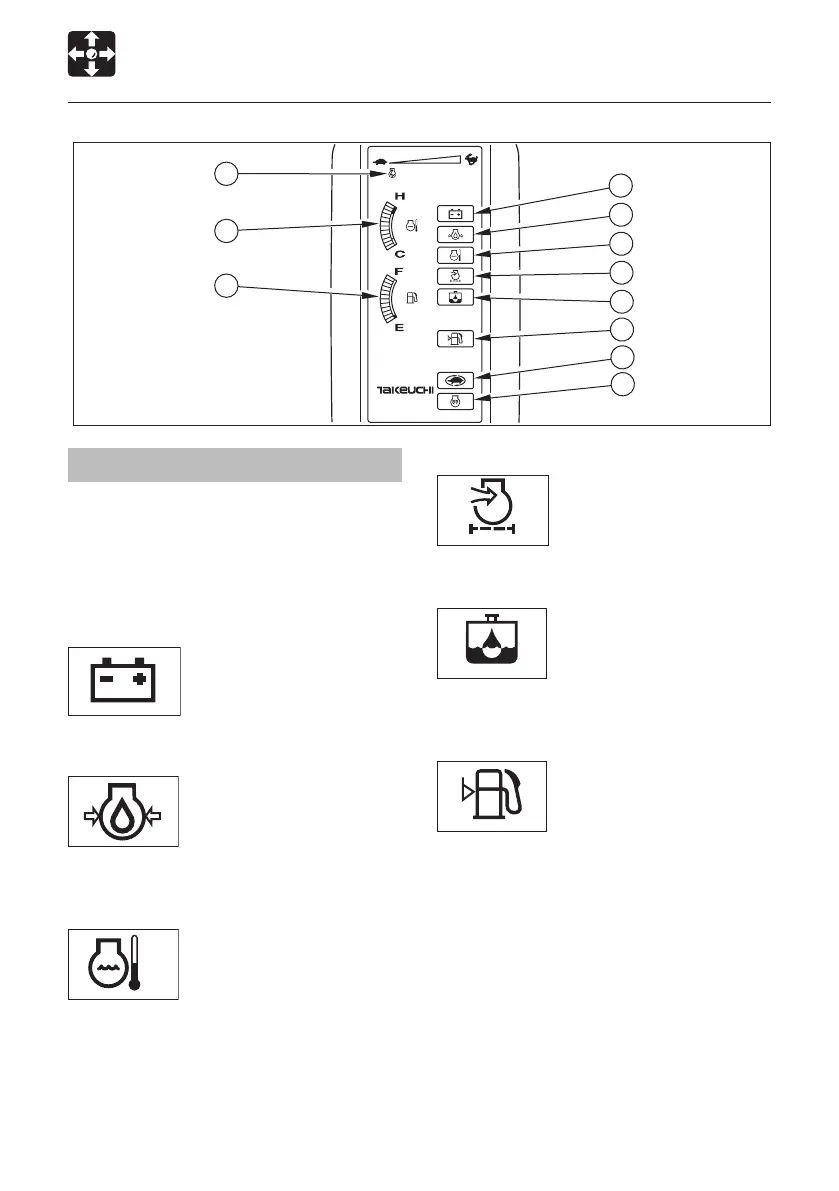

Instrument Cluster
Warning Lamps
IMPORTANT: If a warning lamp flashes and
an alarm is sounded, stop all operations
immediately and inspect and maintain the
appropriate part.
Refer to page 160 “Troubleshooting”.
1. Battery Charge Warning Lamp
This lamp flashes and an
alarm is sounded if a problem
arises in the charging system
while the engine is running.
2. Engine Oil Pressure Warning Lamp
This lamp flashes and an
alarm is sounded if the
lubricant oil pressure drops
abnormally while the engine
is running.
3. Coolant Temperature Warning Lamp
This lamp flashes and an
alarm is sounded if the
engine coolant temperature
rises abnormally while the
engine is running.
4. Air Cleaner Warning Lamp
This lamp flashes and an
alarm is sounded if the air
cleaner filter is clogged while
the engine is running.
5. Water Separator Warning Lamp
This lamp flashes and an
alarm is sounded if the water
is detected within the water
separator while the starter
switch is in the ON position.
6. Fuel Level Warning Lamp
This lamp lights when the
fuel level is low while the
starter switch is in the ON
position.
L3B016
L
FC
H
W3B0101
10
11
9
1
2
3
4
5
8
7
6
C4B012
C4B030
G4B010
L3B015
C4B031
