If a Fuse Blows
If a light does not turn on or the electric
system does not operate, a fuse may be
blown. Inspect the fuses.
Inspecting and Replacing the
Fuse
WARNING
If the fuse blows as soon as it is replaced,
there is a problem with the electric system.
Continued use may lead to fire. Consult a
Takeuchi sales or service outlet.
1. Turn the starter key to the OFF position and
stop the engine.

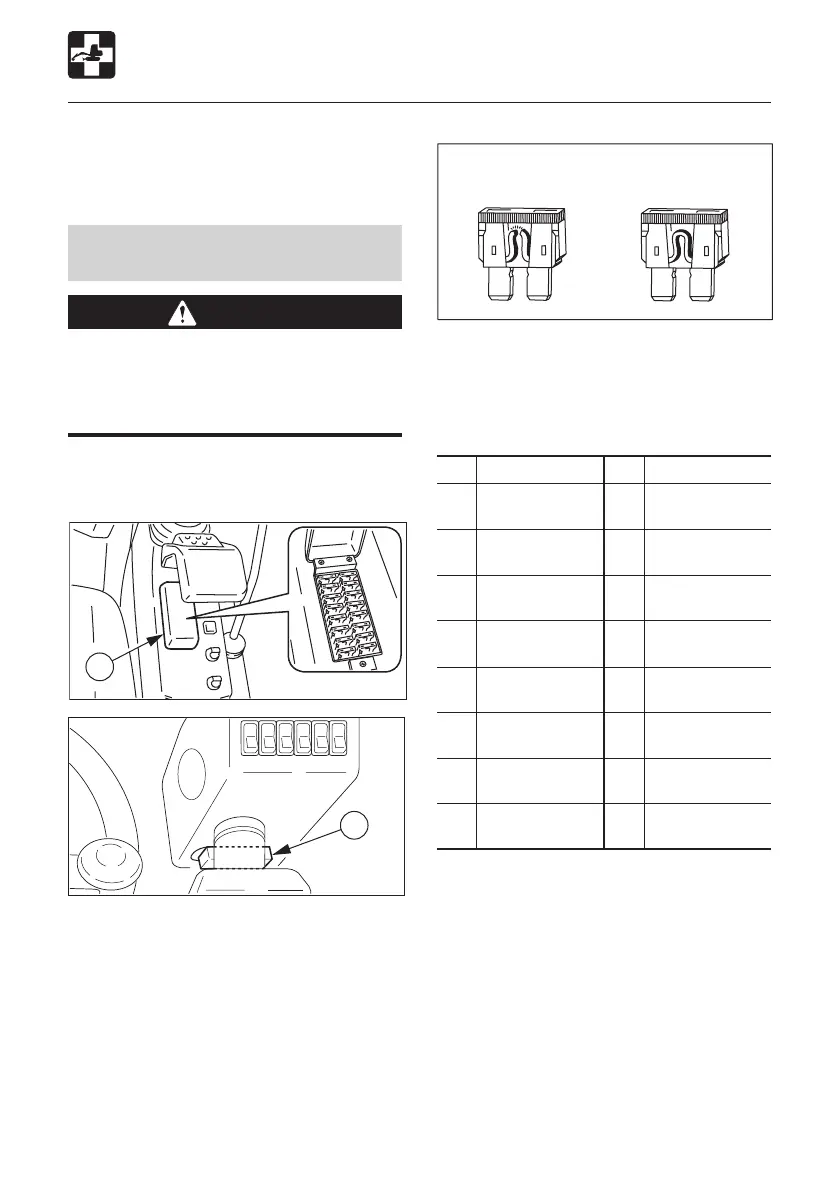

2. Open the fuse box cover (1) or (2).
3. Inspect for any blown fuses.
4. If a fuse is blown, replace it with a spare
fuse of the same capacity.
Fuse Layout and Circuits Protected (1)
10
10
10
20
20
10
20
10
5
10
5
10
20
20
20
10
1
L3J002
Capacity Capacity
Protected circuit Protected circuit
5A Starter switch
10A Solenoid
(Opt.)
10A Wiper,
Radio
30A Air conditioner
(Opt.)
10A Option
30A F. S. pump
5A Horn,
Radio (B)
10A T-ECU (B)
10A Turn signal
10A Lever lock
5A Instrument
cluster
10A Solenoid
10A T-ECU
10A Sensor
5A Feed Pump
5A E-ECU (IG)
To Next Page
