57
CONTROLS
Levers and Pedals

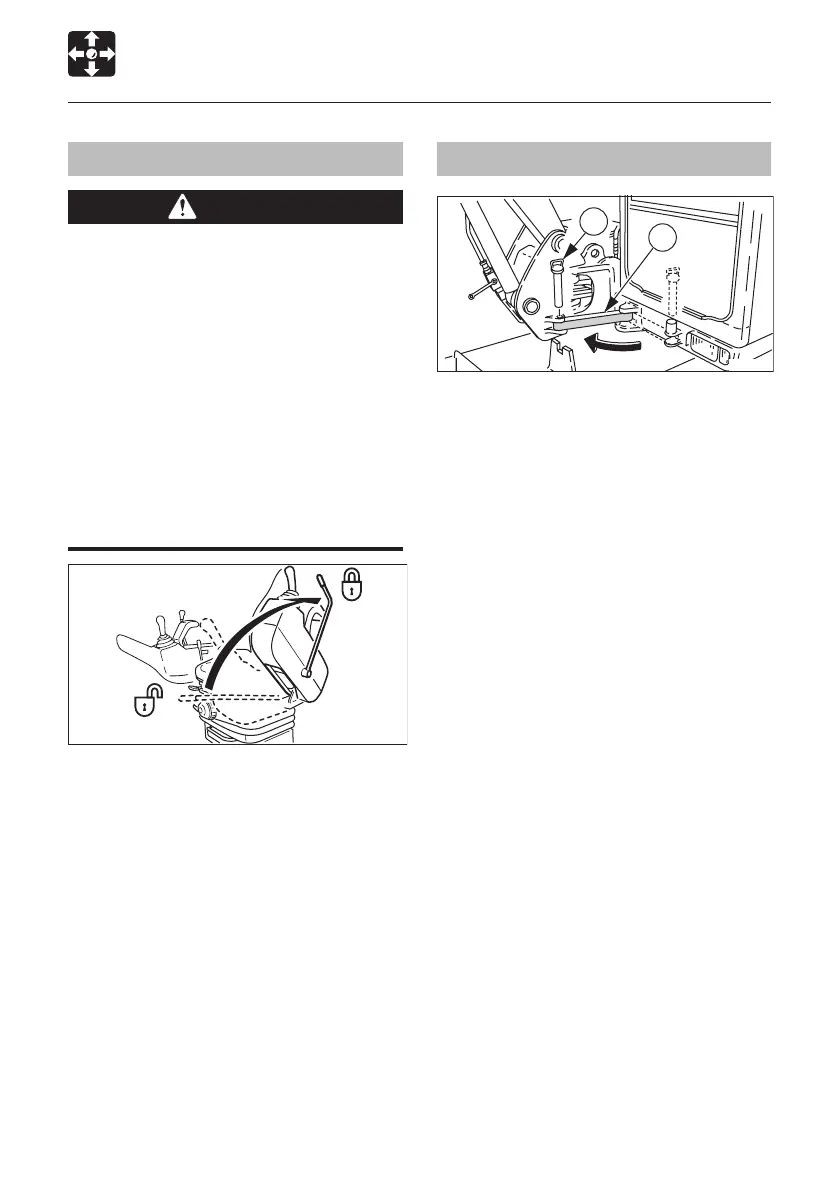

Swing Lock Pin
To lock the hoe attachment and upperstructure
for transport and on-road driving use the pin
as follow:
1. Lift the pin (1) out of the bracket near the
operator’s seat.
2. Swing the coupling (2) forward.
3. Align equipment and upperstructure.
4. Lower the pin (1) fully into the lock.
IMPORTANT: Operation of the excavator
and slewing of the upperstructure is
possible only if the pin is in the bracket
near the operator’s seat. A side from small
correctional movements, any swinging
can result in damage to the machine.
Safety Lock Lever
WARNING
� Before leaving the operator’s seat, set
the safety lock lever securely to the
lock position and stop the engine. If any
controls should be touched accidentally
when the safety lock lever has not be
locked, the machine will move suddenly,
and cause serious injury or death.
�
Note that the dozer blade control is not
locked, even when the safety lock lever
is set to the lock position. Do not touch
this control accidentally.
�
Be careful not to touch the operating
levers when raising and lowering the
safety lock lever.
This device is for locking the hoe attachment,
auxiliary hydraulic systems and slewing.
When the lever is lifted, the lever stand springs
up and the lever is locked.
To Next Page
