Energier Apollo User Manual
20
Model No. AC Input Wiring Maximum torque of AC terminals
CH2.0M
CH2.0S
CH4.0S
CH3.0S
AC Output Wiring

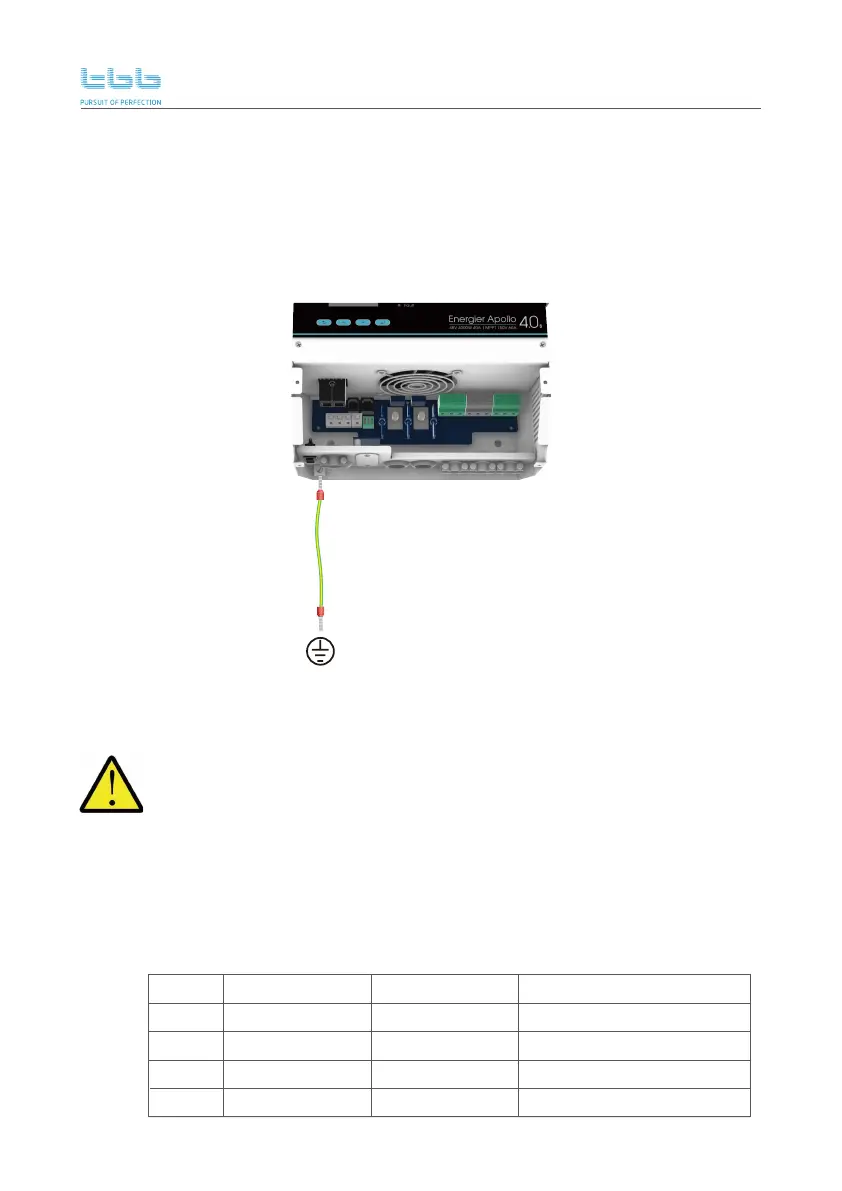

4.4 Connecting to earth
At the bottom of the enclosure, there is a ground terminal. See section 3.2 wiring area description.
Please connect it with EARTH or vehicle chassis by a 2.5~6mm green yellow wire (keep wire size
same as AC input cable).
4.5 Connection of AC cabling
This is a Safety Class I product (supplied with a protective grounding terminal).
Uninterruptible protective grounding must be provided at the AC input and/or output
terminals and/or chassis grounding point located externally on the product.
The AC input & output terminal connector can be found on the bottom of Energier
Apollo, see section 3.2 wiring area description. The shore or mains cable must be
connected to the connector with a three-wire cable with a flexible core.
Please find the following minimum wire size.
2.5~6.0mm
2
2.5~6.0mm
2
4.0~6.0mm
2
6.0mm
2
2.5mm
2
2.5mm
2
4.0mm
2
4.0mm
2
2Nm
2Nm
2Nm
2Nm
2
PE
