AOperating instructions for the machine
C
Ref. DCD01/3078 - TD412_en_C
16/62
5. Dimensional drawings

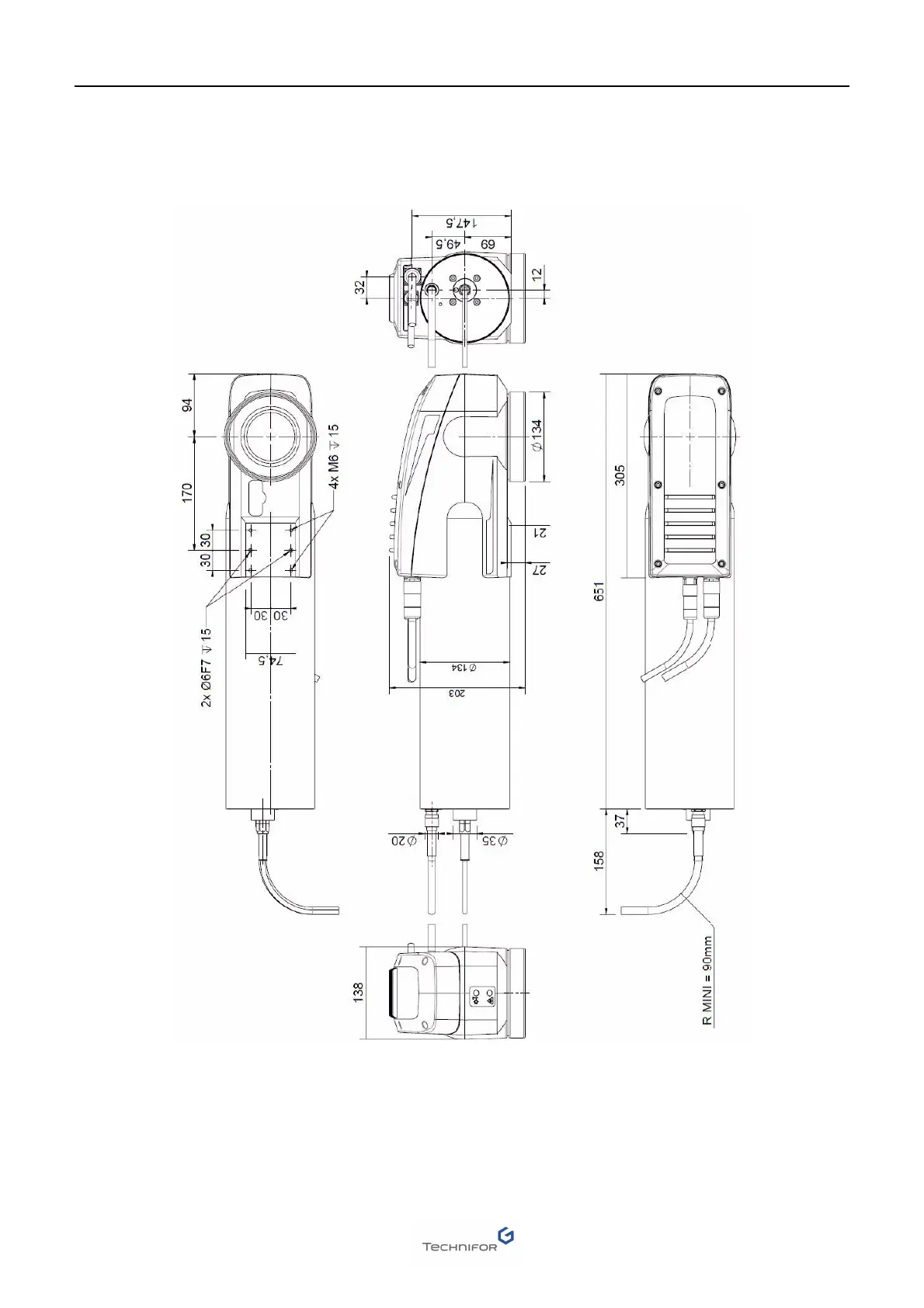

TD412 dimensional drawing
Units: mm
Optical fiber: the optical fiber connecting the CCU to the Laser module must never be bent to a radius of below 90 mm (3.543 in).
