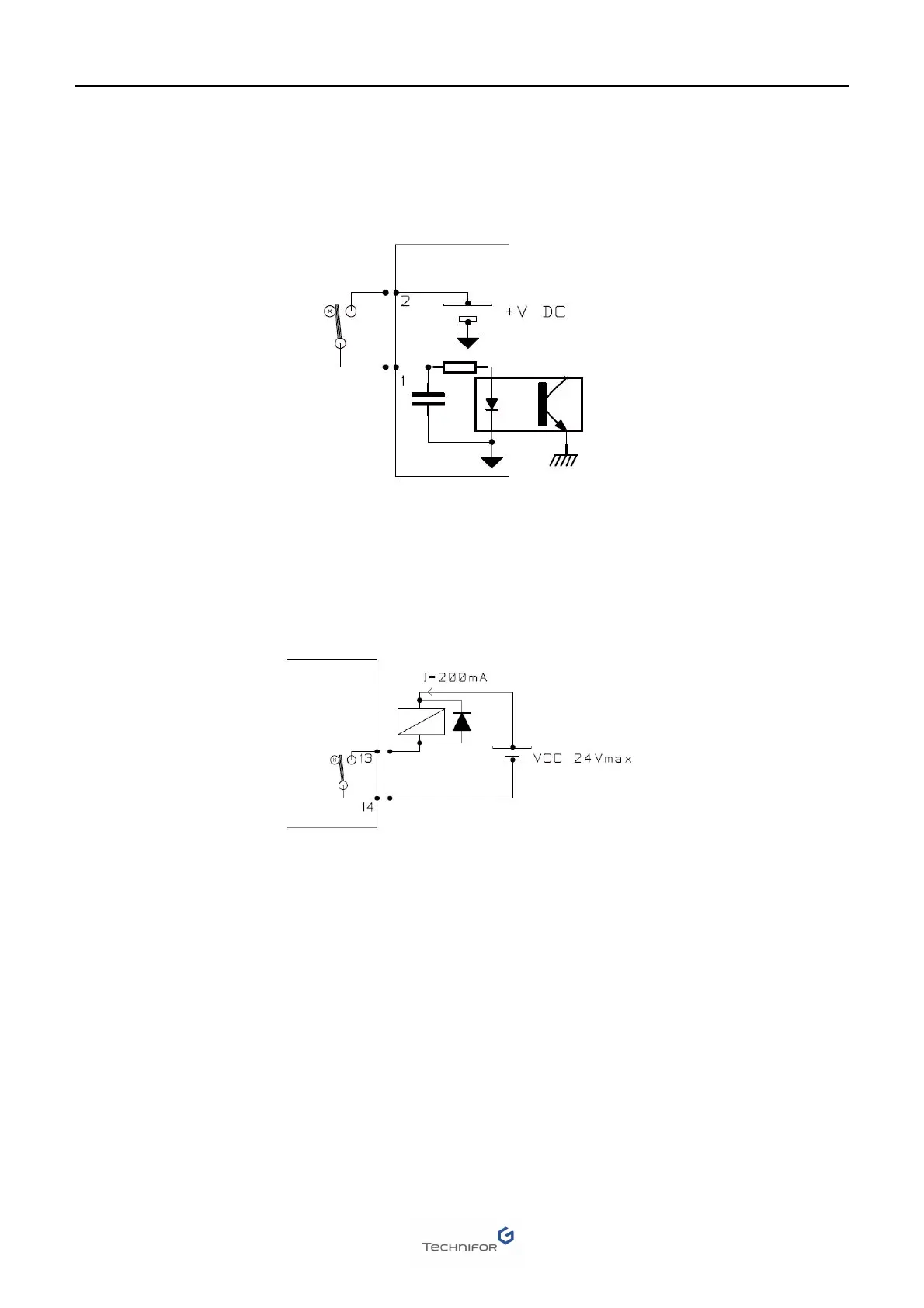

 Characteristics of the Inputs

6 optoisolated Inputs are available and controllable by positive logic.

Intensity consumed per Input: approximately 10 mA

Example of wiring for an Input - dry contact: Input I0

 Characteristics of the Outputs

2 relay-type outputs are available.

Maximum voltage: 24 V DC

Maximum current: 200 mA

Example of wiring for an Output - dry contact: Output S0

CCU side

Shielded charge with

freewheeling diode
