AInstallation
D
Ref. DCD01/3078 - TD412_en_C
30/62
5. Laser startup

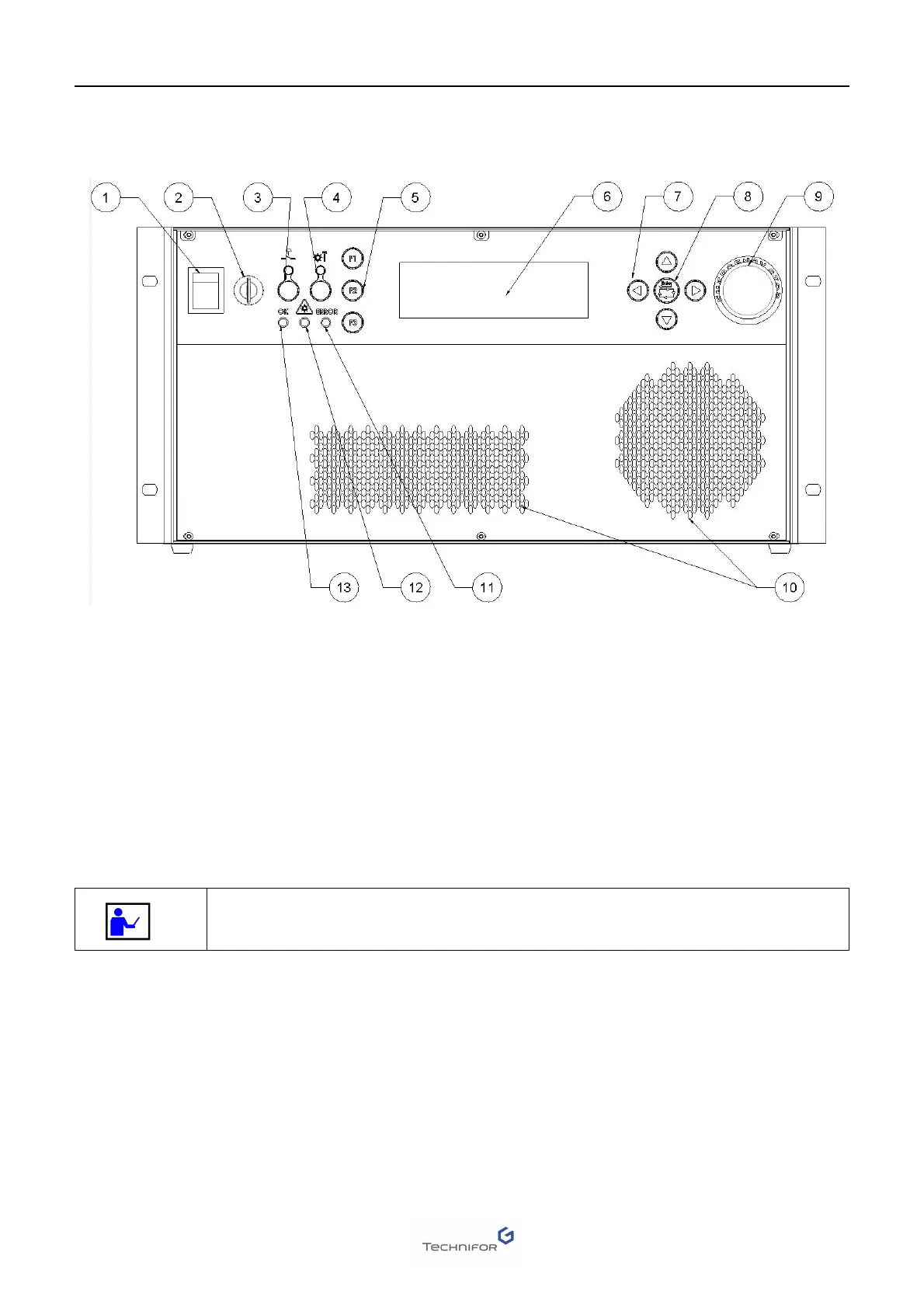

CCU front panel
1 : Power switch
2 : Laser safety key - Used to turn on/off the laser.
3 : "Safety circuit reset" button
4 : "Shutter" key - When the light is on, the beam is passing.
5 : Function keys: F1, F2, F3
6 : Backlit screen
7 : Up - Down - Left - Right arrows
8 : "Validation" key + aiming diode/focusing diode management
9 : Emergency stop push button
10 : Air inlet
11 : "Error" light - See: Summary table of the error codes
12 : "Laser emission" light - Turns on when the laser is emitted.
13 : "OK" light (at the end of start-up)
Before starting up the laser, remove the protection cap from the lens and retain it for
any subsequent removals.
