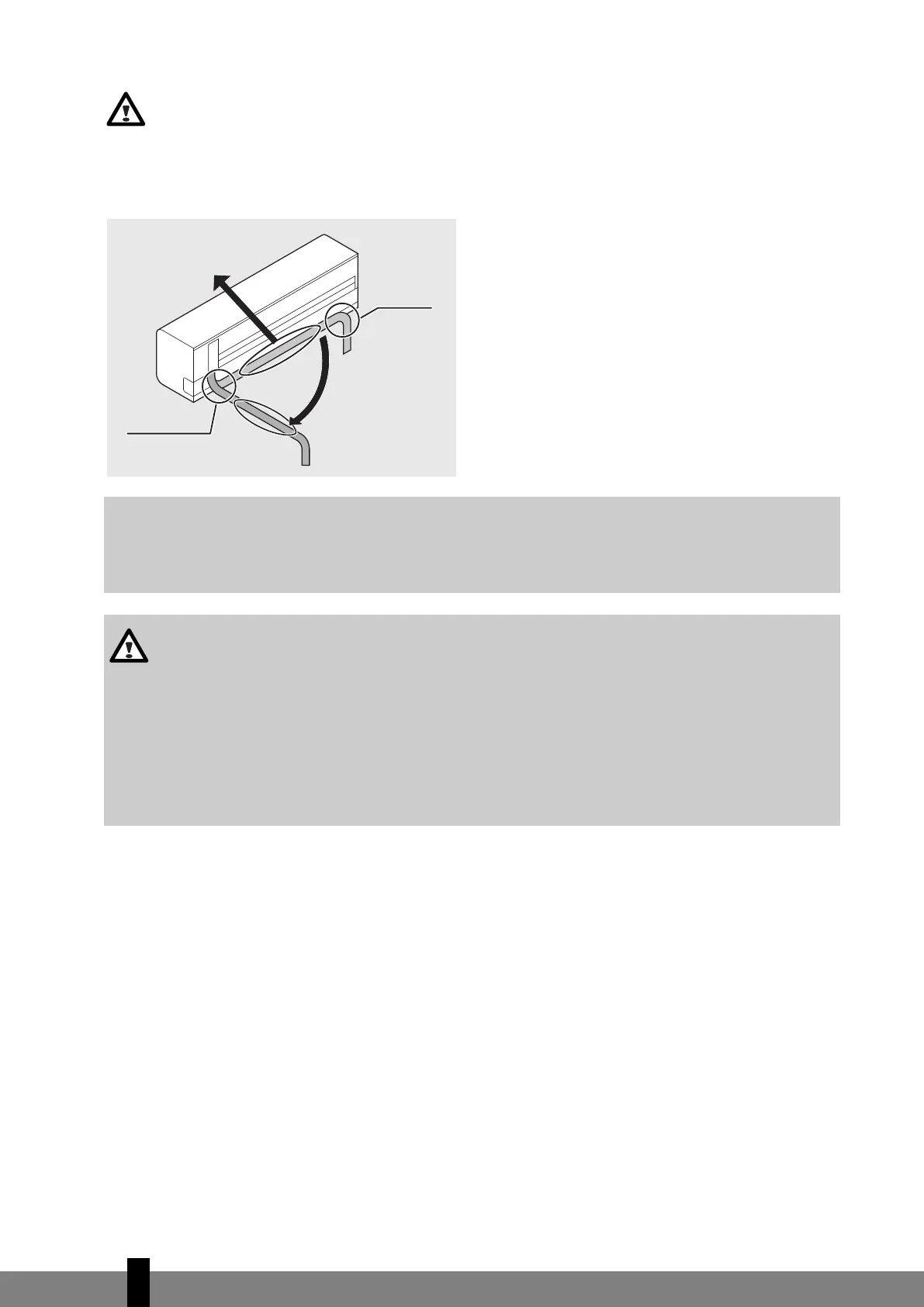

See picture 11: Bending the refrigerant piping at the back of the unit needs to be done with the hig-
hest care! The piping consists out of cupper. When bending the highlighted part more than 1 time the Cupper
will start cracking due to a physical process. Cracking can cause leakage refrigerant leakage and is not cove-
red by the warranty.
Fig. 11
5. Piping and wrapping
Bundle the tubing, connecting cable, and drain hose with tape securely, evenly as shown in Fig.9.
OUTDOOR UNIT INSTALLATION
Outdoor installation precaution
• Install the outdoor unit on a rigid base to prevent increasing noise level and vibration.
• Determine the air outlet direction where the discharged air is not blocked.
• In the case that the installation place is exposed to strong wind such as a seaside, make sure the fan
operating properly by putting the unit lengthwise along the wall or using a dust or shield plates.
• Specially in windy area, install the unit in such way that the admission of wind is prevented.
• Be sure there are no obstacles blocking the airflow.
Do not bend!
Bend
(Only 1 x)
Bend
(Only 1 x)
G
ATTENTION
• Because the condensed water is gathered in ponding box and is piped out of room. Do not put
anything else in the box.
• Connect the indoor unit first, then the outdoor unit. (TS 4xx)
CAUTION
• Be careful not to let the drain hose slack.
• Heat insulate both of the auxiliary piping.
• Be sure that the drain hose is located at the lowest side of the bundle. Locating at the upper
side can cause drain pan to overflow inside the unit.
• Never intercross nor intertwist the power wire with any other wiring.
• Run the drain hose sloped downward over the whole length to drain out the condensed water
smoothly.
4
