Tektronix 466 User Manual

TIME DIFFERENCE BETWEEN
REPETITIVE PULSES (DM44)
Set the controls as follows:
FUNCTION
HORIZ DISPLAY
B SOURCE
A
TIME/DIV
B TIME/DIV
fl TIME
VAR TIME/DIV
TIME
AINTEN
ST ARTS AFTER DELAY
To display 2 pulses
3
or 4 positions more
cw than A TIME/DIV
To move the time-
measurement
point to
the
right of the ref-
erence point
Detent position
Position the display
approximately as shown in Fig.
31A. Use the DELAY
TIME POSITION control to move the
reference
point to the first pulse. Both intensified zones
will move when the DELAY
TIME POSITION control is
adjusted. Use the fl TIME control to move the time-
measurement
point to the second pulse.
100
-~----+-----+---+--+----+-~~ --
(A) A DISPLAY
100
90
I
I
I
I
0
0
:
I i
I
!
i
i
i I
!
I
I
I
i
I
I
I
(8) B DL Y'D DISPLAY
i
I
:
I I
I
1
I
i
I
i
I
I
I
: J:: I I J
'-0 AND©~
SUPERIMPOSED
I
+--
I
i I
I
(1737-10)2037-31
Set the HORIZ DISPLAY switch to B DLY'D. Slightly
readjust the
fl TIME control to superimpose the
waveforms (see Fig.
31 B). The DELAY TIME POSITION
control may need to be slightly readjusted to keep the
display on screen. The Readout and Scale Factor Lamps
now indicate the time difference between the pulses.

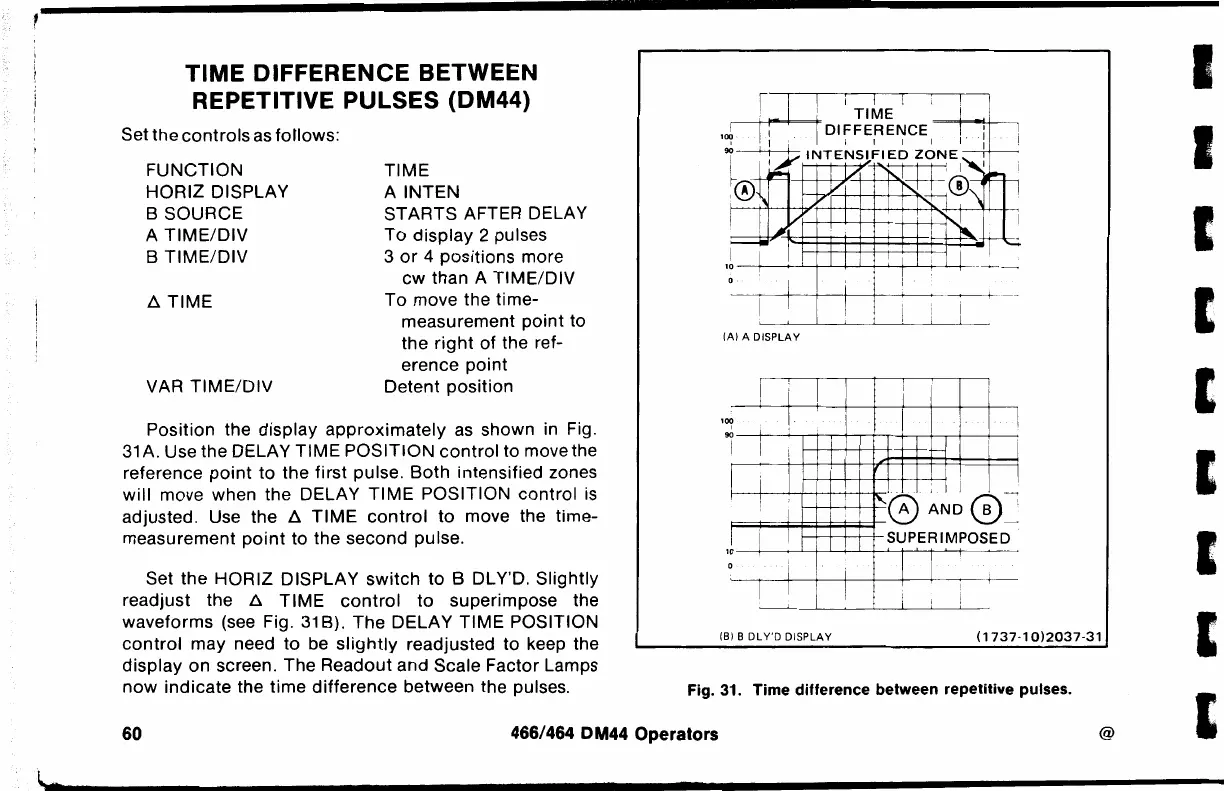

Fig. 31. Time difference between repetitive pulses.
60 466/464 DM44 Operators
@
I
I
E
I
