Removal and Installation Procedures
6-18 AFG3000 Series Arbitrary/Function Generators Service Manual
Fan
You will need needle-nose pliers and tweezers.
Removal. To remove the fan, refer to Figure 6-14 and follow these steps:
1. Use needle-nose pliers to bend the two fan-bracket tabs out of the way.
2. Remove the fan.
3. Disconnect the fan cable from the CPU board.

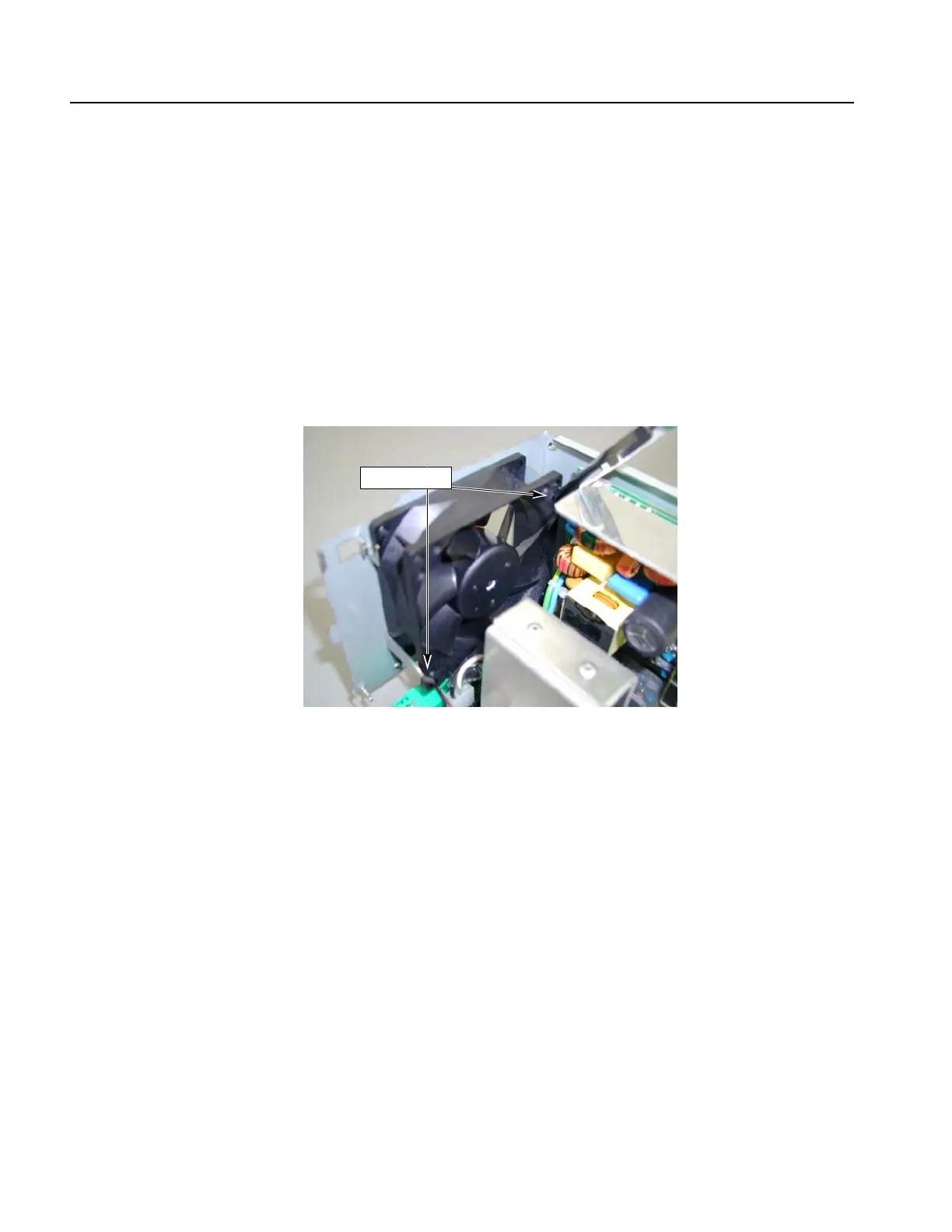

Figure 6-14: Fan removal
Installation. To install the fan, follow these steps:
1. Connect the fan cable to the CPU board at J920.
2. Align the fan with the fan-bracket. Align the fan so that air blows out the side
of the chassis, not into the chassis.
3. Use the pliers to bend the two fan-bracket tabs into place and secure the fan.
Fan-bracket tabs
