Section 1: Introduction Model 4200A-SCS Setup and Maintenance User's Manual
1-6 4200A-908-01 Rev. A December 2020
Front-panel overview
Many controls and interfaces are on the front panel of the 4200A-SCS Parameter Analyzer. The next
figure shows the front panel of the 4200A-SCS. The components are summarized following the figure.

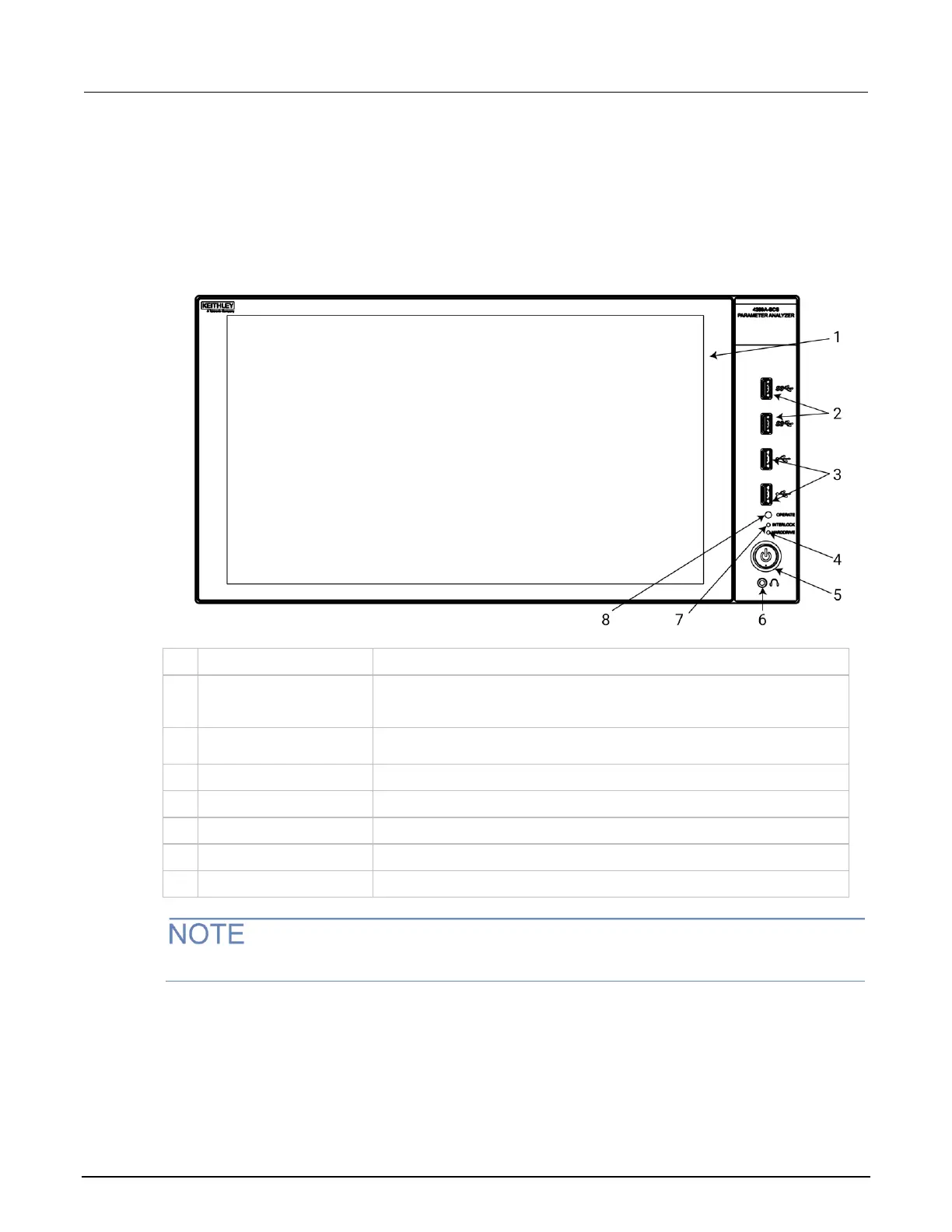

Figure 2: 4200A-SCS front panel
1
Display
A 1920 x 1080 full HD resolution touchscreen display.
2
Two v3.0 USB ports
Allows you to connect to peripherals such as flash drives, pointing devices,
scanners, and external hard drives that are compatible with the USB v3.0
standard.
3
Two v2.0 USB ports
Allows you to connect to peripherals that are compatible with the USB v2.0
standard.
4
Hard drive indicator
Illuminates when the hard drive is being accessed.
5
Power switch
Turns the main system power on or off. Illuminated when the power is on.
6
Headphone connector
Provides a 1/8" stereo output connection.
7
Interlock indicator
Illuminates when the 12 V dc interlock circuit is closed.
8
Operate indicator
Illuminates when any internal cards are energized.
4200A-SCS-ND has no display and requires an external monitor.
