Tenda F3 User Manual

69

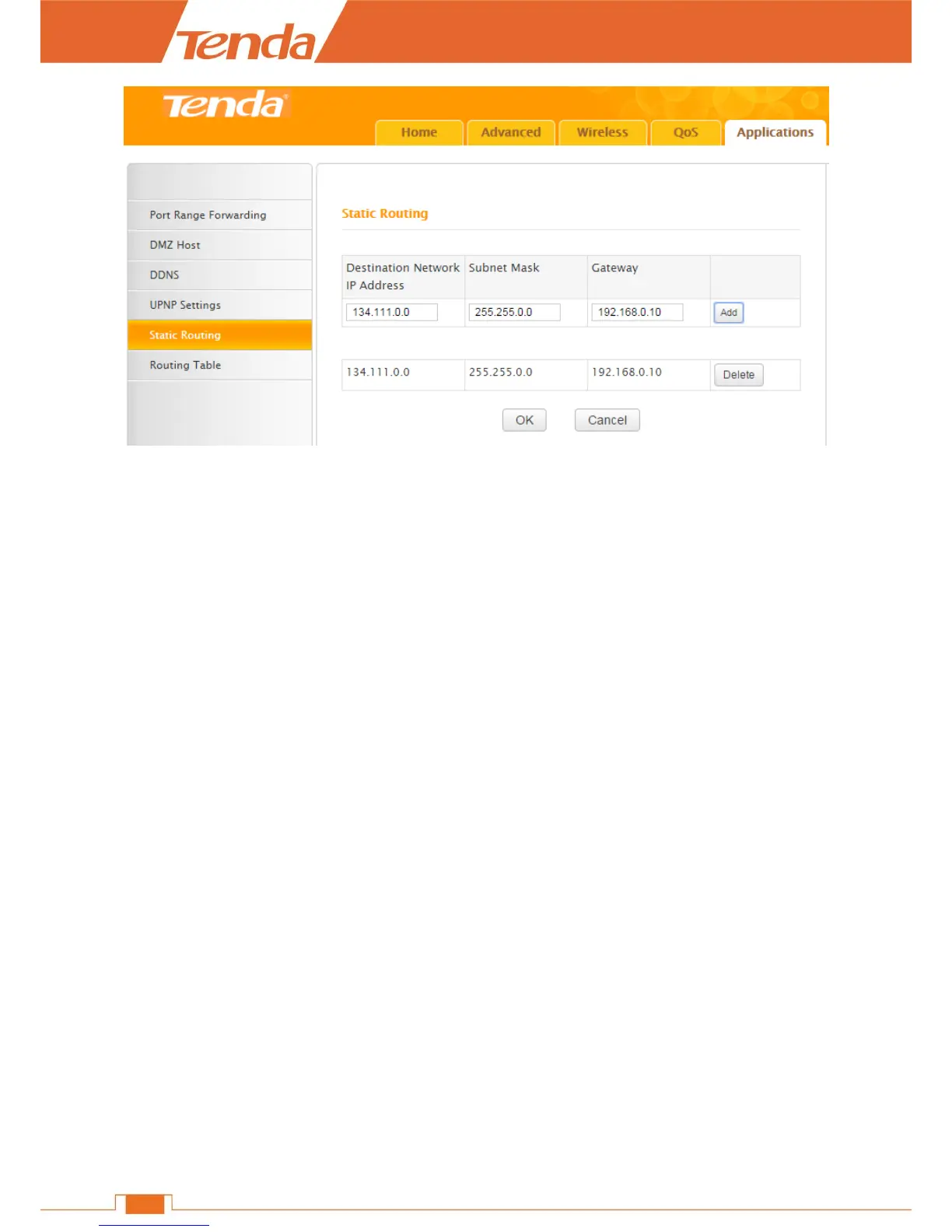

❶ Login to your Tenda Router’s User Interface, click Advanced (on the homepage) >
Applications > Static Routing to enter the setting page.
❷ Add a static route here.
Destination Network IP address: Enter the destination network range, “134.111.0.0”.
Subnet Mask: Enter the subnet mask of the destination network range, “255.255.0.0”.
Gateway: Input the LAN IP address of the next hop to which messages are forwarded from
Tenda Router, here “192.168.0.10”. Note that this Tenda Router and your located router should
be in the same network segment.
❸ Click Add to add the route to the list. Click OK to activate the settings.
Verification
Try visiting the Internet and MAN service from the computer or other connected wireless devices, if
you can visit them successfully, the static routing you set takes effect.
Routing Table
Statistics through the Router are transmitted according to the routing table.

Tenda F3 Specifications

General

Color	white
Wi-Fi Speed	300 megabits per second
Band Technology	single
Frequency Band	2.4 ghz
Beamforming	yes
Ethernet Standard	10/100
Ethernet Switch	yes
Wireless Standard	n
Antennas	3
Firewall	none
Data Encryption	yes
Encryption Type	wpa, wpa-psk, wpa2, wpa2-psk
Security Features	wpa algorithm: aes, tkip, tkip&aes; wireless access control: mac address filtering
Ports	rj-45
LAN Ports	3
WAN Ports	1

Weight and Dimensions

Height	1.02 inches
Width	5.02 inches
