Tenda F3 User Manual

71
❶ Filter Mode: Select Forbid Only from the pull-down menu.
❷ Access Policy: Select the serial number of the access policy. The maximum policy is 10.
❸ Policy Name (Optional): Enter a descriptive name for the policy, or leave it blank.
❹ Start IP, End IP: Enter 2 and 254 in the corresponding field to limit all computers on the LAN.
To restrict only one device, input the same number in corresponding field. For example, if the IP of
the device you want to restrict is “192.168.0.13”, enter “13” in both Stat IP and End IP field.
❺ URL Character String: Enter a domain name you want to restrict, say “youtube”.
❻ Time, Day(s): Select 8:00~18:00, Mon~Fri.
❼ Check Enable to activate your settings.
 Click OK to save the settings.
How to disable URL Filter?
Select disable from the pull-down menu of the Filter Mode option and click OK.

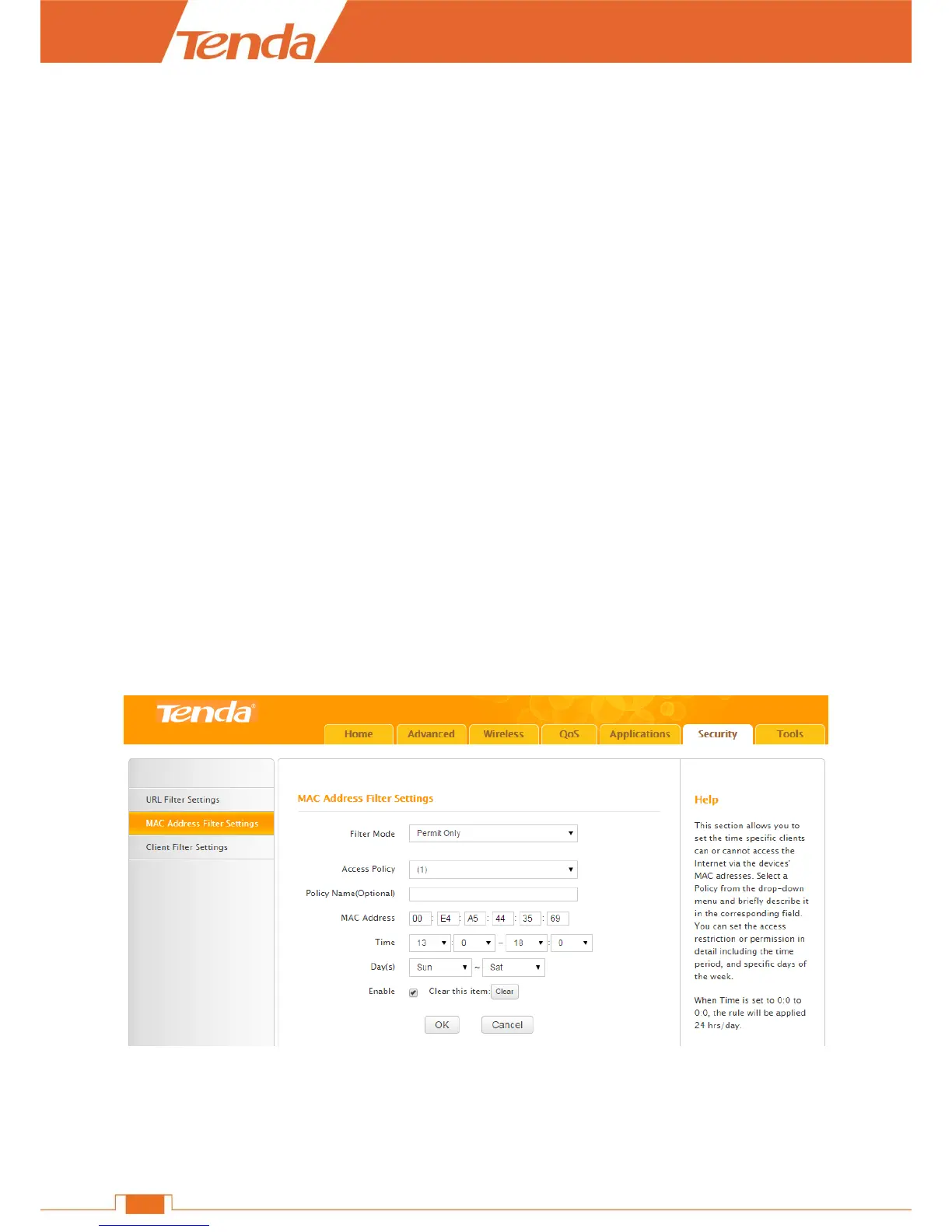

MAC Address Filter Settings
By filtering the MAC address of the wanted devices, you can control their Internet access.
Example
To allow the computer (MAC address—00:E4:A5:44:35:69) to access the Internet from
13:00~18:00 on Sunday to Saturday, do as steps below.
❶ Filter Mode: Select Permit Only from the pull-down menu.
❷ Access Policy: Select the serial number of the access policy. The maximum policy is 10.

Tenda F3 Specifications

General

Color	white
Wi-Fi Speed	300 megabits per second
Band Technology	single
Frequency Band	2.4 ghz
Beamforming	yes
Ethernet Standard	10/100
Ethernet Switch	yes
Wireless Standard	n
Antennas	3
Firewall	none
Data Encryption	yes
Encryption Type	wpa, wpa-psk, wpa2, wpa2-psk
Security Features	wpa algorithm: aes, tkip, tkip&aes; wireless access control: mac address filtering
Ports	rj-45
LAN Ports	3
WAN Ports	1

Weight and Dimensions

Height	1.02 inches
Width	5.02 inches
