DIGGER DERRICK
1-9
Digger Derrick Terex South Dakota, Inc. 463280 - 9/14
OPERATION GUIDELINES

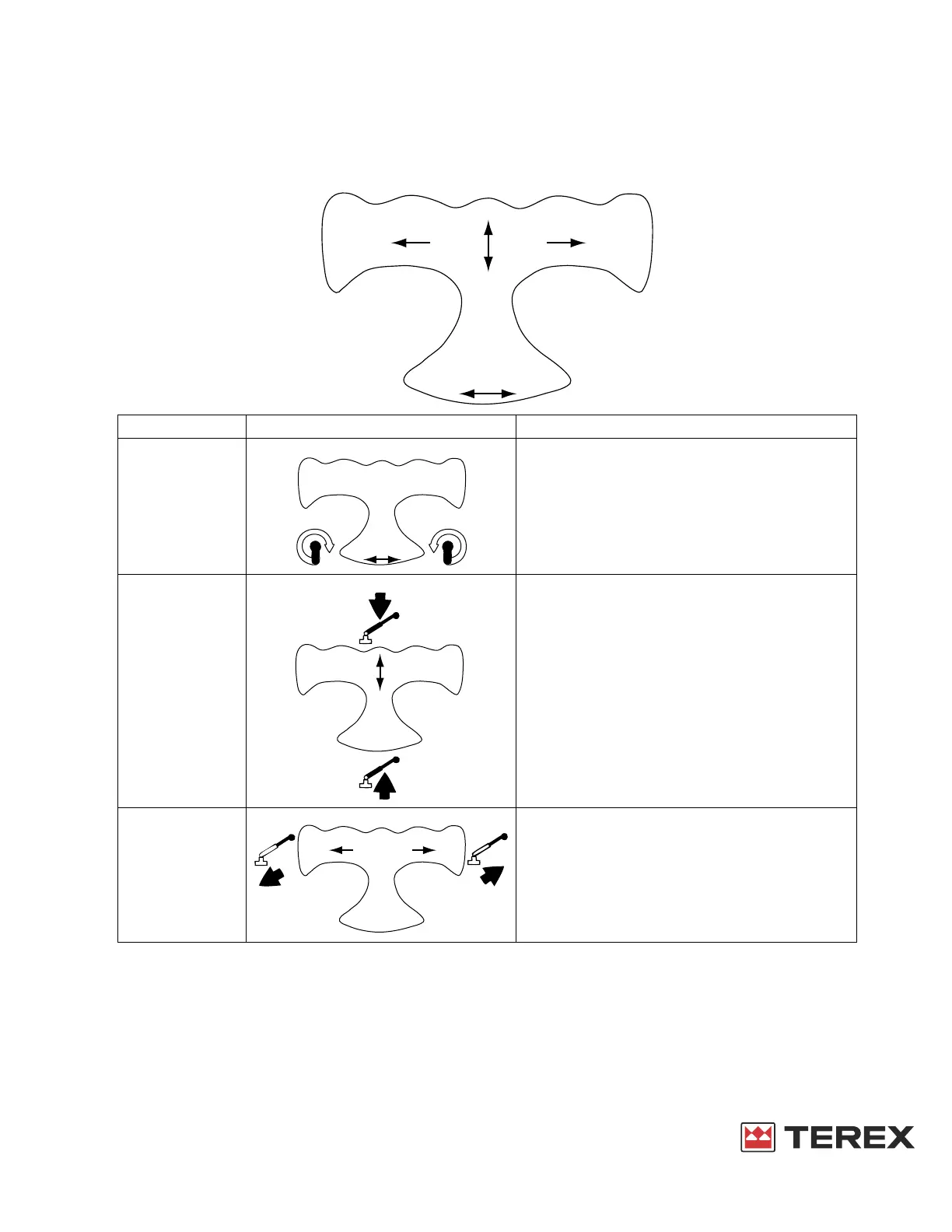

SINGLE STICK FUNCTIONS (IF EQUIPPED)
CONTROL ILLUSTRATION DESCRIPTION
Rotation Twist control counterclockwise to rotate boom
“LEFT“.
Twist control clockwise to rotate boom “RIGHT”.
Lift Push control to lower “DOWN” the boom.
Pull control to raise “UP” the boom.
Intermediate
Section (Second)
Tilt control to the left to retract “IN” the boom.
Tilt control to the right to extend “OUT” the
boom.
ROTATE
R
L
IN OUT
DOWN
UP
BO OM
ROTATE
R
L
DOWN
UP
BO OM
BO OM
IN OUT
