DIGGER DERRICK
1-33
Digger Derrick Terex South Dakota, Inc. 463280 - 9/14
OPERATION GUIDELINES

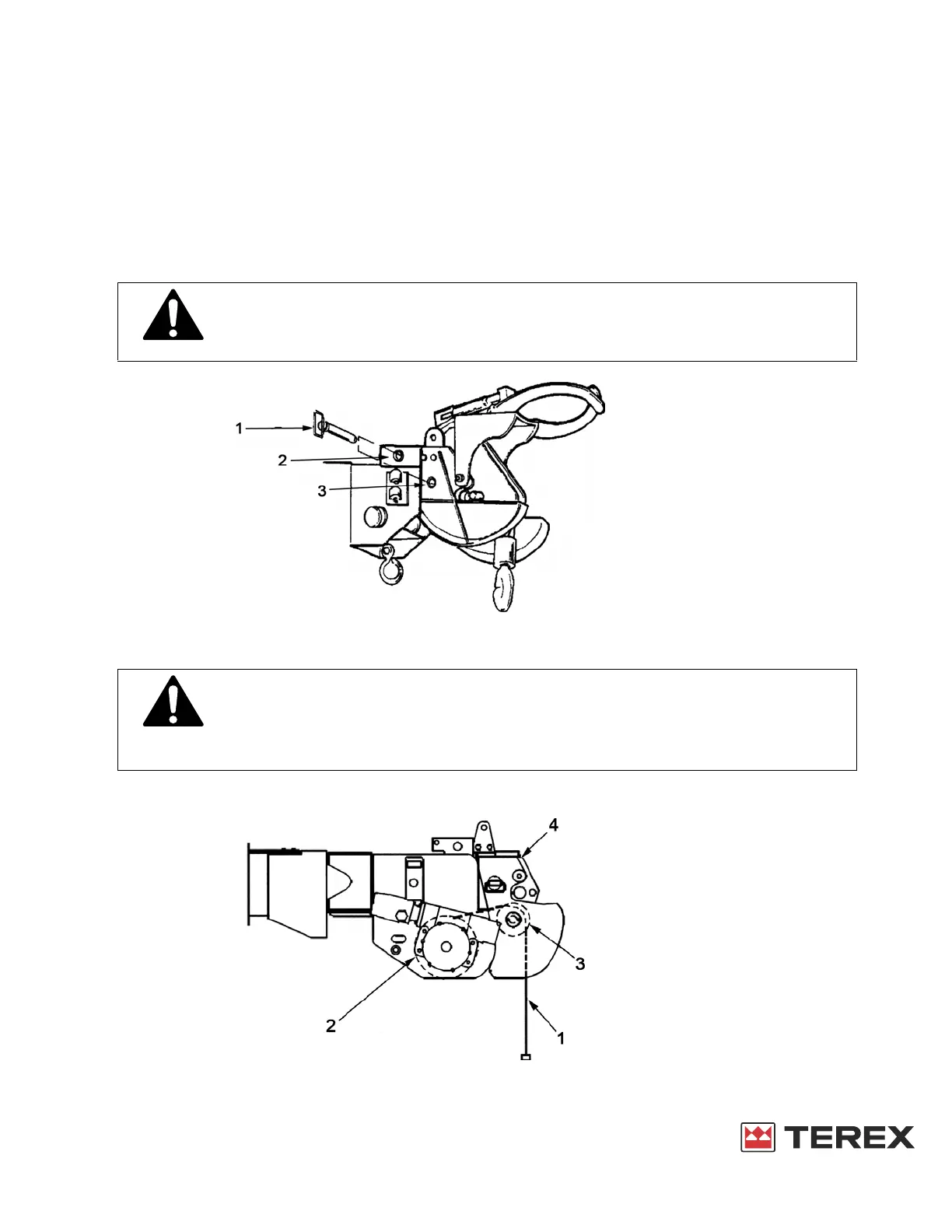

TRANSFERABLE POLE GUIDE (OPTIONAL)
Use the transferable pole guide when it is necessary to handle poles with the third section. Pin the
transferable pole guide to the second section so it remains with the second section when the Third section is
extended or pin it to the third section so it extends with the third section.
To transfer the pole buddy to the third section, retract the third section fully into the second section. Remove
the retaining pin from the second section and place it in the pin boss that retains the pole buddy to the third
section.
TRANSFERABLE POLE GUIDE W/POLE PLUMMER
When used with the boom tip winch, the winch line has to be routed as shown below.
WINCH LINE ROUTING BOOM TIP WINCH WITH TRANSFERABLE POLE GUIDE
When pinned on the second section, always raise the pole claws before extending
the third section to avoid damage to pole claws. To prevent the pole guide from
sliding down the third section, do not unpin from the second section with the third
section extended.
1. Retaining Pin
2. To attach to
2ND Section
3. To attach to
3RD Section
Route the winch line on any Digger Derrick with a transferable pole guide and pole
grabbing winch as shown in following graphic. At all times, the winch line must be
routed from the winch drum over the sheave in the third section.
Failure to route the winch line in this manner will result in damage to winch line
and serious injury or death.
1. Winch Line
2. Winch Drum
3. Sheave
4. 3RD Section
To Next Page
