DIGGER DERRICK
1-60
463280 - 9/14 Terex South Dakota, Inc. Digger Derrick
OPERATION GUIDELINES
AERIAL PLATFORM AND BRACKET INSTALLATION

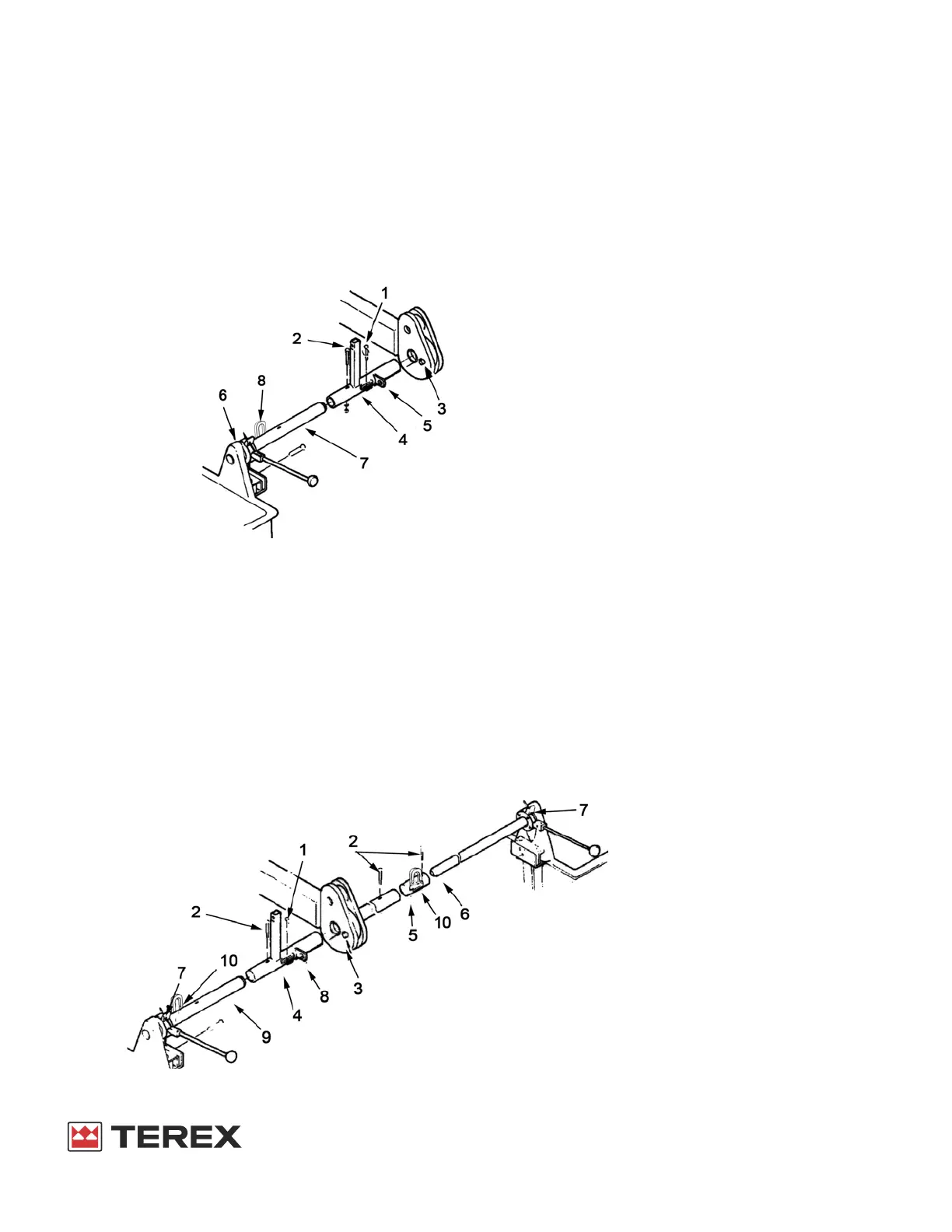

1. To install platform on the boom tip, use the following procedures:
a.Install sleeve (4) on platform mounting shaft (7). Insert bolt (2) through sleeve (4) and platform
mounting shaft (7). Secure with nut and lock washer.
b.Insert the platform mounting shaft (7) into the boom tip. Align ear (5) with stud (3).
c.When ear (5) is completely engaged with stud (3), install Klik pin (1).
RIGHT-HAND PLATFORM MOUNTING
NOTE: For left-hand platform installation with left-hand controls, use same procedure as above.
This installation will require a different sleeve.
2. To install dual platforms, use the following procedures:
a.Install sleeves (5) and (4) on platform mounting shaft (6). Install bolts (2) through sleeves (5) and (4)
and platform mounting shaft (6). Secure with nut (2) and lock washer.
b.Insert the platform mounting shaft (6) into boom tip. Align ear (8) with stud (3). When ear (8) is
completely engaged with stud (3), install Klik pin (1).
c.Install sleeve (4) on platform mounting shaft (9). Install bolt (2. through sleeve (4) and platform
mounting shaft (9). Secure with nut (2) and lock washer.
d.Insert the platform mounting shaft (9) into boom tip. Align ear (8) with stud (3). When ear (8) is
completely engaged with stud (3), install Klik pin (1).
DUAL PLATFORM MOUNTING
1. Klik Pin
2. Bolt, Lock washer, and Nut
3. Stud
4. Sleeve
5. Ear
6. Platform and Brake Assembly
7. Platform Mounting Shaft
8. Lanyard Anchor
1. Klik Pin
2. Bolt, Lock washer, and Nut
3. Stud
4. Sleeve
5. Sleeve
6. Platform Mounting Shaft
7. Platform and Brake Assembly
8. Ear
9. Platform Mounting Shaft
10. Lanyard Anchor
