DIGGER DERRICK
1-49
Digger Derrick Terex South Dakota, Inc. 463280 - 9/14
OPERATION GUIDELINES
HYDRAULIC TILT POLE PLUMMER (OPTIONAL)
Open the tilt pole plummer circular arms to allow the pole, retained by the winch line, to be nested into the
winch flanges. Then tilt the pole plummer either forward or backward to align the circular arms perpendicular
to the pole. Then close the arms around the pole. With this completed, the pole can be maintained vertical to
the pole hole.

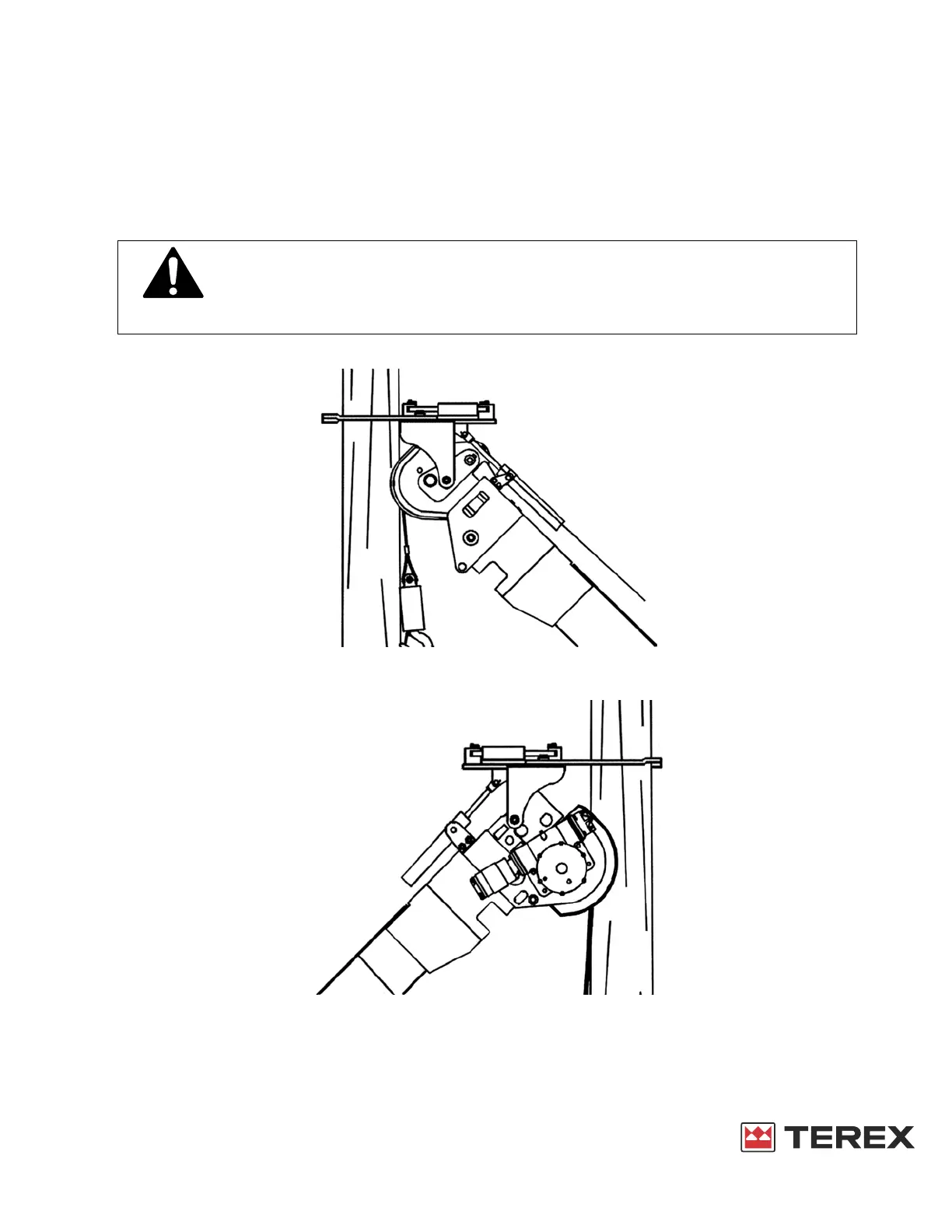

HYDRAULIC TILT POLE GUIDE WITH TURNTABLE WINCH
HYDRAULIC TILT POLE GUIDE WITH BOOM TIP WINCH
Use the pole guide arms as guides only. They should not be clamped tightly to the
pole or used to lift any of the pole weight. Use the winch line and winch flanges to
lift and retain the pole. When raising or lowering boom during the pole setting
operation, adjust the pole guide arms to a horizontal position. This helps prevent
damage to the pole guide arms.
