DIGGER DERRICK
1-62
463280 - 9/14 Terex South Dakota, Inc. Digger Derrick
OPERATION GUIDELINES
FULL PRESSURE HYDRAULIC TOP CONTROLS
EXTENDING AND STORING FULL PRESSURE TOP CONTROLS
To extend and store the top controls, use the following procedure:
1. Retract the second section and third section.
2. Remove Klik pin (1) from storage bracket (2) on main boom. Pull top controls (6) forward and store Klik
pin (1) on storage bracket (2).
3. Roll top controls (6) forward. Lift to clear latching mechanism (4). Lower and push latching stud (3)
against latching mechanism (4) until latch closes.
4. To store top controls (6), activate latch release mechanism (5). Remove Klik pin (1) from storage bracket
(2). Lift top controls to clear latching mechanism (4) and roll top controls (6) rearward to engage storage
bracket (2). Insert Klik pin (1).

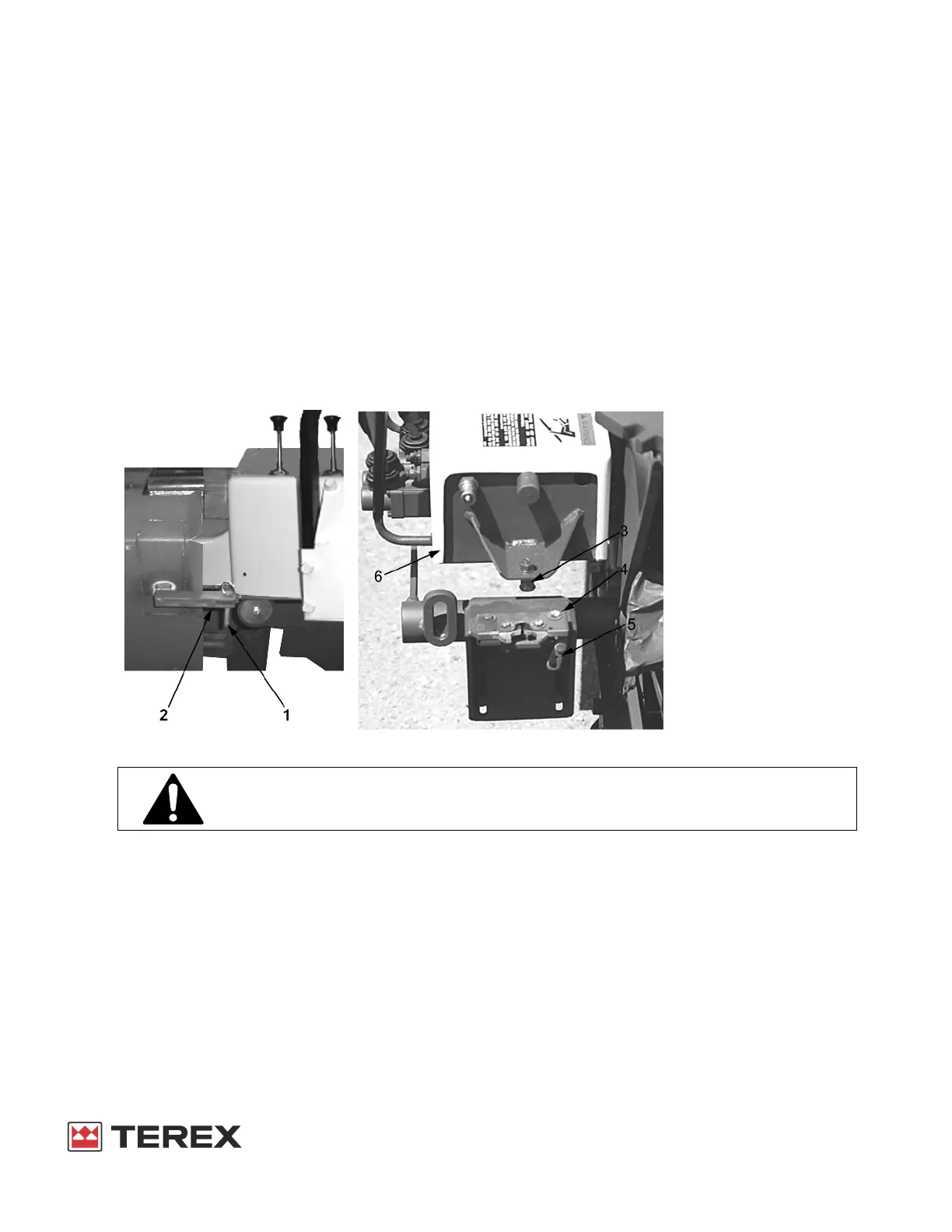

EXTENDING AND STORING TOP CONTROLS
1. Klik Pin
2. Storage Bracket
3. Latching Stud
4. Latching Mechanism
5. Latch Release Lever
6. Top Controls
Do not move vehicle with personnel in platform.
Do not perform digging or pole setting operations with personnel in platform.
