DIGGER DERRICK
1-50
463280 - 9/14 Terex South Dakota, Inc. Digger Derrick
OPERATION GUIDELINES
HYDRAULIC TILT POLE GUIDE TRANSFERABLE (OPTIONAL)
The same method of operation as the hydraulic tilt pole plummer applies; except it can be transferred from
the second boom section to the end of the third section.

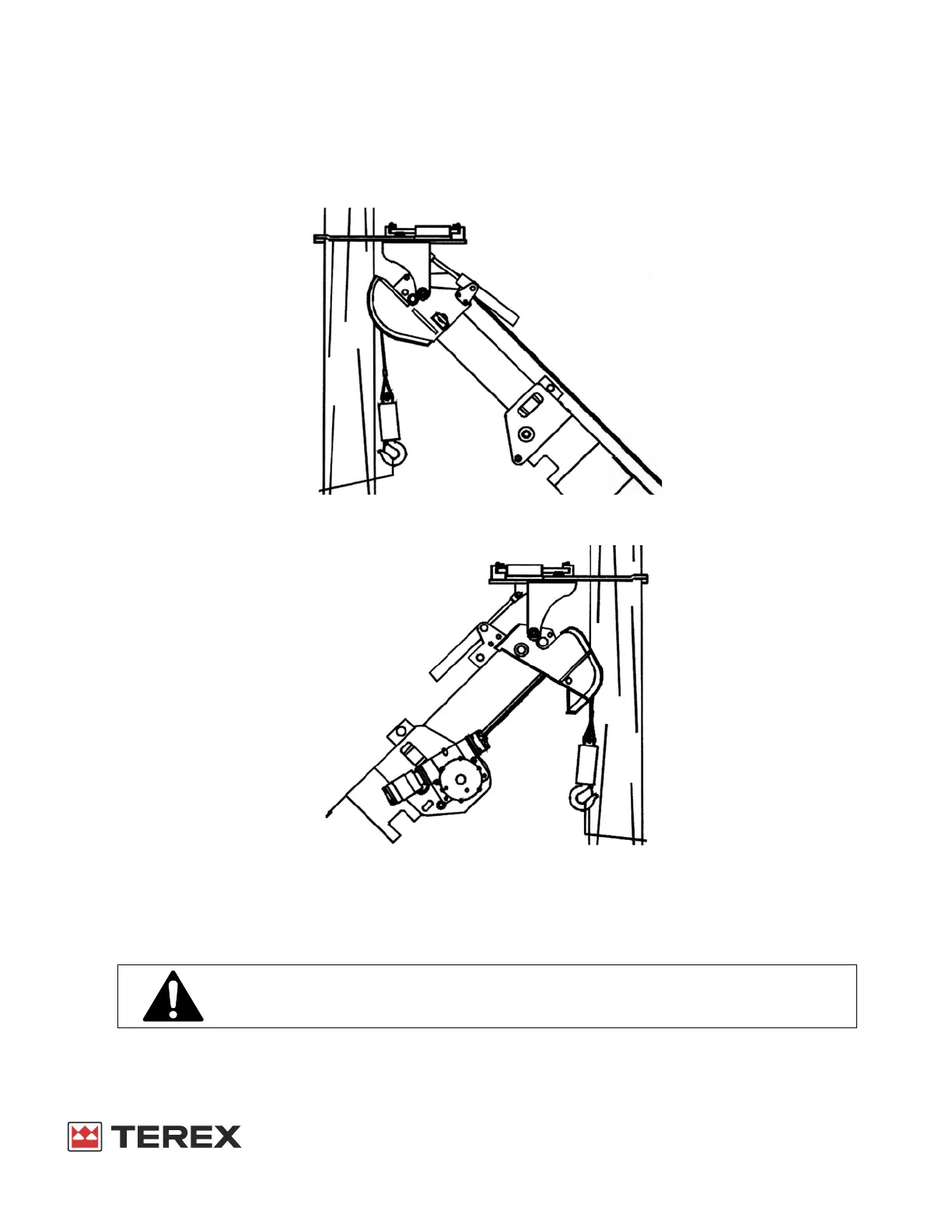

TRANSFERABLE TILT POLE GUIDE WITH TURNTABLE WINCH
TRANSFERABLE TILT POLE GUIDE WITH POLE GRABBING WINCH
POLE GUIDE INTERLOCK
An interlock is installed as an operator aid. It does not allow the third to extend unless the pole guide is
raised. Only lower the pole guide when pinned to third or third is fully retracted. Do not lower winch. It does
not prevent operator from lowering pole guide on third, once it is extended.
Do not lower TPP while third is extended. Damage to the third and load line may
occur.
