Terex R190T Service Manual

3 TECHNICAL DATA
32

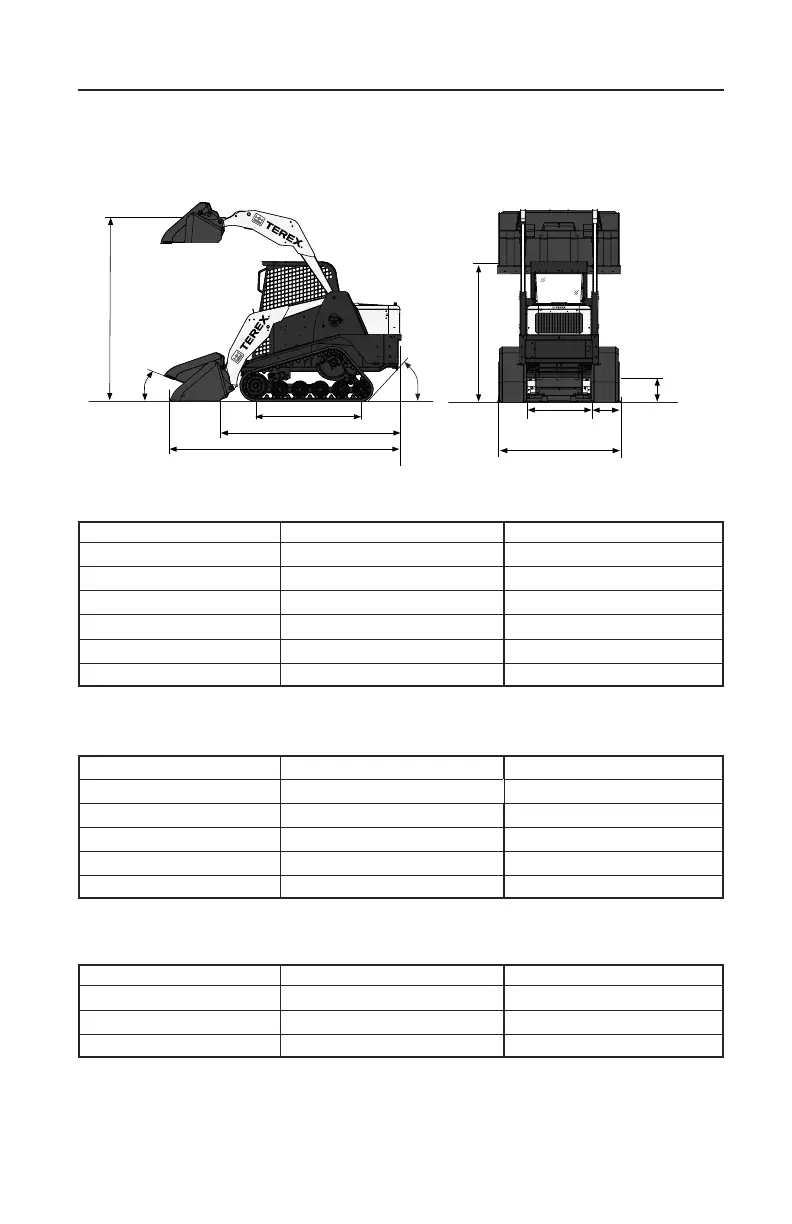

3.2 Views
3.3 Engine R160T [R190T]
3.4 Electrical System R160T [R190T]
3.5 Undercarriage R160T [R190T]
59 in (1499 mm)
100 in (2540 mm)
128 in (3251 mm)
91 in (2311 mm)
42
o
115 in (2921 mm)
xx
o
20
o
r
19
0
t
Make
Perkins Perkins
Type
404D-22 404D-22T
Design
Diesel, 4 cylinder Diesel, 4 cylinder (turbo)
Displacement
134 in. ³ (2.2L) 134 in. ³ (2.2L)
Power (2800 RPM)
50 hp (37.3 kW) 60 hp (44.7 kW)
Admissible inclines
30° in all directions (engine) 30° in all directions (engine)
Cooling
Water-antifreeze blend Water-antifreeze blend
Operating Voltage
12 V 12 V
Battery (32° F / 0° C)
12V 950 CCA 12V 950 CCA
Alternator
12V 65A 12V 65A
Starter
12V 12V
Starting Aid
Glow Plugs, w/ pre-heat Glow Plugs, w/ pre-heat
Li
g
htin
g
S
y
stem
Cab mounted work lights Cab mounted work lights
Type
Suspended, rubber track Suspended, rubber track
Max. Speed (Low / High)
8 mph (12.9 kph) 6 / 11 mph (10 / 17.7 kph)
Power Transmission
variable disp. / axial piston variable disp. / axial piston
Track length, on ground
59 in. (149.9 cm) 59 in. (149.9 cm)
R160T / R190T US O&M
0404-490 2014-06
66 in (1676 mm)
12 in
(305 mm)
77 in (1956 mm)
15 in
(381 mm)
36 in
(914 mm)
(305 mm)
12 in
30 in (762mm)
[36 in (914mm)]
60 in (1524mm)
[66 in (1676mm)]

Terex R190T Specifications

General

Brand	Terex
Model	R190T
Category	Compact Loader
Language	English
