4 MACHINE DESCRIPTION / CONTROLS
4.8 Electric Attachment Control

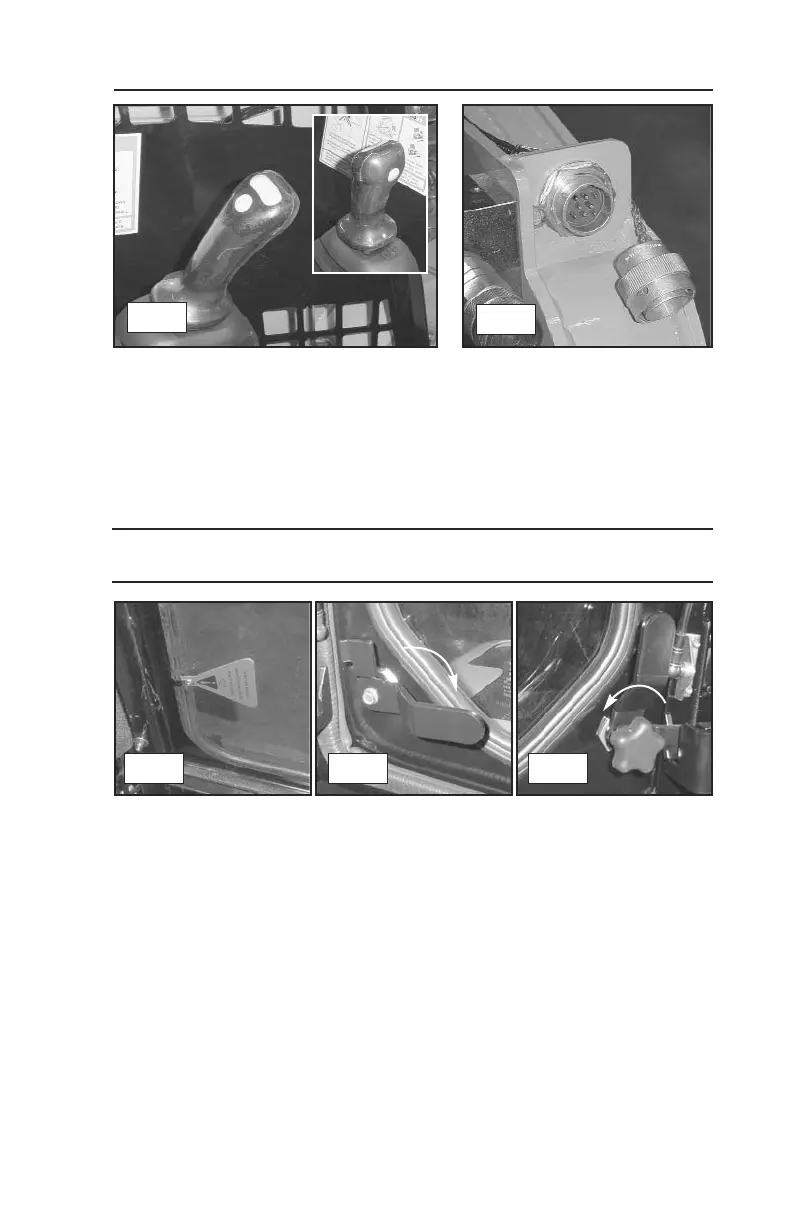

Attachments for the R160T / R190T are controlled by pressing various buttons on
the machines joysticks. Most attachments are controlled hydraulically, but some
require both hydraulic and electrical inputs. The 4 buttons on the left joystick
(4.8-1) send electrical current to the receptacle on the lift arms (4.8-2).
Compatible attachments that require electrical inputs have a matching receptacle.
Note: The electrical receptacle is not necessarily compatible with other brands.
Use only compatible attachments for proper function (see section 4.10).
4.9 Emergency Exits
Familiarize yourself with the emergency exits and associated features located
throughout the cab enclosure prior to operation. These features allow an operator
to escape from the cab in an emergency.
Operator Escape (Door Exit): Firmly grasp the triangular tag attached to the win-
dow molding on the front door. Pull on the tag forcefully to remove the window
molding, then push or kick the window out to escape (fig. 4.9-1).
Operator Escape (Rear Hatch Exit):
1.Firmly grasp the lever on the left side of the rear window hatch assembly and
pivot it inward and downward as shown (fig 4.9-2).
2.Firmly grasp the red knob on the right side of the rear window (secures the
lever to the hatch) and rotate it counterclockwise to remove it. Push the hatch
outward forcefully at the bottom to open and escape (fig. 4.9-3).
4.8-1
4.8-2
4.9-1
4.9-2
unlock
4.9-3
rotate CCW
R160T / R190T US O&M
0404-490 2014-06
