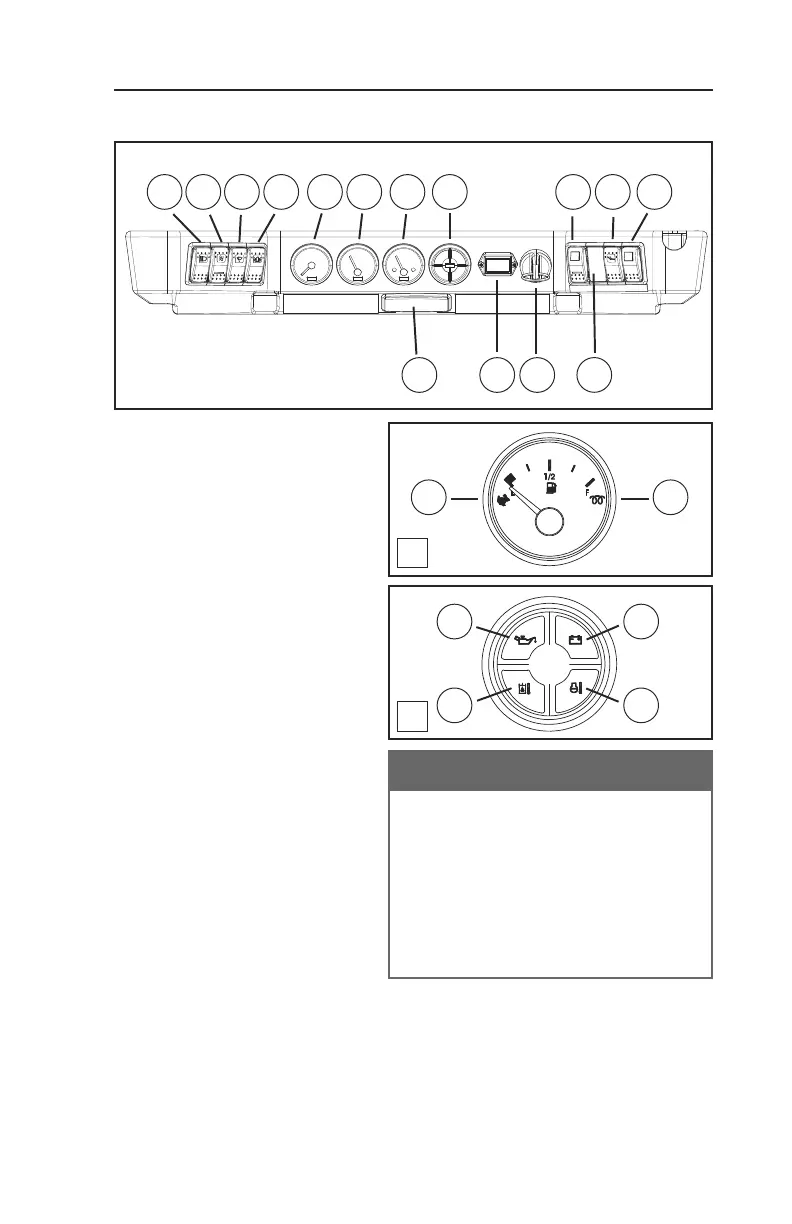

4.1 Display Elements
Learn the location and function of
these items prior to operation.
1 - Work lights
2 - Heater fan (optional)
3 - Front wiper (optional)
4 - Beacon light (optional)
9 - Auxiliary hydraulics
10 - Bucket positioning (optional)
11 - Power Q/A (optional)
12 - (not used)
5 - Tachometer
6 - Engine coolant temp. gauge
7 - Fuel gauge
8 - Warning Indicators (4-in-one)
13 - Dome light
14 - Hour meter
15 - Ignition switch
16 - High Range indicator
17 - Glow plug operation light
18 - Oil pressure light
19 - Battery voltage light
20 - Hydraulic oil temperature light
21 - Engine temperature light
If the battery voltage light (19) illuminates, drive the machine to a suitable location and
shut the engine off. Diagnose the problem and make any necessary repairs before resum-
ing operation.
The glow plug operation light (17) will illuminate only when the key switch is turned to
engine pre-heat, showing normal operation.
4 MACHINE DESCRIPTION / CONTROLS
1
2 3 4
7 8
14 15
9
12
13
5 6
18
20
19
16 17
7
8
21
Should the engine temperature gauge read
excessive temperatures, or should the oil
pressure or hydraulic oil temperature warning
lights illuminate during normal operation, shut
the machine down immediately (in a safe
location). Diagnose the problem and make
needed repairs before continuing to operate.
NOTICE
37
10 11
R160T / R190T US O&M
0404-490 2014-06
