Terex R190T Service Manual

7.21 Electrical System
The electrical systems in Terex Compact Track Loaders are equipped with fuses
that help to protect the electrical components from damage. They are found in the
fuse panel enclosure which is located on the left side of the engine compartment.
In the event of an electrical malfunction, check the fuse panel. Remove the fuse
related to the component that is not working properly and inspect it. If it appears
damaged in any way, replace it.
7 MAINTENANCE
78
40
50
50
20
30
20
50
80
3
5
5
20
5
10
30
25
10
10
15
5
10
10
20 A. RELAY
#12077866
35 A . RELAY
# 12177234
35 A . RELAY
# 12177234
10
5
PWR RELAY A
PWR RELAY B
GLOW PLUG
STARTER
PWR OUTLET
MAIN
MAIN
20 A. RELAY
#12077866
20 A. RELAY
#12077866
20 A. RELAY
#12077866
L . AUX HYD R . AUX HYD
SAFETY
STARTER
LIGHTS MAIN PWR B
IGNITION
SAFETY RLY
INJ. PUMP
TWO SPD
BKUP ALM
ALT
HRN-
LT
-SW
HEATER
AUX LOAD
BEACON
ALT. DIODE
AUX HYD
WIPER
MICRO SW

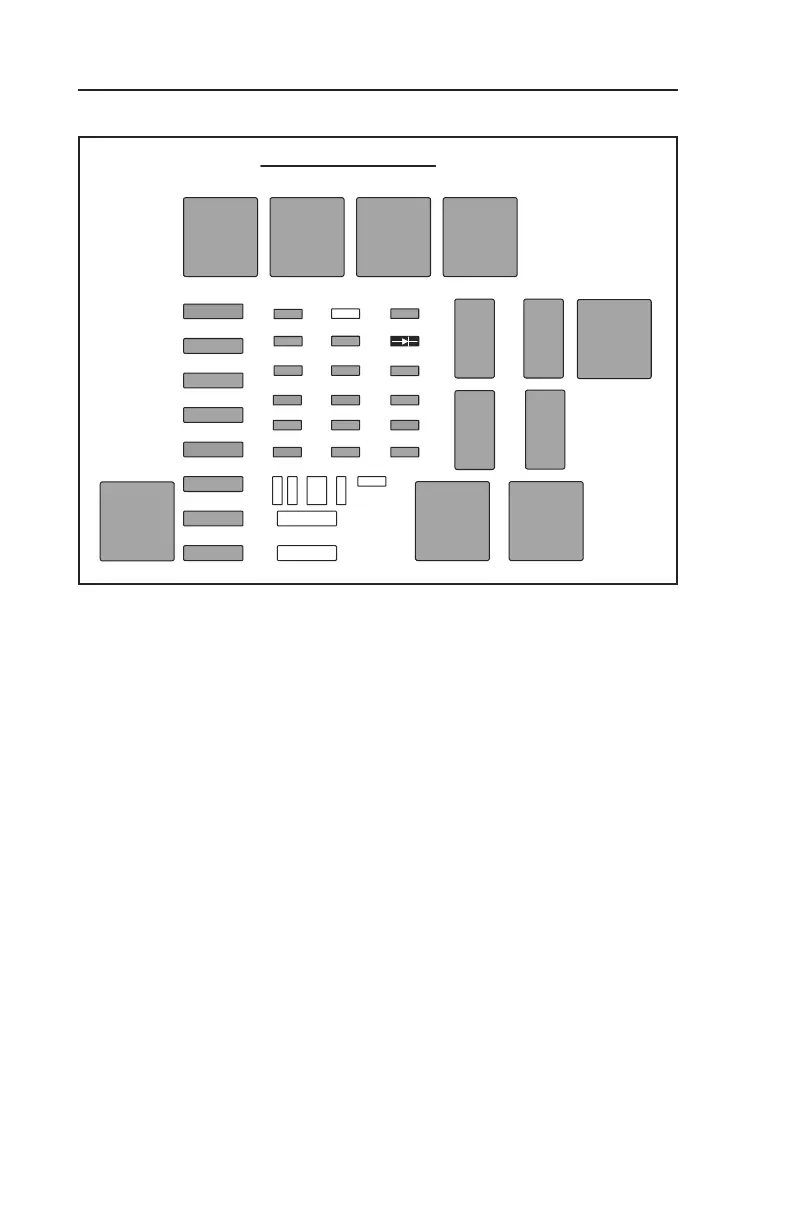

ELECTRICAL PANEL
PT-50/60
A/C
SELF LEV
40 A . RELAY
# 87417B
GLOW PLUG
40 A . RELAY
# 87417B
AUX LDR 1
40 A . RELAY
# 87417B
AUX LDR
2
40 A . R ELAY
# 87417B
AUX LDR 3
40 A . RELAY
# 87417B
AUX LDR
4
40 A . RELAY
# 87417B
MAIN PWR A
LIGHTS
FLOAT MAG
R160T / R190T US O&M
0404-490 2014-06
