• Supported Interfaces and Peripherals:
– 4x CAN Interfaces, full CAN‐FD support
– 1x USB3.1 Type C Interface, support DFP, DRP, UFP modes
– 4x USB2.0 Host Interfaces (2x for external cables)
– 1x Display Port, up to 4K resolution with MST support
– 1x FPD‐Link Panel Interface, Gen3
– 1x Audio Codec (PCM3168A), supports 2x Line Inputs, 4x Microphone Inputs, 2x Line Outputs, 6x
Headphone Outputs
– 1x FPD‐Link Radio Tuner Interface
– 2x PCIe Card Slot, 1x PCIe M.2 Slot (M‐Key), all Gen3
– 5x Gbit Ethernet, 1x RGMII/DP83867 + 1x QSGMII/VSC8514
– 6x Universal Asynchronous Receiver/Transmitter (UART) terminals via 2x USB FTDI (UART‐over‐USB)
– 2x I3C headers
– 1x ADC Header
• Expansion Connectors to support application specific add‐on boards
– MLB, MLBP Expansion Interface
– Image/Video Capture Expansion Interface
– Apple Authentication Module Interface
– General Expansion Interface
• REACH and RoHS Compliant
1.2 Thermal Compliance
There is elevated heat on the processor/heatsink, use caution particularly at elevated ambient temperatures!
Although the processor/heatsink is not a burn hazard, caution should be used when handling the EVM due to
increased heat in the area of the heatsink.

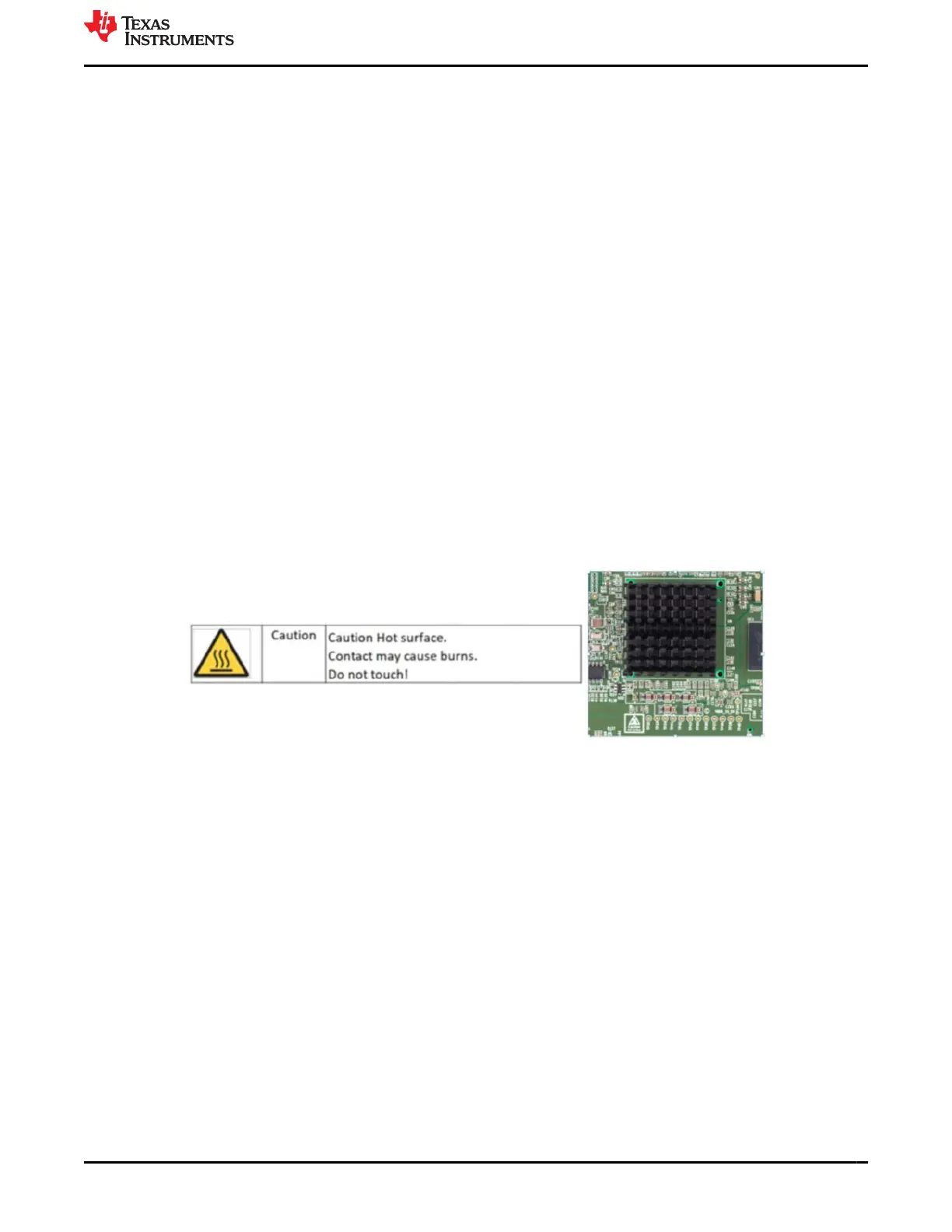

Figure 1-1. Thermal Caution
