Greensmaster Flex 18/21Groomer Page 8 – 8
Grooming Reel

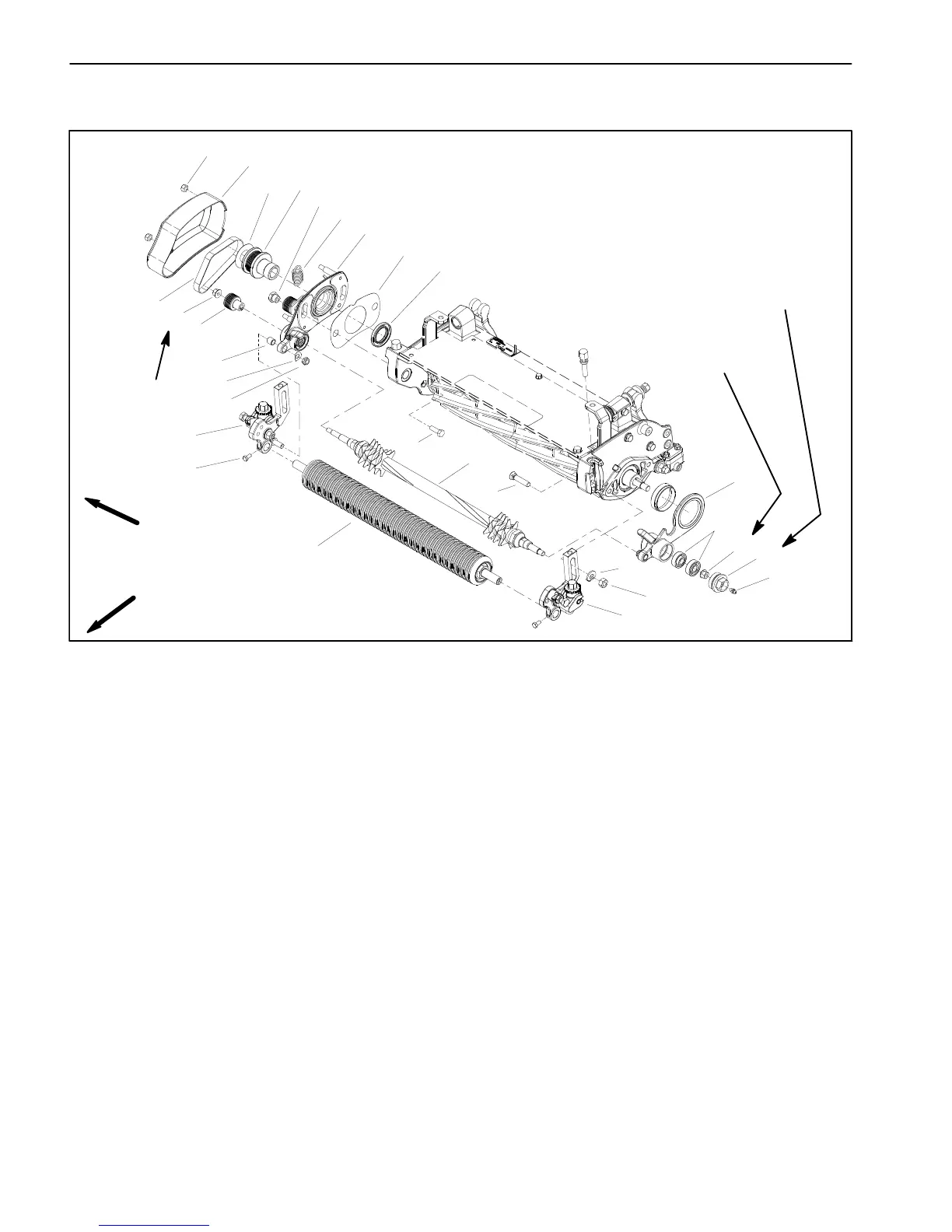

Figure 6
1. LH groomer arm
2. RH groomer arm
3. Non–drive side plate
4. Drive side plate
5. Bushing (2 used)
6. Spring washer (2 used)
7. Lock nut (2 used)
8. Grooming shaft assembly
9. Extended race bearing (2 used)
10. Front roller
11. Cap screw (2 used)
12. Decal
13. Shoulder nut (2 used)
14. Lock nut (2 used)
15. Driven pulley
16. Flange nut (2 used)
17. Drive pulley
18. Groomer belt
19. Groomer belt cover
20. Lock nut (2 used)
21. Cap plug
22. Grease fitting
23. Cap screw (2 used)
24. Groomer shim
25. Extension spring
26. Oil seal
27. Plow bolt (2 used)
28. HOC washer (2 used)
FRONT
RIGHT
17 to 21 ft–lb
(23 to 28 N–m)
3
2
4
1
7
6
8
5
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
16
27
28
17 to 21 ft–lb
(23 to 28 N–m)
60 to 80 ft–lb
(82 to 108 N–m)
Loctite #242
Removal
1. Park mower on a level surface. Make sure engine is
OFF. Remove high tension lead from the engine spark
plug.
2. Remove groomer belt cover and groomer belt from
right side of mower (see Groomer Drive Belt Replace-
ment in this section).
3. Loosen cap screws that secure front roller shaft to
RH and LH groomer arms (Figs. 7 and 8).
4. Remove lock nut (item 7) and spring washer (item 6)
that secure RH groomer arm lift rod to RH side plate (Fig.
7).
5. Remove lock nut (item 29), HOC washer (item 28)
and plow bolt (item 27) that secure RH groomer arm as-
sembly to RH side plate. Do not change height–of–cut
screw adjustment. Remove RH groomer arm assembly.
6. Pull front roller assembly out of LH groomer arm and
remove from mower.
NOTE: To prevent grooming shaft from turning when
removing driven pulley, use wrench on shaft flats to hold
shaft.
7. Remove the flange nut that secures driven pulley
(item 15) to grooming shaft. Remove driven pulley from
shaft.
