Greensmaster Flex 18/21Page 6 – 4Chassis and Controls
Service and Repairs
Handle Assembly

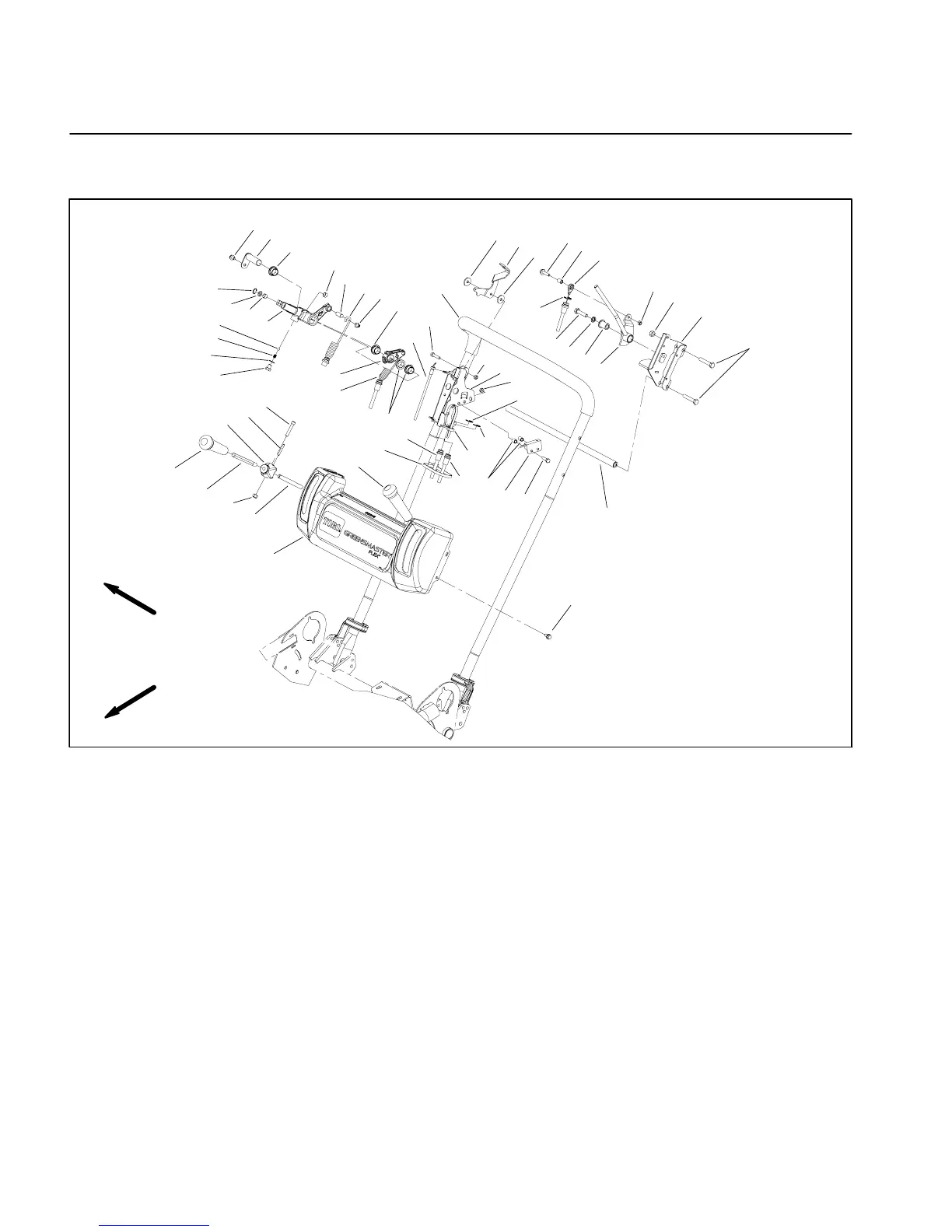

Figure 1
1. Handle
2. Brake lever
3. Brake bracket assembly
4. Console assembly
5. Detent ball
6. Retaining ring
7. Retaining ring
8. Interlock switch (proximity)
9. Handle rod
10. Traction cable
11. Lock washer (2 used)
12. Pin
13. Handle hub mount
14. Traction/reel drive knob (black)
15. Socket head screw
16. Roll pin
17. Traction control lever
18. Bushing (4 used)
19. Reel lever
20. Reel clutch cable
21. Wiper
22. Control bracket
23. Reel lever pin
24. Friction washer (2 used)
25. Dowel pin
26. Throttle cable
27. Cap screw
28. Cap screw (3 used)
29. Throttle lever
30. Support rod
31. Lock nut (4 used)
32. Spacer (3 used)
33. Retaining ring (3 used)
34. Brake cable
35. Lock nut
36. Brake knob (red)
37. Flange head screw
38. Lock nut (2 used)
39. Cap screw (4 used)
40. Cap screw
41. Detent spring
42. Washer head screw (5 used)
43. Cable tie (4 used)
44. Flange bushing
45. Bronze bushing (2 used)
FRONT
RIGHT
37
32
34
31
38
3
39
40
11
44
2
24
29
24
42
23
18
45
25
10
6
18
1
28
26
7
21
45
17
5
41
11
27
19
20
18
15
16
13
14
9
35
12
4
30
22
31
31
32
33
8
28
10
20
43
43
36
42
33
33
