Greensmaster Flex 18/21Page 6 – 8Chassis and Controls
Reel Control Cable Replacement
Removal
1. Park machine on a level surface. Make sure engine
is OFF. Remove spark plug wire from the engine spark
plug.
2. Assure reel drive lever is in the DISENGAGED posi-
tion. Remove cable ties that secure reel control cable.
3. Remove reel control cable from the gearbox as fol-
lows (Fig. 8):
A. Loosen front cable jam nut and lift cable free from
casting slot of gearbox.
B. Remove retaining ring that secures cable eyelet
to reel control bellcrank.
C. Remove reel drive cable from gearbox.
4. Remove reel control cable from the reel control lever
as follows (Fig. 9):
A. Remove retaining ring that secures the cable
housing to the control bracket.
B. Unhook reel control cable spring from reel control
lever.
5. Remove reel control cable from the machine.
Installation
1. Secure reel control cable to the reel control lever
(Fig. 9):
A. Hook cable spring to reel control lever.
B. Secure the cable housing to the control bracket
with retaining ring.
2. Route reel control cable to the gearbox. Install cable
to the gearbox as follows (Fig. 8):
A. Secure cable eyelet to the reel control bellcrank
with retaining ring.
B. Position reel cable to the casting slot on gearbox
with a washer and jam nut on each side of the slot.
3. Adjust reel control cable (see Operator’s Manual).
4. Secure reel control cable with cable ties.
5. Attach spark plug wire to spark plug.

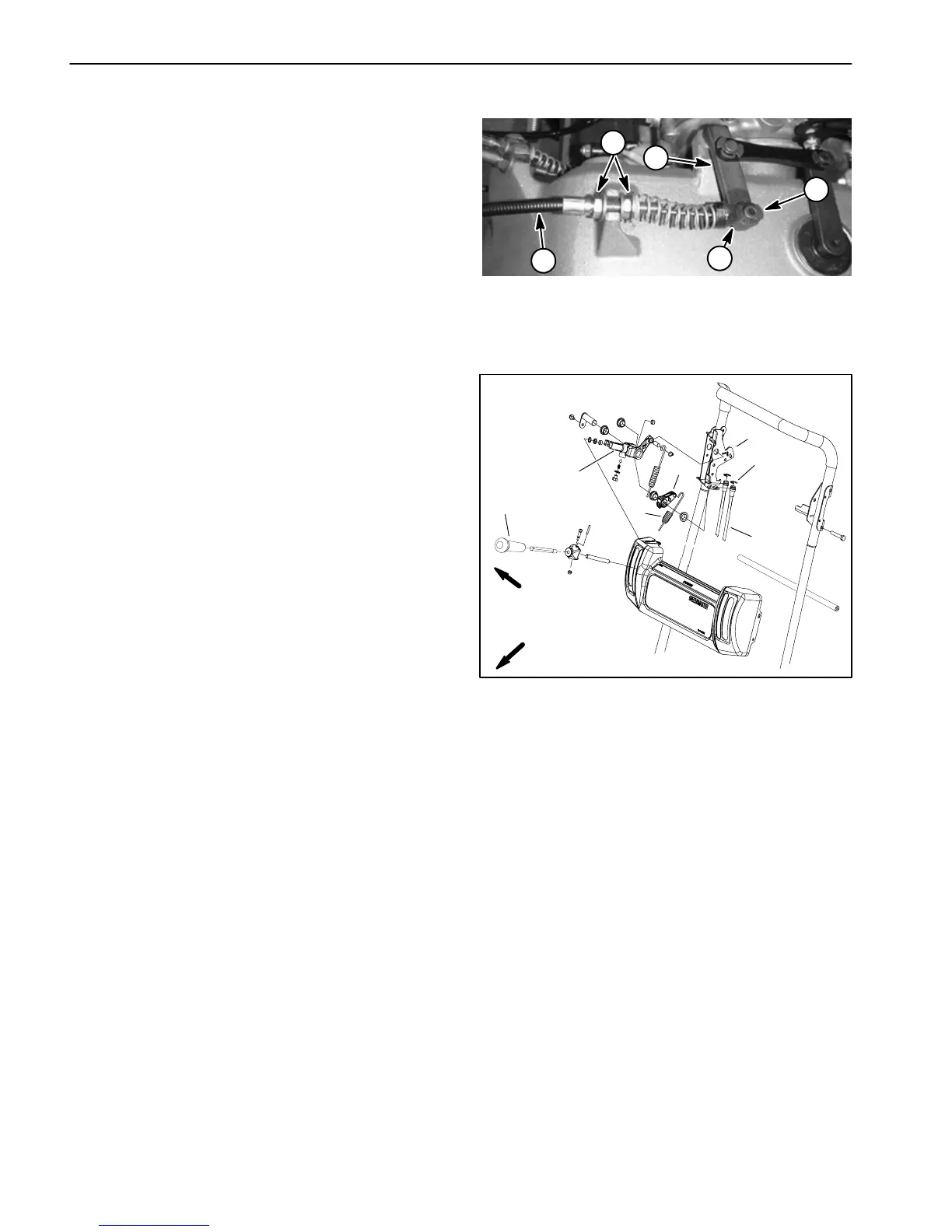

1. Reel control cable
2. Cable jam nuts
3. Cable eyelet
4. Reel control bellcrank
5. Retaining ring
Figure 8
4
1
5
3
2
1. Control bracket
2. Reel control lever
3. Reel control cable spring
4. Cable housing
5. Retaining ring
6. Traction lever assembly
7. Control knob
Figure 9
1
4
3
5
FRONT
RIGHT
2
6
7
