Greensmaster Flex 18/21Traction and Reel Drive System Page 4 – 12

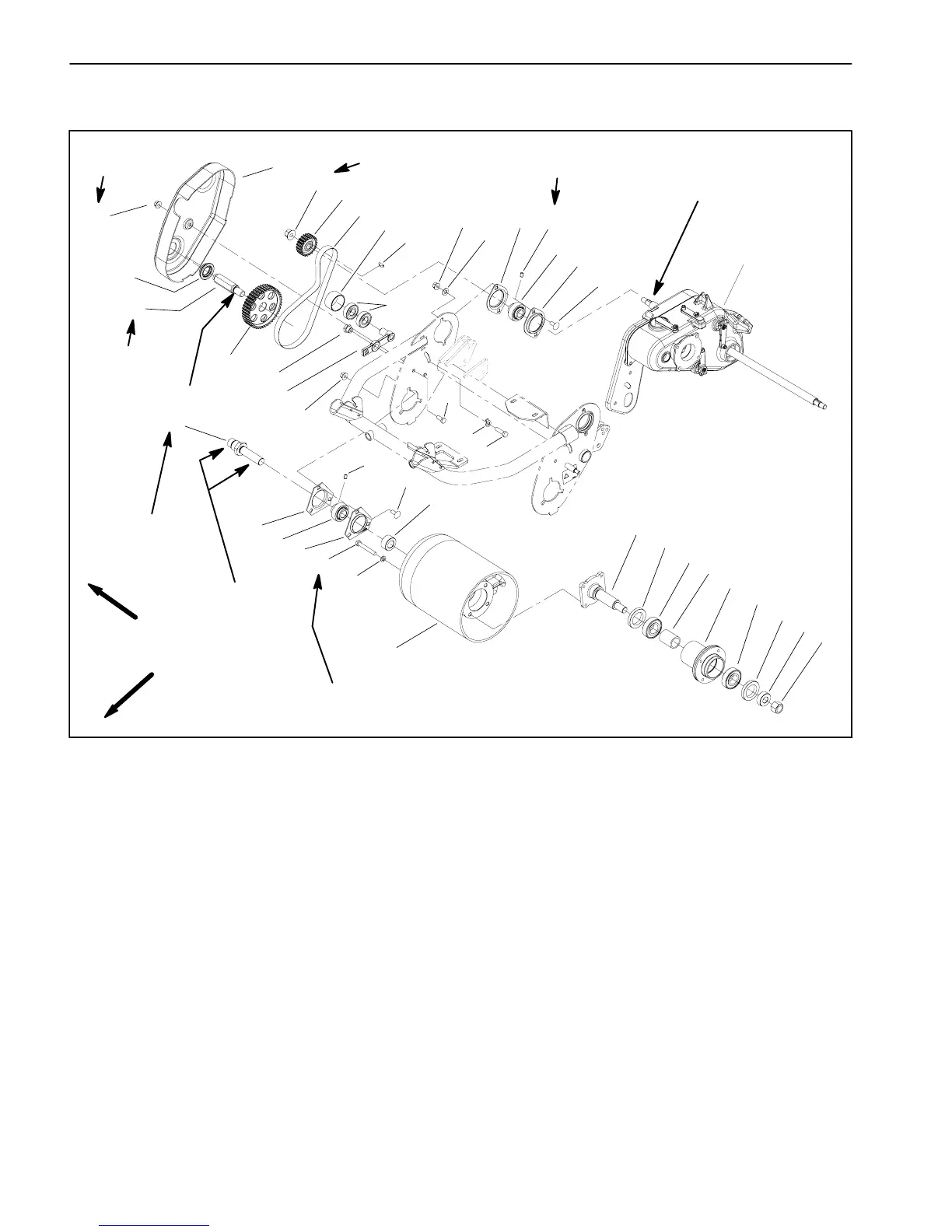

Traction Drum Assembly
1. Traction drum (RH shown)
2. Ball bearing (4 used)
3. Drum hub
4. Bearing (2 used)
5. Drum spindle
6. Seal ride spacer
7. Lock nut
8. Drum shaft (RH shown)
9. Bearing spacer
10. Flange (4 used)
11. Extended race bearing (4 used)
12. Drum drive idler (2 used)
13. Shoulder nut (2 used)
14. Drum shaft spacer (2 used)
15. Flat washer (4 used)
16. Traction belt (2 used)
17. Transport wheel shaft (RH shown)
18. Woodruff key (2 used)
19. Traction pulley (RH shown)
20. Cover seal
21. Belt cover (RH shown)
22. Cap screw (8 used)
23. Cap screw (2 used)
24. Flange nut (2 used)
25. Bearing flangette (4 used)
26. Traction drive pulley (2 used)
27. Pulley sleeve (2 used)
28. Seal (2 used)
29. Tab washer (2 used)
30. Cap screw (2 used)
31. Lock washer (8 used)
32. Carriage screw (10 used)
33. Flange nut (12 used)
34. Gearbox assembly
35. Set screw (4 used)
Figure 15
FRONT
RIGHT
100 in–lb
(11.3 N–m)
Antiseize Lubricant
40 to 50 ft–lb
(54 to 68 N–m)
Lubricant
Antiseize
Loctite #242
33
21
20
17
19
24
16
26
2
27
12
33
18
33
15
25
11
25
32
5
28
4
9
3
4
28
6
7
22
31
1
10
11
10
8
32
23
29
30
14
13
34
35
35
40 to 50 in–lb
(4.5 to 5.7 N–m)
100 in–lb
(11.3 N–m)
65 to 75 ft–lb
(88 to 102 N–m)
45 to 55 ft–lb
(61 to 75 N–m)
NOTE: Components shown in the Figure 15 are from
the right side of the machine.
