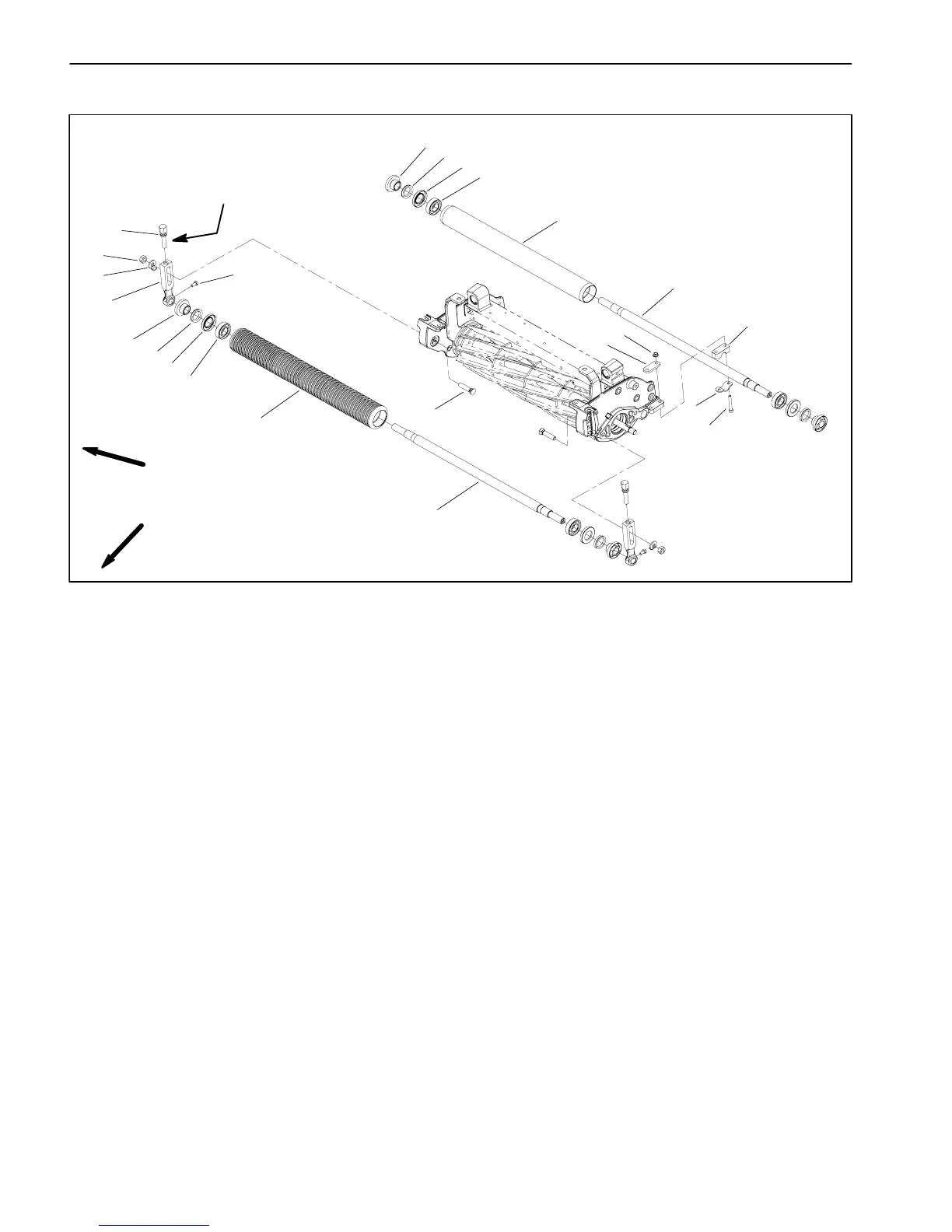

Greensmaster Flex 18/21Page 7 – 16Cutting Unit
Rollers
1. Rear roller
2. Roller shim (2 used)
3. Flange nut (4 used)
4. Shaft retainer (2 used)
5. Socket head screw (4 used)
6. Height–of–cut screw (2 used)
7. Lock nut (2 used)
8. Height–of–cut washer (2 used)
9. Height–of–cut arm (2 used)
10. Roller spacer (2 used)
11. Plow bolt (2 used)
12. Cap screw (2 used)
13. Front roller
14. Bearing lock (2 used per roller)
15. V–ring (2 used per roller)
16. Seal (2 used per roller)
17. Bearing (2 used per roller)
18. Roller shaft
Figure 22
FRONT
RIGHT
1
10
3
2
4
5
11
6
7
8
9
12
13
14
15
16
17
18
18
17
16
15
14
Antiseize
Lubricant
